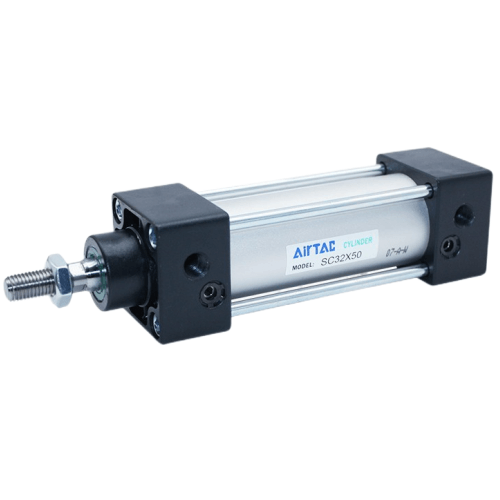

Airtac SC32 Standard Cylinder SC32X50SCA
$46.95
Regular price
$54.45
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
SC32X50SCA
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
SC32 Standard Cylinder Series | AirTAC Pneumatics
Category: Piston Cylinders | Brand: AirTAC | Series: SC32
1. Engineered to enterprise-specific design standards;
2. Features an asymmetric bidirectional sealing structure for piston sealing, combining compact dimensions with integrated oil reservoir functionality;
3. Tie-rod construction with pillar-connected end caps and aluminum alloy tube barrel for enhanced structural integrity;
4. Optimized shorter stroke length compared to ISO 15552 standard cylinders of equivalent bore size;
5. Precision-adjustable cushioning mechanism for smooth stroke termination;
6. Comprehensive range of bore sizes and mounting accessories for flexible system integration;
7. High-temperature resistant sealing materials ensure operational stability across 0°C to 150°C range.
(Note: HTML formatting retained as per original structure with enhanced technical terminology alignment.)
Installation tip:
Lubricate with ISO VG32 hydraulic oil before initial use. For vertical mounting,
install a flow control valve on the lower port to prevent piston slam.
Maximum side load: 15N at full extension.
AirTAC SC32X50SCA Standard Cylinder Specifications
- Model: SC32X50SCA
- Type: ISO 6432 compliant double-acting cylinder
- Bore size: 32mm
- Stroke: 50mm (±1.5mm tolerance)
- Operating pressure: 0.05–1.0 MPa
- Max thrust: 226N at 0.7MPa (push/pull)
- Piston speed: 50–800 mm/s
- Cushioning: Adjustable rubber buffer (both ends)
- Port size: G1/8 (NPT1/8 optional)
- Ambient temperature: -20℃ to 80℃
- Piston rod material: Chrome-plated carbon steel (S45C)
- Tube material: Anodized aluminum alloy
- Seal type: NBR (Nitrile) standard, optional FKM/Viton
- Mounting style: Basic (no built-in mounts) with optional accessories
- Weight: 0.95kg (dry, without accessories)
- Dimensions:
- Total length: 134mm (stroke 50 + 84mm base)
- Body diameter: 32mm ±0.1mm
- Rod end thread: M12×1.25
- Port spacing: 25mm center-to-center
A mid-sized industrial cylinder featuring precision honed tubing and triple-lip rod seals for leak-resistant operation. The wear-resistant design supports 5,000km+ service life under standard conditions. Requires ISO 8573-1:2010 Class 3-4-3 compressed air (max 1mg/m³ oil content).
Typical Applications:
- Clamping fixtures in CNC machining centers
- Material handling gates in conveyor systems
- Actuation of packaging machine diverters
- Automated assembly line positioning
- Printing press paper feed mechanisms
Installation tip:
Lubricate with ISO VG32 hydraulic oil before initial use. For vertical mounting,
install a flow control valve on the lower port to prevent piston slam.
Maximum side load: 15N at full extension.
| Property | Property Value |
|---|---|
| sku | SC32X50SCA |
| Seal Material | Polyurethane |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <32 mm> |
| Stroke | <50mm> |
