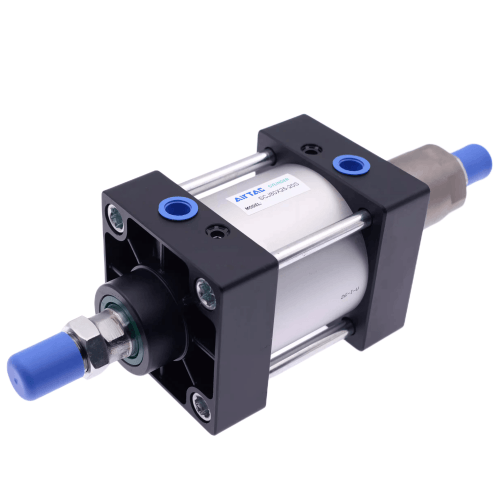

Airtac SCJ80 Standard Cylinder SCJ80X450-50S
2. Features profiled bidirectional sealing structure for piston, offering compact dimensions with integrated oil reservoir functionality;
3. Tie-rod construction with pillar-connected front/rear covers and aluminum tube barrel for enhanced structural reliability;
4. Compact axial length compared to ISO 15552 standard cylinders of equivalent bore size;
5. Precision-adjustable cushioned mechanism ensures smooth end-stroke deceleration;
6. Multiple bore sizes and configurable mounting accessories available for flexible system integration;
7. High-temperature resistant seal materials enable operational range of 0~150°C.
Category: Standard Cylinders | Brand: AirTAC | Series: SCJ80
AirTAC SCJ80X450-50S Standard Cylinder Specifications
- Model: SCJ80X450-50S
- Bore size: 80 mm
- Stroke: 450 mm
- Mounting type: Front flange (MF1) + Rear pivot (MP4)
- Cushioning: Adjustable rubber buffer + air cushion
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃
- Port size: Rc1/4 (NPT1/4 optional)
- Piston rod material: Hard chrome-plated steel
- Tube material: Aluminum alloy (anodized)
- Seal material: NBR (nitrile rubber)
- Weight: 5.8 kg (without accessories)
- Dimensions:
- Extended length: 805±1.5 mm
- Retracted length: 355±1.5 mm
- Body diameter: 96 mm
- Mounting hole spacing: 120×120 mm
- Max theoretical thrust:
- At 0.5 MPa: 2513 N (push), 2355 N (pull)
- At 0.7 MPa: 3518 N (push), 3297 N (pull)
- ISO standard: Complies with ISO 6431 (VDMA 24562)
High-precision industrial cylinder with double-acting operation, designed for heavy-duty applications requiring long stroke precision. Features wear-resistant construction with dual cushioning system for smooth end-of-stroke deceleration. Integrated mounting options enable flexible installation in complex mechanical systems.
- Automated palletizing systems
- Injection molding machine ejectors
- Steel mill roller positioning
- Automotive assembly line clamping
- Paper processing equipment
Installation notes:
- Use guide brackets for strokes over 300mm to prevent side load
- Lubricate with ISO VG32 hydraulic oil if using non-lubricated air
- Allow 20mm clearance around cylinder for heat dissipation
| Property | Property Value |
|---|---|
| sku | SCJ80X450-50S |
| Adjustable Stroke | <50mm> |
| Seal Material | Polyurethane |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT3/8 |
| Magnet | S-Magnetic |
| Bore Diameter | 80 mm |
| Stroke | 450mm |
