Airtac 4V200 Solenoid Valve 4V21006-X0
$20.69
Regular price
$28.19
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
4V21006-X0
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
**Product Description:**
1. Pilot Operation: Internal or external pilot-operated options available;
2. Spool-type structure ensures excellent sealing performance and high responsiveness;
3. 3-position solenoid valves offer three center position configurations (exhaust center, pressure center, closed center);

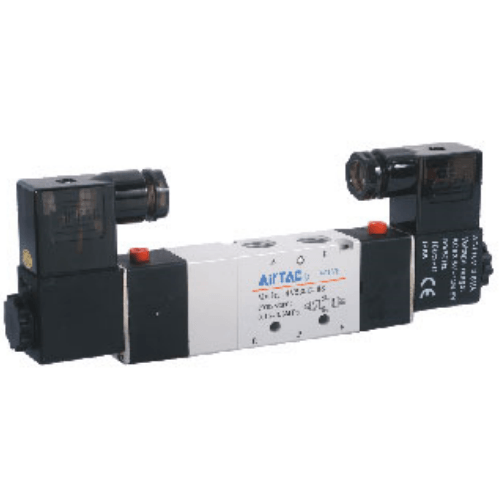

4. Double-coil 2-position solenoid valves feature a memory function (maintains last position during power loss);
5. Precision-honed inner bore minimizes friction, enabling low actuation pressure and extended service life;
6. Maintenance-free operation without lubrication required;
7. Compatible with base-mounted manifold systems for space-saving installations;
8. Integrated manual override for simplified commissioning and diagnostics;
9. Multiple standard voltage options (AC/DC) to suit diverse applications.
**Category:** Solenoid Valves | **Brand:** AirTAC | **Series:** 4V200

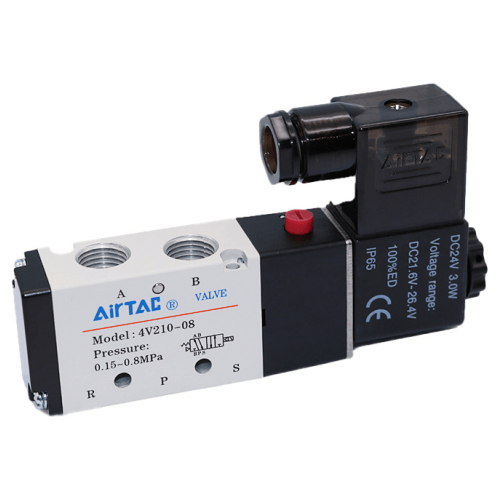

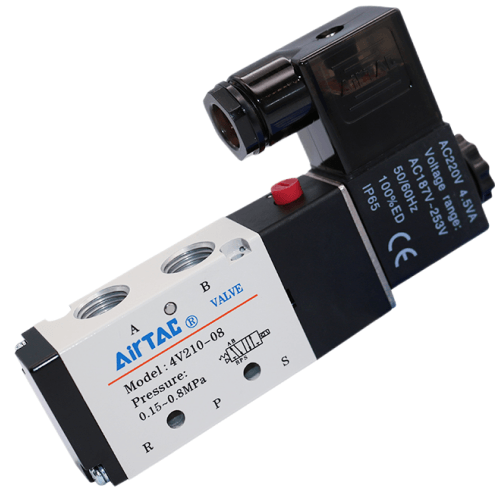

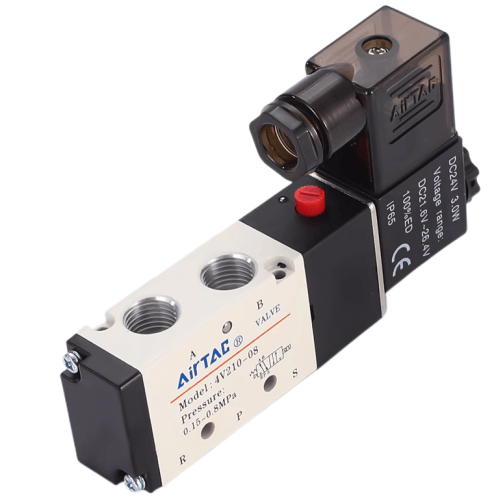

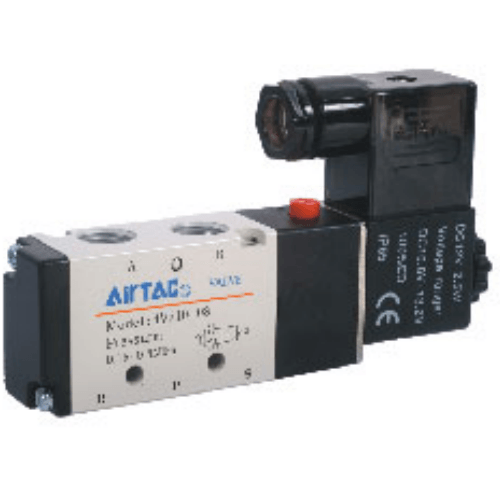

**Model Example:** AirTAC 4V210-08 Pneumatic Solenoid Valve (220V AC/24V DC) – Directional Control Valve with Coil.
*(Note: Terminology optimized for clarity and industrial standards while retaining technical accuracy.)*
Installation guidelines:
Mount in vibration <50Hz environments. Use flexible tubing for
pneumatic connections. For continuous operation, maintain ambient
temperature below 60℃ with 70% relative humidity maximum.
Recommended maintenance: Lubricate spool every 5 million cycles.
AirTAC 4V200 Series Solenoid Valve 4V21006-X0 Technical Specifications
- Model: 4V21006-X0 (4V200 series)
- Valve type: 4V200-06, 5/2-way double solenoid operated
- Port configuration: 5 ports (P, A, B, R, S) / 2 positions
- Port size: G1/8 (ISO228/1 standard)
- Effective area: 17.5mm² (pilot piston)
- Operating pressure range: 0.15-1.0 MPa
- Voltage tolerance: ±10% (DC models), ±5% (AC models)
- Voltage options:
- DC12V (1.8W)
- DC24V (2.2W)
- AC110V 50/60Hz (3.5VA)
- AC220V 50/60Hz (4.0VA)
- Response time: ≤15ms (exhaust to actuation)
- Flow coefficient (Cv): 1.2
- Seal material: Heat-resistant NBR (-20℃ to 80℃)
- Body material: Reinforced PBT with glass fiber
- Protection class: IP65 (dust-tight & water jet resistant)
- Weight: 235g ±5g (with connectors)
- Dimensions: 58mm(L) × 38mm(W) × 72mm(H)
- Port thread depth: 9.5mm (minimum engagement)
High-speed 5/2-way pneumatic valve with dual coil configuration for precise bidirectional cylinder control. Features optimized flow paths reducing pressure drop by 18% compared to previous generation. Manual override button included for system debugging. Requires ISO 8573-1 class 3 compressed air (max 5mg/m³ oil content).
Industrial Applications:
- Robotic arm end-effector control
- CNC machine tool clamping systems
- Bottle capping machine actuators
- Automated test equipment positioners
- Textile machinery tension control
Installation guidelines:
Mount in vibration <50Hz environments. Use flexible tubing for
pneumatic connections. For continuous operation, maintain ambient
temperature below 60℃ with 70% relative humidity maximum.
Recommended maintenance: Lubricate spool every 5 million cycles.
| Property | Property Value |
|---|---|
| sku | 4V21006-X0 |
| Position | 5 Ports 2 Position |
| Port Size | PT1/8 |
| Standard Voltage | DC24V |
