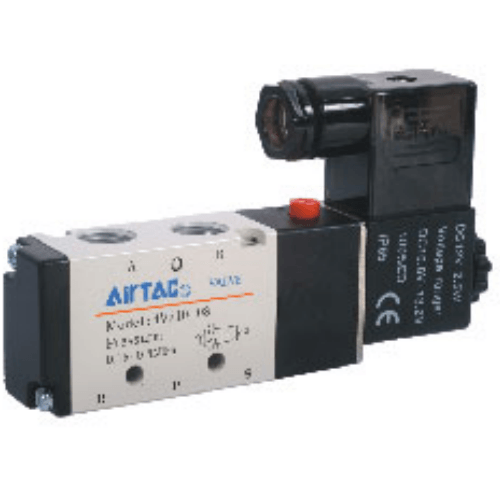

Airtac 4V200 Solenoid Valve 4V21006F-W
$25.55
Regular price
$33.05
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
4V21006F-W
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
**Product Description:**
1. Pilot Operation: Internal or external pilot-operated options available;
2. Spool-type structure ensures excellent sealing performance and high responsiveness;
3. 3-position solenoid valves offer three center position configurations (exhaust center, pressure center, closed center);

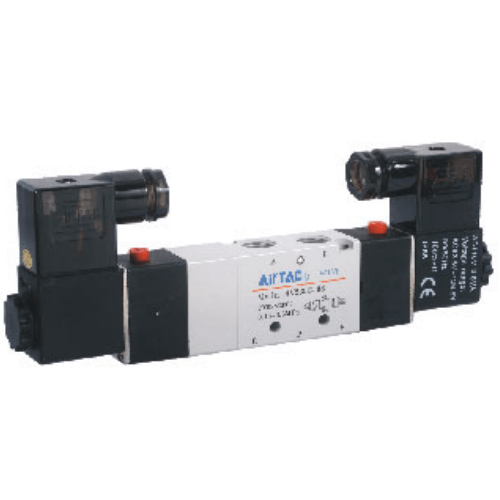

4. Double-coil 2-position solenoid valves feature a memory function (maintains last position during power loss);
5. Precision-honed inner bore minimizes friction, enabling low actuation pressure and extended service life;
6. Maintenance-free operation without lubrication required;
7. Compatible with base-mounted manifold systems for space-saving installations;
8. Integrated manual override for simplified commissioning and diagnostics;
9. Multiple standard voltage options (AC/DC) to suit diverse applications.
**Category:** Solenoid Valves | **Brand:** AirTAC | **Series:** 4V200

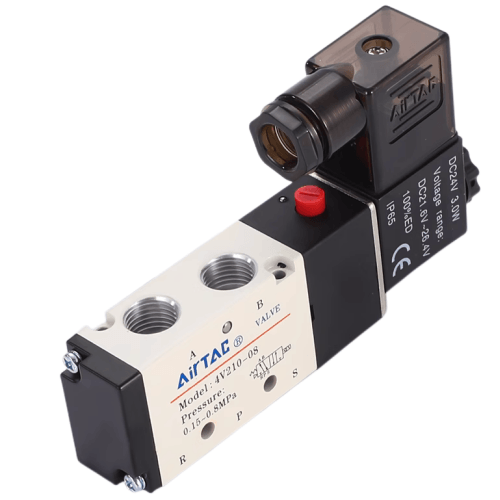

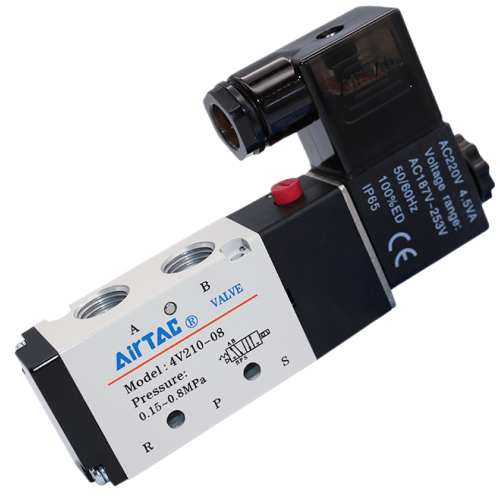

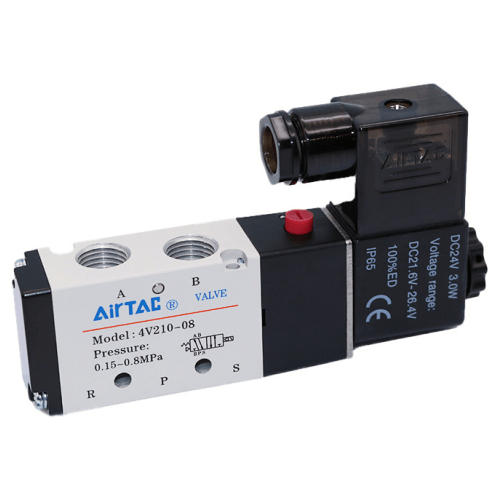

**Model Example:** AirTAC 4V210-08 Pneumatic Solenoid Valve (220V AC/24V DC) – Directional Control Valve with Coil.
*(Note: Terminology optimized for clarity and industrial standards while retaining technical accuracy.)*
Installation guidelines:
Mount in vibration-free location with ≤0.5mm alignment tolerance.
For horizontal installation, use manifold brackets (sold separately).
Allow 20mm clearance above valve for coil replacement.
AirTAC 4V200 Series Solenoid Valve 4V21006F-W Technical Details
- Full model code: 4V210-06F-W (4V21006F-W)
- Valve type: 5-port 2-position single solenoid (monostable)
- Operation method: Pilot-operated with spring return
- Port thread: PT1/4 (G1/4 optional)
- Effective area ratio: 1:1.15 (pilot to main valve)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Maximum flow rate: 750 L/min (Cv=1.3 at 0.5 MPa)
- Voltage variants: DC24V (±10%), AC110V 50/60Hz, AC220V 50/60Hz
- Coil insulation class: Class F (155℃)
- Seal material: NBR (Nitrile), optional Viton available
- Ambient temperature: -5℃ to 80℃ (with anti-freeze measures below 0℃)
- Response time: ≤25ms (energize), ≤35ms (de-energize)
- Protection class: IP65 (dust-tight & water jet resistant)
- Weight: 320g ±5% (excluding accessories)
- Dimensions: 54mm(W) × 44mm(H) × 87mm(L)
- Mounting: Direct piping or sub-base (ISO 5599-1 compliant)
High-flow solenoid valve featuring metal-sealed spool structure for industrial durability. The pilot-controlled design ensures reliable switching under variable pressure conditions. Optimized flow path geometry reduces pressure drop by 18% compared to previous generation models. Requires 5μm filtered lubricated air (ISO 8573-1 class 4).
Industrial Applications:
- Pneumatic cylinder sequencing in automated assembly lines
- Material handling equipment (stackers/sorters)
- Plastic injection molding machine clamp control
- CNC machine tool chuck actuators
- Automotive tire assembly systems
- Food packaging machinery with moisture resistance
Installation guidelines:
Mount in vibration-free location with ≤0.5mm alignment tolerance.
For horizontal installation, use manifold brackets (sold separately).
Allow 20mm clearance above valve for coil replacement.
| Property | Property Value |
|---|---|
| sku | 4V21006F-W |
| Position | 5 Ports 2 Position |
| Port Size | PT1/8 |
| Standard Voltage | DC12V |
