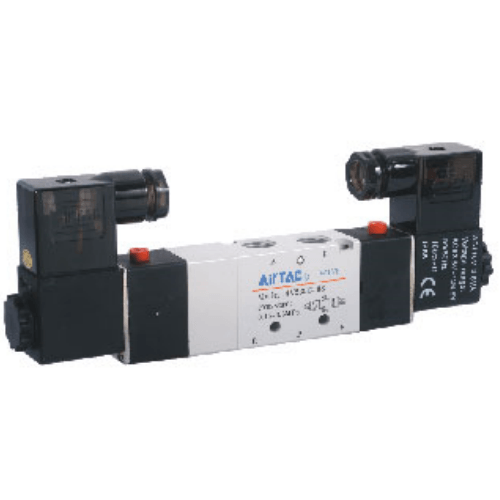

Airtac 4V200 Solenoid Valve 4V230C08E-W
$51.14
Regular price
$58.64
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
4V230C08E-W
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
**Product Description:**
1. Pilot Operation: Internal or external pilot-operated options available;
2. Spool-type structure ensures excellent sealing performance and high responsiveness;
3. 3-position solenoid valves offer three center position configurations (exhaust center, pressure center, closed center);
4. Double-coil 2-position solenoid valves feature a memory function (maintains last position during power loss);
5. Precision-honed inner bore minimizes friction, enabling low actuation pressure and extended service life;
6. Maintenance-free operation without lubrication required;
7. Compatible with base-mounted manifold systems for space-saving installations;
8. Integrated manual override for simplified commissioning and diagnostics;
9. Multiple standard voltage options (AC/DC) to suit diverse applications.
**Category:** Solenoid Valves | **Brand:** AirTAC | **Series:** 4V200

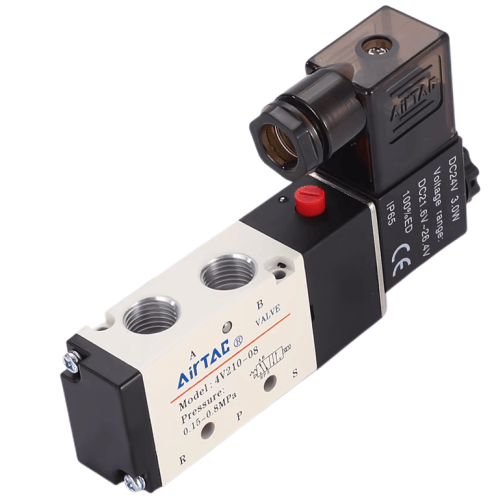

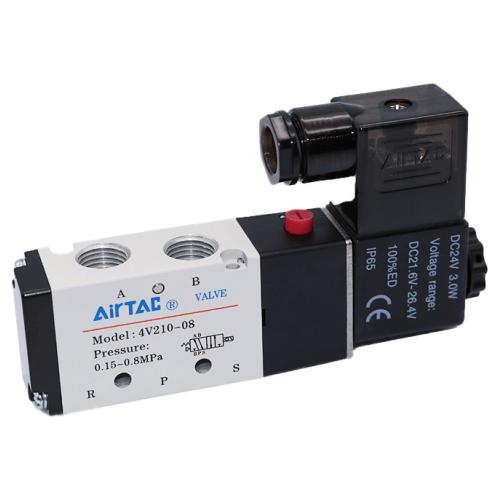

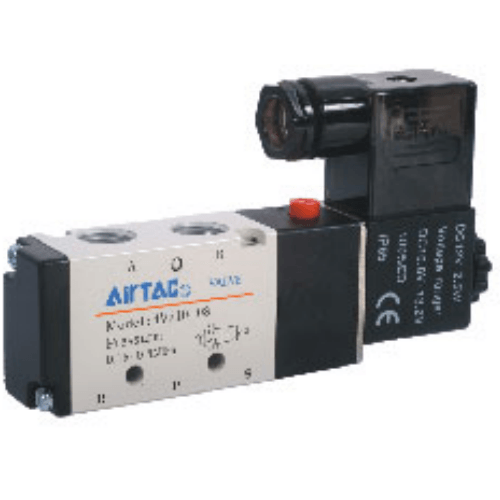

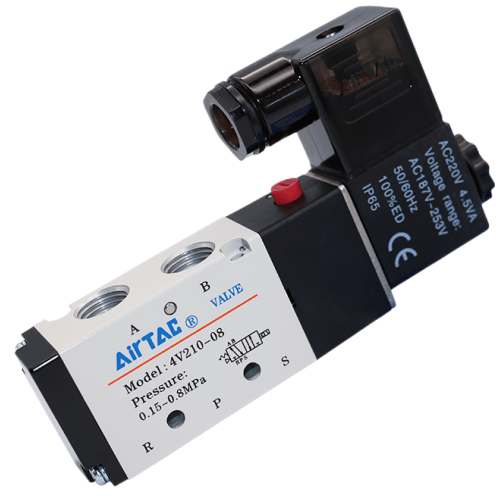

**Model Example:** AirTAC 4V210-08 Pneumatic Solenoid Valve (220V AC/24V DC) – Directional Control Valve with Coil.
*(Note: Terminology optimized for clarity and industrial standards while retaining technical accuracy.)*
Operational guidance:
Use with 5μm filtration (40μm for exhaust). Maintain ambient temperature below 55℃.
For vertical mounting, ensure exhaust ports face downward to prevent condensate ingress.
Lubrication: ISO VG32 turbine oil recommended for extended seal life.
AirTAC 4V230C08E-W Solenoid Valve Technical Specifications
- Model: 4V230C08E-W (Part of 4V200 series)
- Valve type: 5/2-way, double solenoid (with manual override)
- Port size: G1/8 (ISO228 standard)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow capacity: 750 l/min (ANR) at 0.5 MPa
- Response time: ≤30ms (exhaust to signal)
- Seal material: Heat-resistant NBR (Nitrile) -70℃ to 120℃
- Body material: Reinforced PBT resin with glass fiber
- Protection class: IP67 (dustproof & temporary immersion)
- Weight: 520g ±5% (with coil)
- Dimensions: 98mm(L) × 54mm(W) × 67mm(H)
- Mounting: ISO 5599-1 standard subplate
- Coil connection: DIN43650 Form A connector
High-flow directional control valve with dual redundant seals, designed for harsh industrial environments. Features gold-plated pins for corrosion resistance and integrated surge suppression. The W-suffix model includes a mechanical lockable override for manual actuation during maintenance or power outages.
Industrial Applications:
- Pneumatic pressurization systems in automotive assembly lines
- Plastic injection molding machine clamp controls
- Robotic arm end-effector tool changers
- Food packaging equipment with CIP washdown requirements
- Battery production line vacuum handling systems
Operational guidance:
Use with 5μm filtration (40μm for exhaust). Maintain ambient temperature below 55℃.
For vertical mounting, ensure exhaust ports face downward to prevent condensate ingress.
Lubrication: ISO VG32 turbine oil recommended for extended seal life.
| Property | Property Value |
|---|---|
| sku | 4V230C08E-W |
| Position | 5-port 3-position |
| Port Size | PT1/4 |
| Standard Voltage | AC24V |
