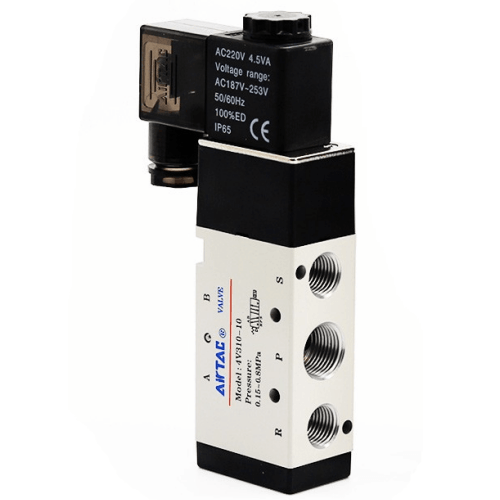

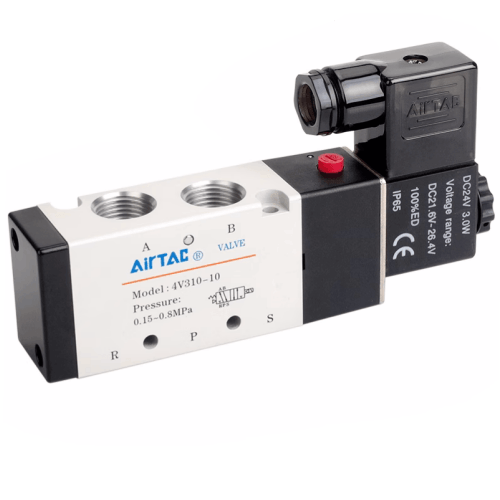

Airtac 4V300 Solenoid Valve 4V31008-X0
2. Spool-type structure ensures excellent sealing performance and responsive actuation;
3. Three-position valves offer three center position configurations (exhaust-closed/exhaust-open/pressure-center);
4. Dual-solenoid two-position valves feature memory function for sustained state retention;
5. Specially honed inner bore minimizes friction resistance, enables low operating pressure, and extends service life;
6. Maintenance-free lubrication system eliminates external lubrication requirements;
7. Manifold-compatible design allows modular assembly, optimizing space utilization;
8. Integrated manual override facilitates installation and commissioning adjustments;
9. Multiple standard voltage options available for flexible integration.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V300
AirTAC 4V300 Series Solenoid Valve 4V31008-X0 Technical Specifications
- Model: 4V31008-X0

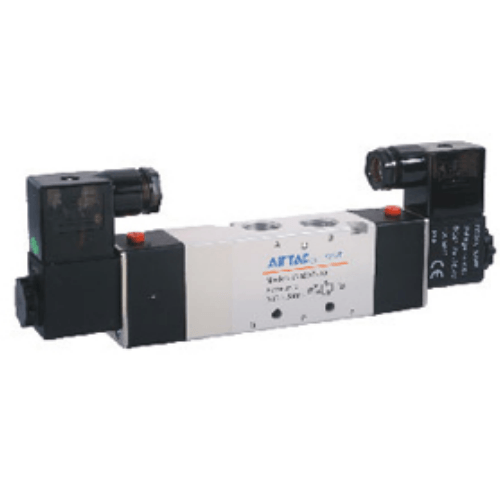

- Type: 5/2-way double solenoid (dual coil)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (±10% 50/60Hz), AC220V (±10% 50/60Hz)
- Weight: 620g ±5% (with connectors)
- Dimensions: 77mm(L) × 47mm(W) × 85mm(H)
- Flow coefficient (Cv): 2.3 (at 0.5 MPa)
- Seal material: Heat-resistant NBR (Nitrile) rubber
- Temperature range: -5℃ to 80℃ (non-freezing)
- Power consumption: 3.5W (AC), 3.8W (DC)
- Response time: ≤20ms (exhaust to atmosphere)
- Protection rating: IP67 (dust/water resistant)
- Port thread depth: 12mm (minimum engagement)
High-flow directional control valve with dual manual override and LED status indicators. Features brass body construction with hard-anodized aluminum solenoid housing for EMI protection. Designed for rapid cycling (≥50 million operations) with built-in surge suppression. Requires ISO 8573-1:2010 Class 3 compressed air (max 50mg/m³ oil content).
- Automated assembly line actuators
- Plastic injection molding machines
- Textile machinery pneumatic controls
- CNC tool changers and clamps
- Material handling systems (vacuum/pressure switching)
Installation protocol:
Mount with M4 screws (torque ≤1.2N·m). Maintain ≥30mm clearance below valve for exhaust port maintenance.
Use AirTAC VG-46 hydraulic oil for lubrication (annual maintenance). Avoid horizontal mounting angles exceeding 15°.
| Property | Property Value |
|---|---|
| sku | 4V31008-X0 |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
| Standard Voltage | DC24V |
