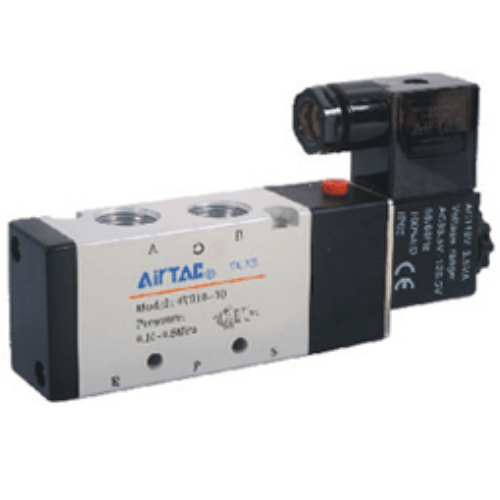

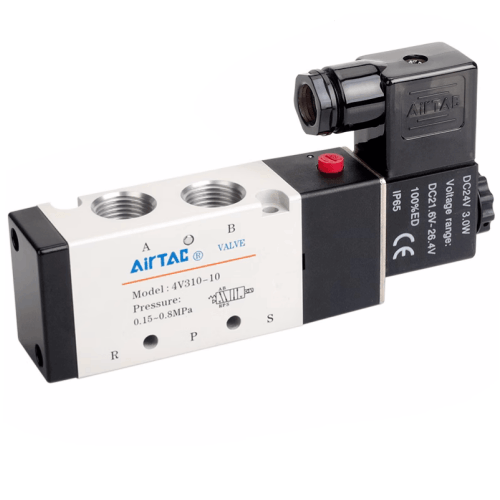

Airtac 4V300 Solenoid Valve 4V31008A-AM
2. Spool-type structure ensures excellent sealing performance and responsive actuation;
3. Three-position valves offer three center position configurations (exhaust-closed/exhaust-open/pressure-center);
4. Dual-solenoid two-position valves feature memory function for sustained state retention;
5. Specially honed inner bore minimizes friction resistance, enables low operating pressure, and extends service life;
6. Maintenance-free lubrication system eliminates external lubrication requirements;
7. Manifold-compatible design allows modular assembly, optimizing space utilization;
8. Integrated manual override facilitates installation and commissioning adjustments;
9. Multiple standard voltage options available for flexible integration.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V300
AirTAC 4V300 Solenoid Valve 4V31008A-AM Technical Specifications
- Model: 4V31008A-AM
- Type: 5/2-way single solenoid valve (spring return)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage options: DC12V, DC24V, AC110V 50/60Hz, AC220V 50/60Hz
- Flow coefficient (Cv): 1.8
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Seal material: Heat-resistant NBR (-5℃ to 80℃)
- Ambient temperature: -5℃ to 60℃ (non-freezing)
- Weight: 450g ±5% (with connector)
- Dimensions: 120mm(L) × 60mm(W) × 70mm(H)
- Port thread depth: 12mm (4.5 thread turns)
- Power consumption: 1.6W (DC), 3.2VA (AC)
- Protection rating: IP67 (dust/water resistant)
- Service life: ≥10 million cycles (at rated conditions)
High-flow 5-port pneumatic valve with optimized spool structure for rapid switching. Features corrosion-resistant aluminum alloy body with hard anodized finish. Integrated LED manual override and surge protection circuitry. Compatible with ISO 15407-1 standards. Requires 5μm filtered/dried compressed air (lubricated or non-lubricated).
- Automated assembly line cylinder control
- Packaging machine clamp sequencing
- Textile machinery air circuit switching
- Plastic injection molding ejector systems
- Automotive tire assembly fixtures
Installation guidelines:
Mount in vibration-free location with 0.5-1Nm tightening torque for ports.
Maintain ≥15mm clearance above coil for heat dissipation.
Use locknuts for vertical piping. Test with 0.3MPa minimum during commissioning.
| Property | Property Value |
|---|---|
| sku | 4V31008A-AM |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
| Standard Voltage | AC220V |
