Description

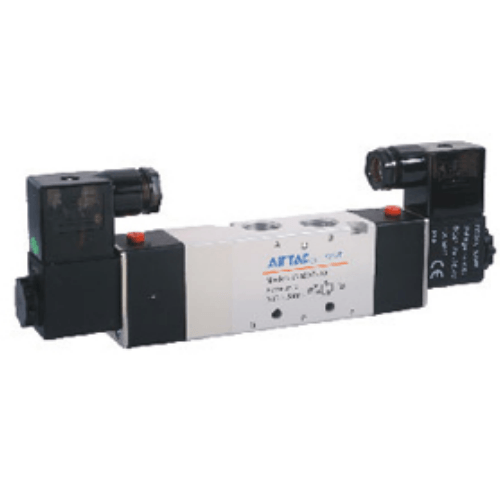

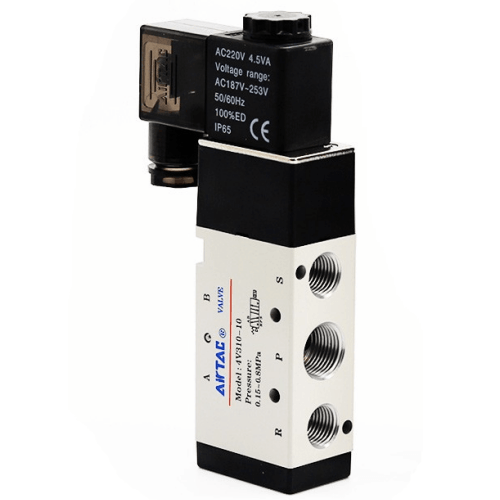

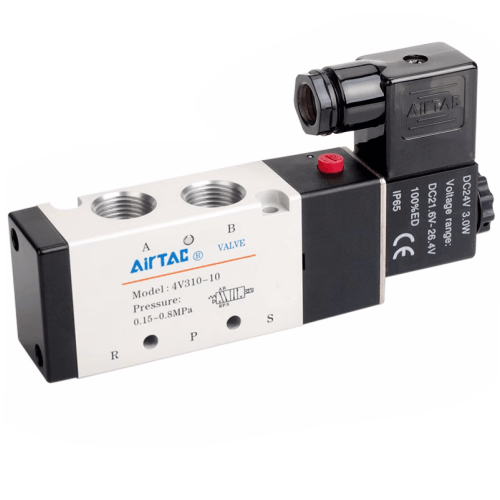

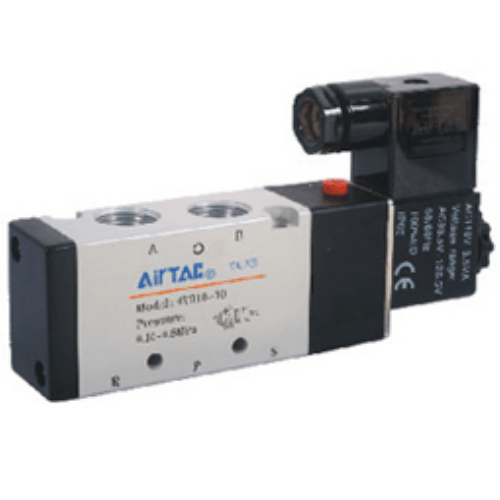

Product Description of AirTAC 4V300 Solenoid Valve:
1. Pilot type: Selectable internal pilot or external pilot configurations;
2. Spool-type structure ensures excellent sealing performance and responsive actuation;
3. Three-position valves offer three center position configurations (exhaust-closed/exhaust-open/pressure-center);
4. Dual-solenoid two-position valves feature memory function for sustained state retention;
5. Specially honed inner bore minimizes friction resistance, enables low operating pressure, and extends service life;
6. Maintenance-free lubrication system eliminates external lubrication requirements;
7. Manifold-compatible design allows modular assembly, optimizing space utilization;
8. Integrated manual override facilitates installation and commissioning adjustments;
9. Multiple standard voltage options available for flexible integration.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V300
Installation protocol:
Mount in vibration-free location using M5 mounting screws (included).
Always install downstream of 5μm filter regulator. Lubricator requires
ISO VG32 turbine oil if used. Allow 20mm clearance above valve for
heat dissipation during continuous operation.
2. Spool-type structure ensures excellent sealing performance and responsive actuation;
3. Three-position valves offer three center position configurations (exhaust-closed/exhaust-open/pressure-center);
4. Dual-solenoid two-position valves feature memory function for sustained state retention;
5. Specially honed inner bore minimizes friction resistance, enables low operating pressure, and extends service life;
6. Maintenance-free lubrication system eliminates external lubrication requirements;
7. Manifold-compatible design allows modular assembly, optimizing space utilization;
8. Integrated manual override facilitates installation and commissioning adjustments;
9. Multiple standard voltage options available for flexible integration.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V300
AirTAC 4V300 Series Solenoid Valve 4V31008E-AM Technical Details
- Full model designation: 4V310-08E-AM (4V300 platform)
- Valve type: 5/2-way double solenoid operated (bi-stable)
- Port configuration: 1/4" BSPP (G1/4) female threads
- Operating pressure range: 0.15–1.0 MPa (21.7–145 PSI)
- Voltage variants: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Power consumption: 3.2W (AC), 3.6W (DC)
- Weight: 550g ±5% (including coil and connector)
- Body dimensions: 80mm(L) × 50mm(W) × 72mm(H)
- Flow capacity: CV 1.2 (Kv 1.4) at 6 bar
- Seal material: NBR (Nitrile) standard, optional Viton for high temp
- Ambient temperature: -5℃ to 80℃ (non-freezing)
- Response time: ≤25ms (exhaust to actuation)
- Protection rating: IP67 (coil), IP40 (valve body)
- Manual override: Paddle-type operator included
- Porting pattern: ISO 5599-1 compliant
High-flow directional control valve engineered for industrial automation systems requiring precise bidirectional cylinder control. Features dual coil latching design for energy-saving operation and integrated surge suppression circuits. The aluminum alloy body with hard anodized finish resists chemical corrosion in harsh environments.
Industrial Applications:
- Pneumatic press clamp sequencing in automotive assembly
- Material handling systems with double-acting cylinders
- Textile machinery shuttle control
- Plastic injection molding machine ejectors
- Food processing equipment (requires optional SS316 version)
Installation protocol:
Mount in vibration-free location using M5 mounting screws (included).
Always install downstream of 5μm filter regulator. Lubricator requires
ISO VG32 turbine oil if used. Allow 20mm clearance above valve for
heat dissipation during continuous operation.
Service life:
10 million cycles minimum (clean dry air at 0.5MPa).
Replace seals every 2 years in high-cycle applications.
Use only AirTAC genuine repair kits (RK-4V300-NBR) for maintenance.
| Property | Property Value |
|---|---|
| sku | 4V31008E-AM |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
| Standard Voltage | AC24V |
