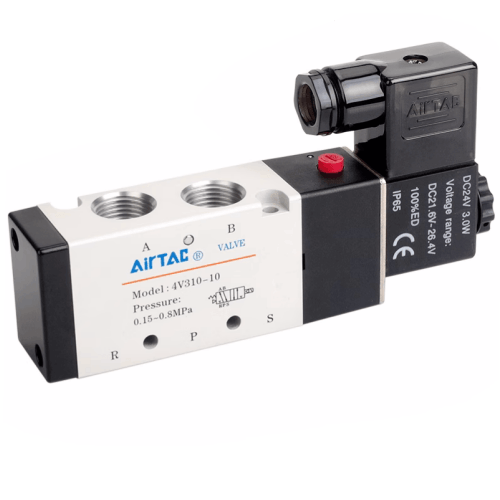

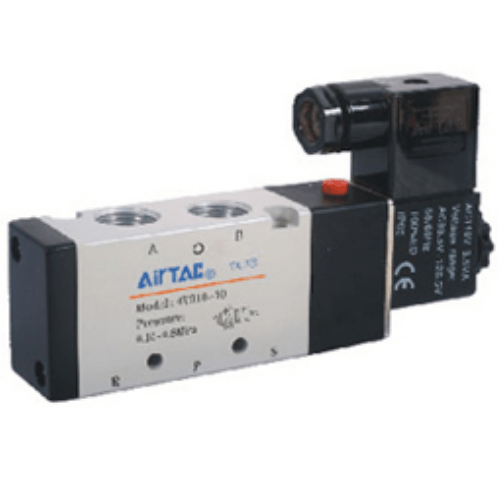

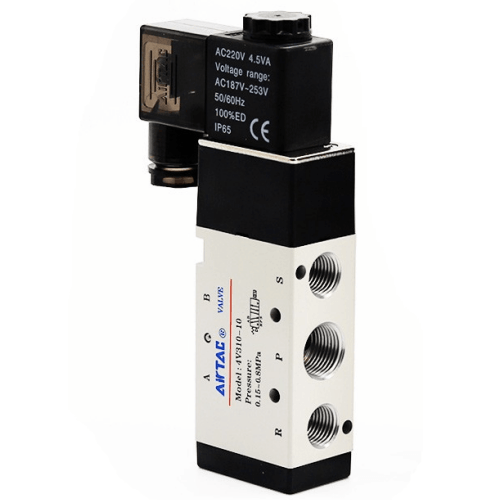

Airtac 4V300 Solenoid Valve 4V31010A-W
2. Spool-type structure ensures excellent sealing performance and responsive actuation;
3. Three-position valves offer three center position configurations (exhaust-closed/exhaust-open/pressure-center);

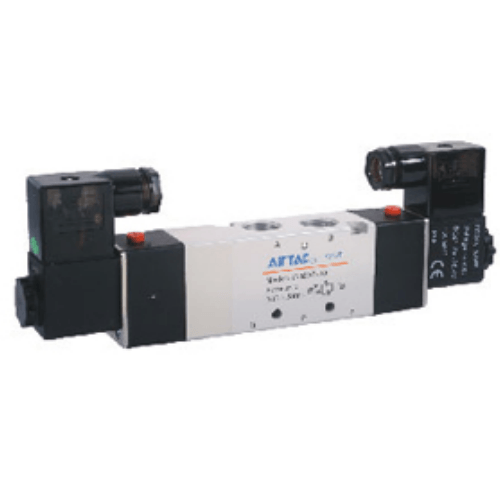

4. Dual-solenoid two-position valves feature memory function for sustained state retention;
5. Specially honed inner bore minimizes friction resistance, enables low operating pressure, and extends service life;
6. Maintenance-free lubrication system eliminates external lubrication requirements;
7. Manifold-compatible design allows modular assembly, optimizing space utilization;
8. Integrated manual override facilitates installation and commissioning adjustments;
9. Multiple standard voltage options available for flexible integration.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V300
AirTAC 4V300 Series 4V31010A-W Solenoid Valve Specifications
- Model: 4V31010A-W (4V300 platform)
- Type: 5/2-way monostable (direct-operated)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC24V (±10%), AC220V (50/60Hz)
- Flow capacity: 850 l/min (Cv=1.3 at 0.5MPa)
- Weight: 320g ±5% (including coil)
- Dimensions: 98mm(L) × 50mm(W) × 45mm(H)
- Seal materials: NBR standard (FKM optional for high temp)
- Ambient temperature: -5℃ to 80℃ (with NBR seals)
- Response time: ≤15ms (at rated voltage)
- Power consumption: ≤2.5W (DC), ≤3.5VA (AC)
- Port thread depth: 12mm (metal-to-metal sealing)
- Protection class: IP67 (coil), IP40 (valve body)
High-flow solenoid valve with rugged aluminum alloy body, designed for bidirectional cylinder control in industrial automation. Features dual manual override and LED status indicator (DC models). Optimized for applications requiring rapid cycling (up to 5Hz) with built-in surge protection circuitry.
- Packaging machine clamp sequencing
- Automated assembly line actuators
- Plastic injection molding ejectors
- CNC machine tool clamping systems
- Pneumatic conveyor diverters
Installation protocol:
Mount in vibration-free environment using M5 mounting screws (not included).
Maintain minimum 20mm clearance below valve for manifold heat dissipation.
Use 5μm filtration with auto-drain for optimal performance.
| Property | Property Value |
|---|---|
| sku | 4V31010A-W |
| Position | 5 Ports 2 Position |
| Port Size | PT3/8 |
| Standard Voltage | AC220V |
