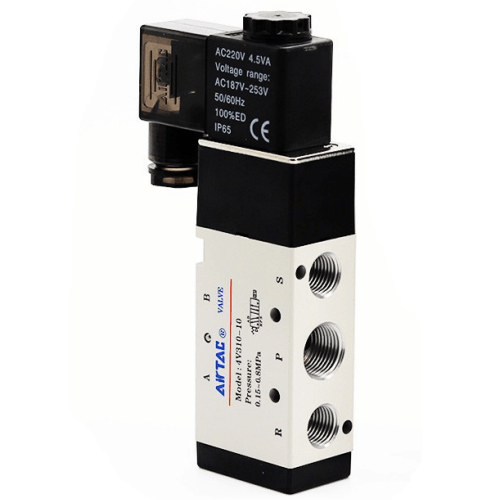

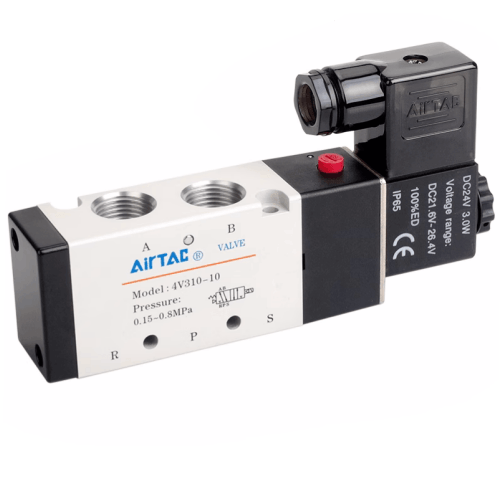

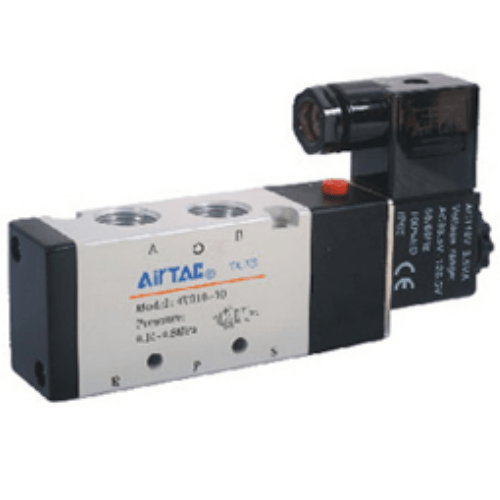

Airtac 4V300 Solenoid Valve 4V31010B-W
2. Spool-type structure ensures excellent sealing performance and responsive actuation;
3. Three-position valves offer three center position configurations (exhaust-closed/exhaust-open/pressure-center);

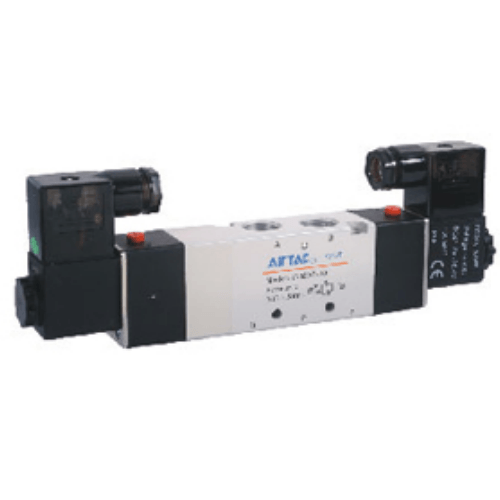

4. Dual-solenoid two-position valves feature memory function for sustained state retention;
5. Specially honed inner bore minimizes friction resistance, enables low operating pressure, and extends service life;
6. Maintenance-free lubrication system eliminates external lubrication requirements;
7. Manifold-compatible design allows modular assembly, optimizing space utilization;
8. Integrated manual override facilitates installation and commissioning adjustments;
9. Multiple standard voltage options available for flexible integration.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V300
AirTAC 4V300 Series Solenoid Valve 4V31010B-W Technical Details
- Model: 4V31010B-W
- Type: 4V300 series 5-port 2-position (5/2-way) solenoid valve
- Port size: G1/8 (ISO228 standard)
- Thread type: Parallel (NPT optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 850 L/min (ANR)
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Weight: 320g ±5% (including coil)
- Dimensions: 84mm(L) × 45mm(W) × 68mm(H)
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature range: -5℃ to 80℃ (non-freezing)
- Power consumption: 2.8W (DC24V), 5.5VA (AC)
- Response time: ≤15ms (at rated voltage)
- Protection rating: IP65 (coil part)
- Manual override: Built-in push-button
- Mounting: Direct acting, sub-base optional
High-flow directional control valve with pilot-assisted operation, featuring brass body construction with hard anodized aluminum solenoid housing. Designed for bi-directional cylinder control with exhaust port silencers. Includes LED status indicator and surge protection circuitry. Requires 5μm filtered lubricated or non-lubricated air.
- Automated packaging line cylinder sequencing
- Plastic injection molding machine clamp control
- CNC machine tool chuck actuators
- Automotive assembly line pneumatic grippers
- Material handling system diverters
Maintenance advice:
Lubricate sliding parts with ISO VG32 turbine oil monthly in continuous operation.
Use locking compound on port threads when subjected to vibration. Allow 20mm clearance
above valve for heat dissipation during vertical installation.
| Property | Property Value |
|---|---|
| sku | 4V31010B-W |
| Position | 5 Ports 2 Position |
| Port Size | PT3/8 |
| Standard Voltage | DC24V |
