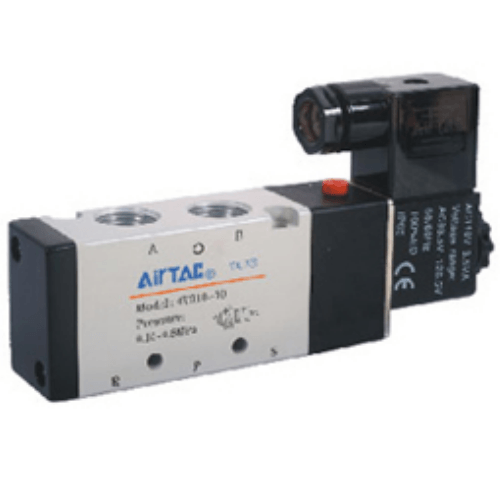

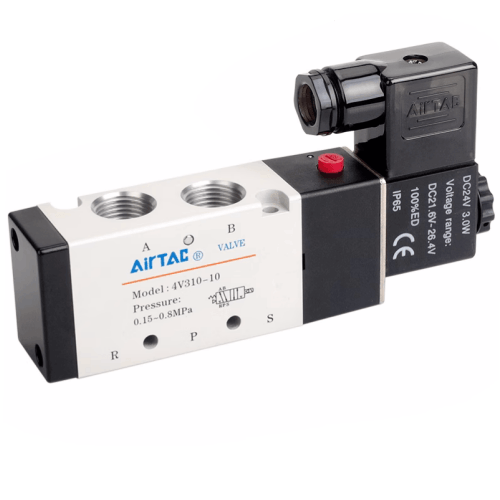

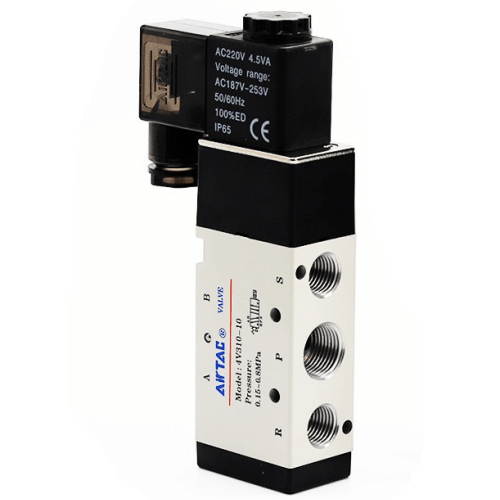

Airtac 4V300 Solenoid Valve 4V31010BI-AM
2. Spool-type structure ensures excellent sealing performance and responsive actuation;

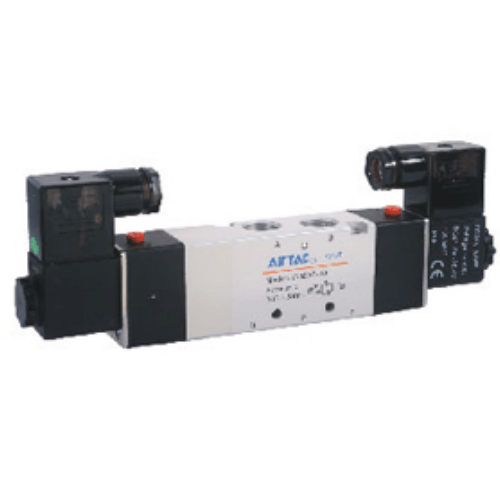

3. Three-position valves offer three center position configurations (exhaust-closed/exhaust-open/pressure-center);
4. Dual-solenoid two-position valves feature memory function for sustained state retention;
5. Specially honed inner bore minimizes friction resistance, enables low operating pressure, and extends service life;
6. Maintenance-free lubrication system eliminates external lubrication requirements;
7. Manifold-compatible design allows modular assembly, optimizing space utilization;
8. Integrated manual override facilitates installation and commissioning adjustments;
9. Multiple standard voltage options available for flexible integration.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V300
AirTAC 4V300 Solenoid Valve 4V31010BI-AM Technical Specifications
- Model: 4V31010BI-AM (4V300 Series)
- Valve type: 5/2-way monostable (single solenoid)
- Port size: 1/4" NPT (G1/8 optional)
- Operating pressure range: 0.1–1.0 MPa
- Voltage variants: DC12V/24V, AC110V/220V (±10% tolerance)
- Max flow rate: 850 l/min (ANR)
- Weight: 0.35 kg (with connector)
- Dimensions: 63mm(L) × 44mm(W) × 68mm(H)
- Seal material: Heat-resistant NBR (-10℃ to 120℃)
- Response time: ≤15ms (at 0.5MPa)
- Power consumption: 1.6W (DC), 3.2VA (AC)
- Protection class: IP67 (dust/water resistant)
- Port thread depth: 8.5mm (for secure fitting)
High-flow directional control valve with low power consumption design, featuring brass alloy body with anodized aluminum solenoid housing. Equipped with manual override and LED status indicator. Optimized for rapid cycling applications requiring ≥500,000 cycle durability. Requires 5μm filtered lubricated air (ISO 8573-1 class 3).
- High-speed packaging machinery actuators
- Automated assembly line clamping systems
- Plastic injection molding machine controls
- Food processing pneumatic circuits (NSF compliant)
- Automotive tire assembly equipment
Installation guidelines:
Mount vertically (±15° tolerance) with exhaust ports downward.
Use vibration-resistant mounting brackets in high-shock environments.
Maintain 1.5x port diameter clearance around piping connections.
| Property | Property Value |
|---|---|
| sku | 4V31010BI-AM |
| Position | 5 Ports 2 Position |
| Port Size | PT3/8 |
| Standard Voltage | DC24V |
