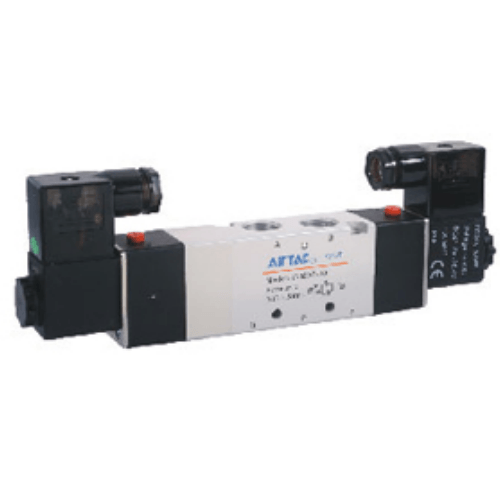

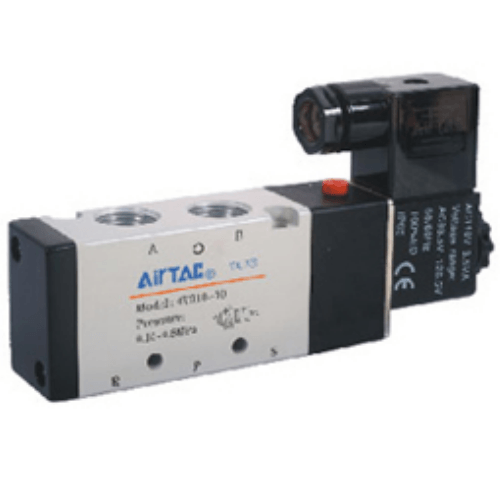

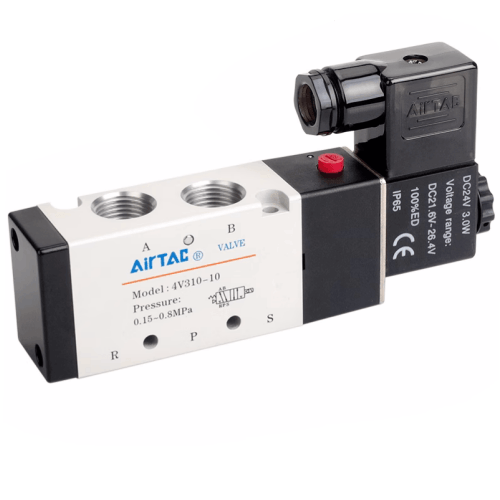

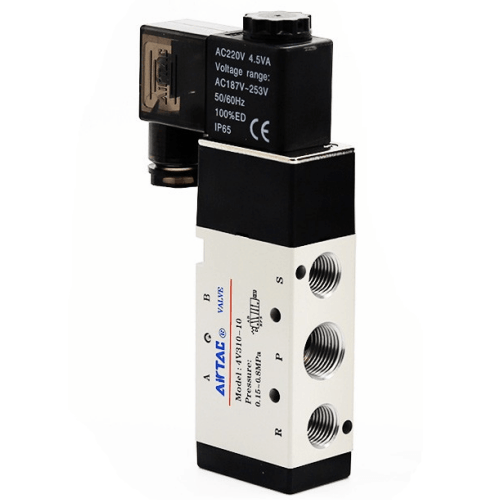

Airtac 4V300 Solenoid Valve 4V31010C-W
2. Spool-type structure ensures excellent sealing performance and responsive actuation;
3. Three-position valves offer three center position configurations (exhaust-closed/exhaust-open/pressure-center);
4. Dual-solenoid two-position valves feature memory function for sustained state retention;
5. Specially honed inner bore minimizes friction resistance, enables low operating pressure, and extends service life;
6. Maintenance-free lubrication system eliminates external lubrication requirements;
7. Manifold-compatible design allows modular assembly, optimizing space utilization;
8. Integrated manual override facilitates installation and commissioning adjustments;
9. Multiple standard voltage options available for flexible integration.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V300
AirTAC 4V300 Series 4V31010C-W Solenoid Valve Specifications
- Model: 4V31010C-W (4V300 platform)
- Type: 5/2-way single solenoid spring return
- Port size: G1/8 (ISO228/1 standard)
- Operating pressure: 0.15–1.0 MPa (21.7–145 PSI)
- Voltage options: DC12V, DC24V, AC110V 50/60Hz, AC220V 50/60Hz
- Flow capacity: 850 l/min (ANR, at 0.5MPa)
- Response time: ≤15ms (energized), ≤20ms (de-energized)
- Weight: 0.62 kg (1.37 lbs)
- Dimensions: 56mm(L) × 38mm(W) × 70mm(H)
- Body material: Die-cast aluminum alloy (hard anodized)
- Seal material: Heat-resistant NBR (up to 80℃)
- Temperature range: -5℃ to 80℃ (non-freezing)
- Power consumption: 2.2W (DC models), 3.5VA (AC models)
- Protection rating: IP67 (dust/water resistant)
- Port thread depth: 10mm (minimum engagement)
High-flow directional control valve with optimized pressure balance design for stable operation under variable loads. Features a manual override button for system debugging and emergency control. The aluminum body with nickel-plated brass core ensures corrosion resistance in humid environments. Requires ISO 8573-1:2010 Class 3.4.2 compressed air quality (max 5mg/m³ oil content).
- Automated assembly line actuators
- Plastic injection molding machine clamps
- Textile machinery cylinder control
- CNC tool changers and pallet systems
- Material handling equipment (conveyors, stackers)
Installation guidelines:
Mount with 30mm clearance below for manual override access. Use flexible tubing
to reduce vibration transmission. Lubricate with ISO VG32 turbine oil if air
lubrication system not present. Annual seal inspection recommended for high-cycle
applications (>500,000 operations/year).
| Property | Property Value |
|---|---|
| sku | 4V31010C-W |
| Position | 5 Ports 2 Position |
| Port Size | PT3/8 |
| Standard Voltage | AC 110V |
