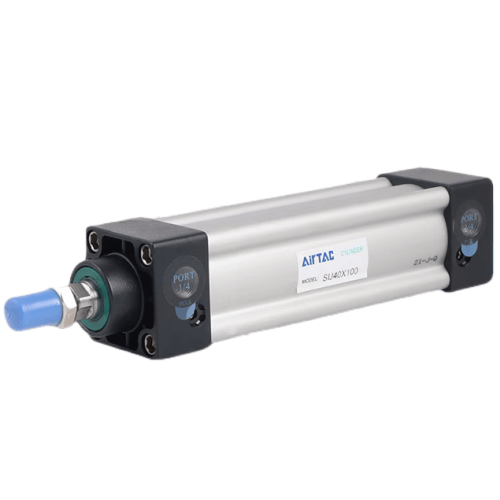

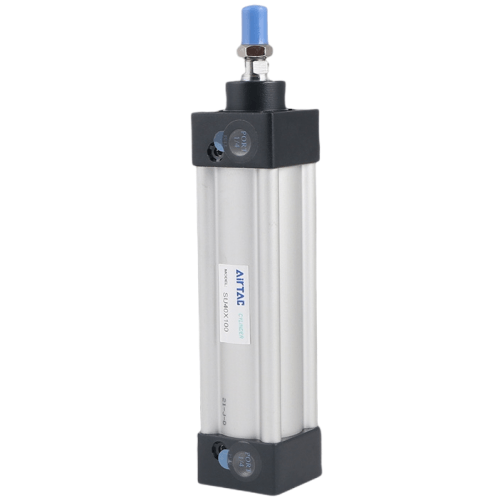

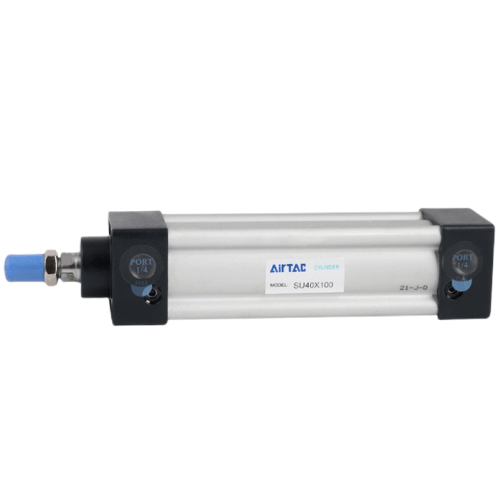

Airtac B06-SU Battery Dedicated Standard Cylinder B06-SU40X400
AirTAC B06-SU40X400 Battery-Optimized Standard Cylinder Specifications
- Model: B06-SU40X400
- Series: B06-SU (Battery System Special)
- Bore size: 40mm
- Stroke: 400mm
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃
- Port size: M5x0.8 (DIN3852-G1/8 optional)
- Cushioning type: Adjustable rubber buffer + shock absorber
- Piston material: Die-cast aluminum alloy (hard anodized)
- Rod material: Stainless steel SUS304
- Seal material: Heat-resistant NBR (-20℃ to 100℃)
- Weight: 2.48kg (excluding mounting accessories)
- Dimensions: 500mm(L) × 80mm(W) × 80mm(H)
- Max speed: 500mm/s
- Lubrication: Pre-lubricated (Molykote 33M)
- Protection rating: IP54 (standard), IP67 optional
- Certification: RoHS compliant
High-efficiency pneumatic cylinder engineered for battery-powered systems and low-pressure operations. Features optimized air consumption (30% reduction vs standard models) and corrosion-resistant construction. Integrated energy-saving design maintains consistent thrust at 0.3MPa, ideal for portable/mobile equipment.
- Lithium battery module assembly presses
- Automated battery swapping stations
- Solar-powered agricultural actuators
- Portable medical device mechanisms
- EV charging connector locking systems
- Battery formation process automation
Installation note:
Requires minimum 5μm filtration. For vertical mounting,
use rod-down position. Relubricate every 3,000km of stroke
travel using ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | B06-SU40X400 |
