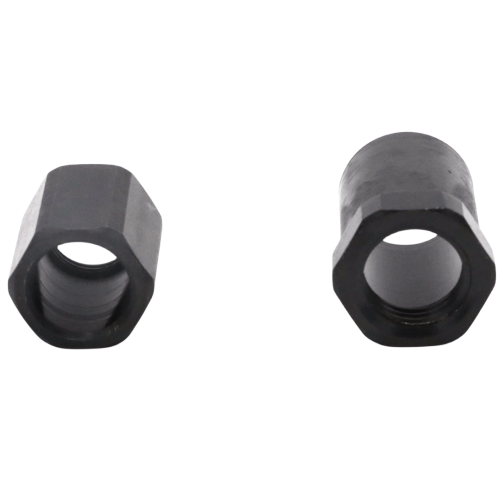

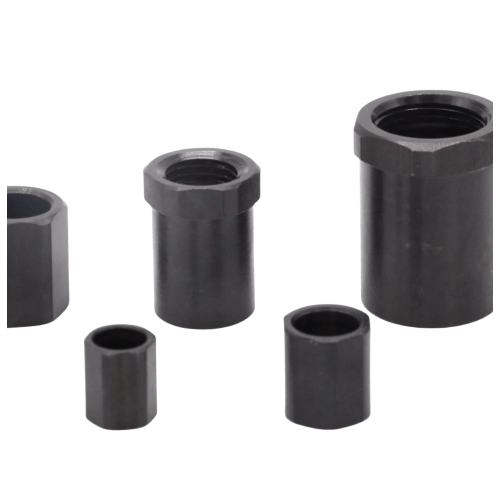

Airtac F-ACA-LM Positioning Stop Nut Assembly Kit F-ACA14LM
$4.15
Regular price
$11.65
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-ACA14LM
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Category: Hydraulic Shock Absorber
Brand: AirTAC
Series: F-ACA-LM Positioning Stop Nut Kit
Technical Description:
The F-ACA-LM Positioning Stop Nut Kit is an engineered accessory package designed for precision alignment and axial positioning in hydraulic damping systems. Featuring ISO-standard metric threads and hardened surface treatment, this kit ensures secure locking functionality while maintaining vibration resistance in high-cycle industrial applications.
Key Specifications:
• Material: Chromium-molybdenum alloy steel (SCM435 equivalent)
• Surface Hardness: HRC 35-40
• Thread Tolerance: 6g per ISO 965-1
• Anti-loosening Design: Deformation-prevention groove configuration
Application Compatibility:
Specifically optimized for F-ACA-LM series hydraulic shock absorbers, this kit provides micron-level positioning accuracy for automated equipment requiring repeatable stroke termination. Includes installation-ready components with pre-lubricated interfaces for immediate OEM integration.
Mounting protocol:
Apply initial hand-tightening followed by 1/8 turn torque wrench adjustment.
Use alignment jig (PN: F-JG14LM) for cluster installations.
Re-torque after 50 operation cycles.
AirTAC F-ACA-LM Positioning Stop Nut Kit F-ACA14LM Technical Specifications
- Complete model: F-ACA14LM (Contains pre-assembled components)
- Compatible cylinder series: AC(Q)M/AC(Q)S 14mm bore
- Thread specification: M6×1.0 double nut configuration
- Material composition:
- Main body: Anodized aluminum alloy AL6061-T6
- Locking plate: SUS304 stainless steel
- Sealing: Special polymer wear-resistant washer
- Installation torque: 1.5-2.0 N·m (with thread locker pre-applied)
- Positioning accuracy: ±0.2mm repeatability
- Axial load capacity: 200N (static), 150N (dynamic)
- Temperature range: -20℃ to 80℃ (continuous operation)
- Surface hardness: HV400-450 (anodized layer)
- Corrosion resistance: 96hr salt spray test passed
- Weight: 28g ±1g (complete assembly)
- Dimensions:
- Height: 12.5mm (including protrusions)
- Width: 19mm (across flats)
- Installation depth: 8mm (minimum engagement)
Precision-engineered dual locking solution for cylinder stroke adjustment, featuring anti-vibration teeth and secondary security plate. The zinc-nickel plated components provide enhanced corrosion resistance in humid environments. Includes pre-installed nylon insert for thread retention.
Typical Implementation:
- Pneumatic cylinder end-position calibration in SMT equipment
- Repeatable stopper for CNC tool changer mechanisms
- Adjustable limit for packaging machine gripper arms
- Position memory system in automated test fixtures
Mounting protocol:
Apply initial hand-tightening followed by 1/8 turn torque wrench adjustment.
Use alignment jig (PN: F-JG14LM) for cluster installations.
Re-torque after 50 operation cycles.
Pairing recommendation:
For optimal performance, use with AirTAC MMF-6 magnetic sensor
and F-MP14 cushion seal kit in high-cycle applications (>500,000 cycles/year).
| Property | Property Value |
|---|---|
| sku | F-ACA14LM |
| Internal Thread Specification | M14 |
