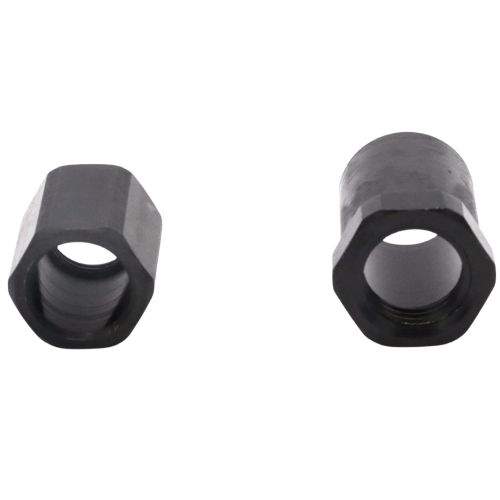

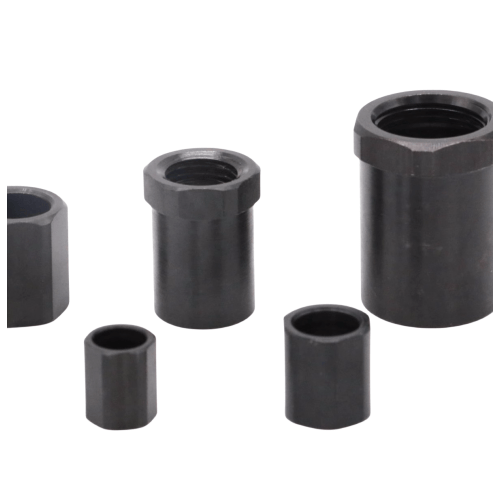

Airtac F-ACA-LM Positioning Stop Nut Assembly Kit F-ACA27LM
AirTAC F-ACA-LM Positioning Stop Nut Kit F-ACA27LM Technical Details
- Full model number: F-ACA27LM
- Series: F-ACA-LM precision adjustment series
- Thread specification: M27×1.5
- Material: Stainless Steel (SUS304) body + Aluminum alloy (A6063) lock nut
- Surface treatment: Anodized aluminum components
- Max axial load capacity: 1,200N (static), 800N (dynamic)
- Rotation torque: 0.5-1.2 N·m (recommended installation torque)
- Operating temperature: -20℃ to 80℃
- Vibration resistance: ≤10 m/s²
- Weight: 184±5g (complete kit)
- Package dimensions: 52mm(D) × 52mm(W) × 38mm(H)
- Included components: Stop nut ×1, Lock washer ×1, Hex key ×1
- Corrosion resistance: Passes 96hr salt spray test
Precision-machined mechanical stop solution for pneumatic cylinder position control. Features dual-material construction with wear-resistant stainless steel contact surfaces and lightweight aluminum locking components. Includes integrated torque-limiting grooves to prevent over-tightening.
- Repeatable end-position calibration in SCARA robots
- Z-axis stroke limitation for CNC tool changers
- Modular assembly line positioning fixtures
- Packaging machine stroke adjustment systems
- Precision glass cutting equipment stops
Installation protocol:
Apply lithium-based grease to threads before installation.
Use included 5mm hex key for adjustment.
Always engage lock washer after final position setting.
Maximum 180° rotation adjustment range from initial position.
| Property | Property Value |
|---|---|
| sku | F-ACA27LM |
| Internal Thread Specification | M27 |
