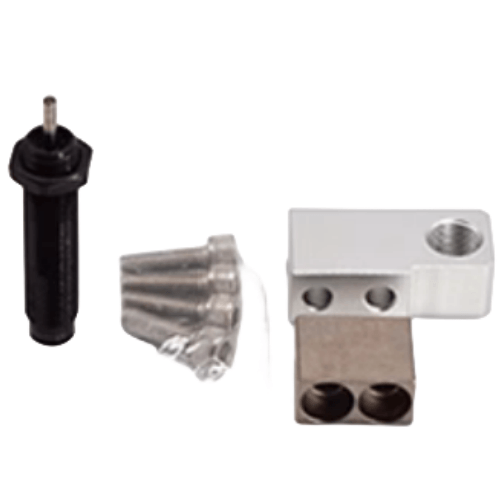

Airtac F-HLQ-BS Front End with Hydraulic Cushion Complete Assembly F-HLQ20BS
AirTAC F-HLQ-BS Series Hydraulic Shock Absorber with Front Mounting Kit (F-HLQ20BS)
- Model: F-HLQ20BS
- Type: Adjustable hydraulic damper with pre-mounted bracket
- Buffer force: 20-200N (adjustable via needle valve)
- Effective stroke: 20mm ±1mm
- Piston rod material: Chrome-plated steel (HRC 45-50)
- Body material: Aluminum alloy (anodized surface)
- Mounting type: Front flange installation
- Weight: 850g ±3% (including mounting hardware)
- Dimensions: 98mm(L) × 50mm(W) × 50mm(H)
- Operating temperature: -10℃ to 80℃
- Oil viscosity: ISO VG15 hydraulic fluid (pre-filled)
- Impact velocity: 0.1-1.5m/s (optimal performance range)
- Repeat accuracy: ±0.5mm
- Protection rating: IP54 (dust/water resistant)
High-precision hydraulic shock absorber with integrated mounting bracket, designed for linear motion systems requiring smooth deceleration. Features temperature-compensated damping and anti-rotation design. Pre-lubricated with corrosion inhibitors for maintenance-free operation. Includes stainless steel mounting hardware.
- Industrial robot end-of-arm tooling stabilization
- CNC machine tool carriage stopping mechanisms
- Packaging machine gripper head damping
- Automated assembly line indexing units
- Press machine slide deceleration systems
Installation guidance:
Align piston rod axis with motion direction within ±2° tolerance. Perform 10-15 test cycles
at 50% load before full operation. Re-torque mounting bolts (4.5N·m) after 24hrs of use.
| Property | Property Value |
|---|---|
| sku | F-HLQ20BS |
| Bore Diameter | <20mm> |
