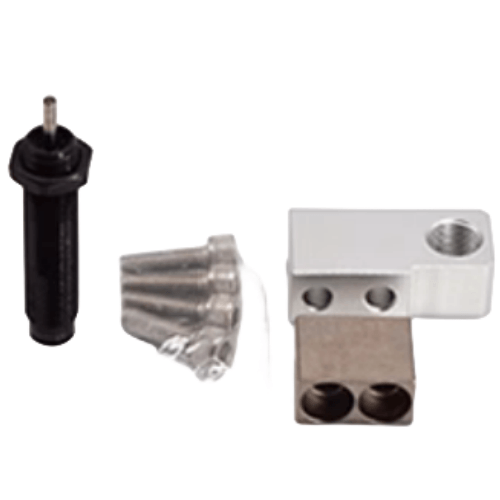

Airtac F-HLQ-BS Front End with Hydraulic Cushion Complete Assembly F-HLQ25BS
AirTAC F-HLQ-BS Series Front-Mounted Hydraulic Shock Absorber Kit - F-HLQ25BS
- Model: F-HLQ25BS (Complete Kit)
- Type: Front-mounted hydraulic cushion with pre-installed adapter
- Applicable cylinder bore: Ø25mm
- Stroke: 15mm (adjustable)
- Max. absorbed energy: 2.3 J/cycle
- Max. impact velocity: 0.8 m/s
- Buffer type: Oil-hydraulic adjustable
- Operating temperature: -10℃ to 60℃
- Material: Aluminum alloy body with hardened steel piston rod
- Mounting: Horizontal installation recommended
- Oil viscosity: ISO VG32 hydraulic oil (pre-filled)
- Seal material: NBR with wear-resistant ring
- Protection rating: IP54 (standard dust/moisture resistance)
- Total length: 83mm (including mounting threads)
- Body diameter: Ø34mm
- Mounting thread: M12×1.25 (front connection)
- Weight: 0.68kg (with oil charge)
Pre-assembled hydraulic damping solution designed for pneumatic cylinder end-of-stroke cushioning. Features micro-adjustment valve for precise kinetic energy absorption control (5-stage adjustment). Includes integrated mounting hardware and factory-precharged oil system with dust seals. Corrosion-resistant anodized surface treatment ensures durability in harsh environments.
- High-cycle automation equipment (800-1,200 operations/hour)
- Vertical press machine ram deceleration
- Packaging line cylinder end-stop damping
- Material handling system shock absorption
- Robotic arm joint motion control
Installation protocol:
Perform 5-10 test strokes after installation to distribute oil evenly.
Adjust buffer force clockwise for firmer damping. Maintenance interval:
Check oil level every 6 months under normal use (20,000 cycles/day).
| Property | Property Value |
|---|---|
| sku | F-HLQ25BS |
| Bore Diameter | <25 mm> |
