Airtac F-HLQL-B Front and Rear Ends with Hydraulic Shock Absorbers Complete Assembly F-HLQL12B

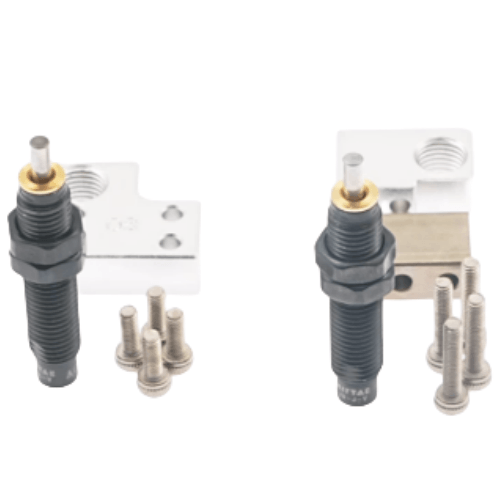

AirTAC F-HLQL-B Series Hydraulic Shock Absorber Kit (F-HLQL12B)
- Model: F-HLQL12B (Front/Rear Mount Kit)
- Type: Pre-installed oil hydraulic shock absorber with mounting accessories
- Max. absorbed energy: 0.8 J/cycle
- Impact speed range: 0.1-1.5 m/s
- Stroke length: 15 mm
- Shaft diameter: 12 mm (M12x1.25 thread)
- Installation type: Double-ended stud mounting
- Operating temperature: -10℃ to 80℃
- Body material: Carbon steel with nickel plating
- Seal material: Polyurethane (PU)
- Oil viscosity: ISO VG15-22 hydraulic oil
- Adjustment: 10-stage damping force adjustment
- Weight: 450 g ±5% (including mounting hardware)
- Dimensions: 72mm(L) × 32mm(W) × 32mm(H)
- Mounting hole spacing: 50mm center-to-center
- Protection rating: IP54 (dust/water spray resistant)
Pre-assembled hydraulic damping solution with front/rear mounting brackets, designed for linear motion systems requiring precise deceleration control. Features progressive damping characteristics and maintenance-free operation. The zinc-nickel plated body resists corrosion in humid environments, while the integrated locknut design prevents loosening from vibration.
- Automated assembly line stoppers
- CNC machine tool carriages
- Packaging machine ejector mechanisms
- Robotic arm end effector damping
- Conveyor system shock absorption
- Semiconductor handling equipment
Installation note:
Align absorber axis within ±0.5° of impact direction. Apply 20-30 N·m torque
during bracket installation. Perform 5-10 test strokes before full operation.
| Property | Property Value |
|---|---|
| sku | F-HLQL12B |
| Bore Diameter | 12mm |
