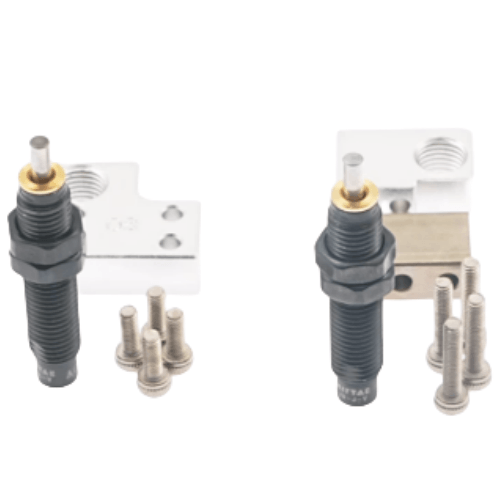

Airtac F-HLQL-B Front and Rear Ends with Hydraulic Shock Absorbers Complete Assembly F-HLQL8B
AirTAC F-HLQL-B Front/Rear Hydraulic Shock Absorber Kit (F-HLQL8B)
- Model: F-HLQL8B (Complete Package)
- Type: Oil hydraulic cushion with front/rear mounting
- Maximum impact energy: 0.5 J
- Max. impact velocity: 1.5 m/s
- Stroke: 8 mm ±10%
- Allowable impact mass: 5-150 kg
- Operating temperature: -10℃ to 80℃
- Mounting orientation: Any direction (omnidirectional)
- Body material: Aluminum alloy (surface anodized)
- Rod material: Carbon steel (chrome plated)
- Seal material: Polyurethane (NBR optional)
- Oil type: ISO VG15-32 hydraulic oil
- Weight: 320 g ±5%
- Dimensions: 56mm(Ø) × 72.5mm(L) (body only)
- Full installation length: 80.5mm (including both ends)
- Thread specifications: M10×1.25 mounting threads
- Impact force adjustment: 5-stage via rotary valve (0.5-2.5 turns)
High-precision hydraulic damper with twin-chamber design for smooth deceleration in repetitive impact applications. Features temperature-compensated viscosity control and anti-backlash adjustment mechanism. Pre-filled with oxidation-resistant fluid for maintenance-free operation. Includes integrated wear indicator window.
- Industrial robot end-effector shock absorption
- CNC machine tool automatic door mechanisms
- Packaging line cylinder end cushioning
- Elevator car emergency braking systems
- Automated warehouse shuttle dampers
Installation note:
Perform 10-15 trial strokes before full operation to distribute oil evenly.
Adjust damping force clockwise for heavier loads. Avoid side-load exceeding 50N during mounting.
| Property | Property Value |
|---|---|
| sku | F-HLQL8B |
| Bore Diameter | <8mm> |
