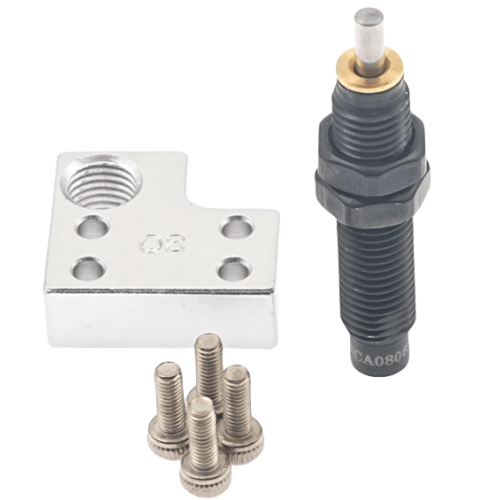

Airtac F-HLQL-BF Rear End Hydraulic Cushion Complete Package F-HLQL25BF
AirTAC F-HLQL-BF Series Rear-Mounted Hydraulic Shock Absorber Kit (F-HLQL25BF)
- Model: F-HLQL25BF (Complete Assembly Kit)
- Type: Rear-mounted adjustable hydraulic damper with buffer rod
- Bore size: 25mm (Standard series)
- Stroke range: 25-100mm (Customizable upon request)
- Buffer force: 3-15N (Adjustable via screw)
- Max. impact speed: 0.8m/s
- Energy absorption: 0.8J per cycle
- Operating pressure: 0.05-1.0MPa
- Mounting style: Dual through-hole (M6x1.0 thread)
- Rod material: Chrome-plated steel (HRC 45-50)
- Body material: Anodized aluminum alloy
- Seal type: HNBR oil-resistant seals
- Temperature range: -10℃ to 80℃
- Oil capacity: 12±1ml (ISO VG32 hydraulic oil)
- Weight: 0.8kg (Complete assembly)
- Dimensions: 110mm(L) × 50mm(W) × 50mm(H) (Installed position)
Integrated hydraulic shock absorption solution designed for linear actuators and cylinders, featuring progressive damping control through precision-machined orifice system. The self-contained oil circuit maintains consistent performance across temperature variations. Gold-plated electrical connectors ensure corrosion resistance in humid environments.
- Pneumatic cylinder end-stroke deceleration
- Pick-and-place robot arm vibration suppression
- Packaging machine feed mechanism stabilization
- Automated assembly line tooling buffers
- Material handling equipment impact absorption
Installation note:
Mount perpendicular to motion axis with ±2° tolerance. Perform 5-10 test cycles after installation to prime damping system.
Maintenance interval: Relubricate every 500,000 cycles or 12 months (whichever comes first).
- Locate hex socket on buffer rod end
- Clockwise rotation increases damping force (stiffer)
- Counter-clockwise decreases resistance (softer)
- 1 full rotation ≈ 20% force change
| Property | Property Value |
|---|---|
| sku | F-HLQL25BF |
| Bore Diameter | <25 mm> |
