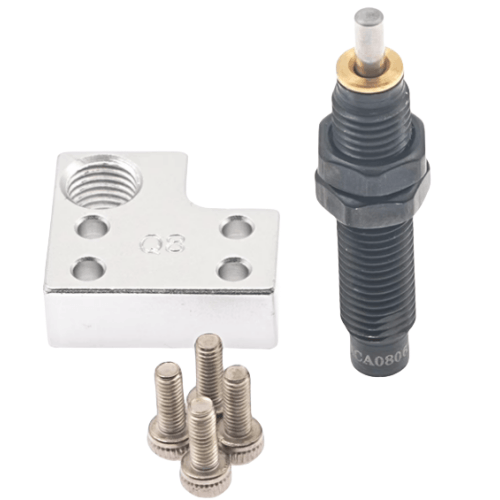

Airtac F-HLQL-BF Rear End Hydraulic Cushion Complete Package F-HLQL8BF
AirTAC F-HLQL-BF Rear-Mounted Hydraulic Shock Absorber Kit (F-HLQL8BF)
- Model Series: HLQL-BF series (Built-in buffer type)
- Complete Kit Code: F-HLQL8BF
- Buffer Capacity: 0.5-1.5 N·m (adjustable via oil viscosity)
- Stroke Length: 5-20mm (mechanical stop adjustable)
- Max. Impact Energy Absorption: 0.6 J/stroke
- Operating Temperature: -10℃ to 80℃
- Hydraulic Fluid: ISO VG32-68 anti-wear hydraulic oil
- Piston Material: Chrome-plated steel (HRC 45-50)
- Seal Type: Double-lip NBR seals with dust wiper
- Mounting Orientation: Horizontal or vertical (end load bearing)
- Repeat Positioning Accuracy: ±0.2mm
- Weight: 480g ±5% (including mounting hardware)
- Dimensions: 78mm(L) × 34mm(W) × 34mm(H) (excluding rod extension)
- Rod Diameter: Ø8mm hardened steel
- Surface Treatment: Black oxide coating (corrosion resistance >500hrs salt spray)
- Cycle Life: 1,000,000+ strokes (under rated load)
Precision-engineered hydraulic shock absorber with integrated mounting flange, designed for deceleration control in linear motion systems. Features temperature-compensated damping via precision machined orifice plates and maintenance-free operation. Includes corrosion-resistant mounting brackets and pre-loaded adjustment screws for field calibration.
- CNC machine tool axis end-stop cushioning
- Automated assembly line pick-and-place robots
- Packaging machinery reciprocating arm systems
- Die-casting machine ejection mechanism
- Semiconductor wafer handling equipment
Installation protocol:
Mount with M6x1.0 screws (24Nm torque limit). Perform 10-15 test cycles
without load before operation. Relubricate seals every 50,000 cycles
using specified oil grade. Avoid side-load exceeding 5N during operation.
| Property | Property Value |
|---|---|
| sku | F-HLQL8BF |
| Bore Diameter | <8mm> |
