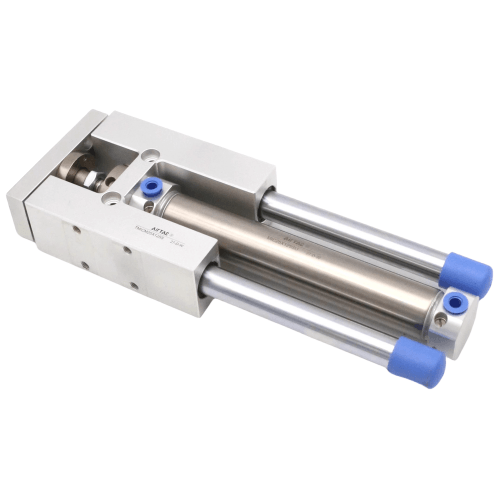

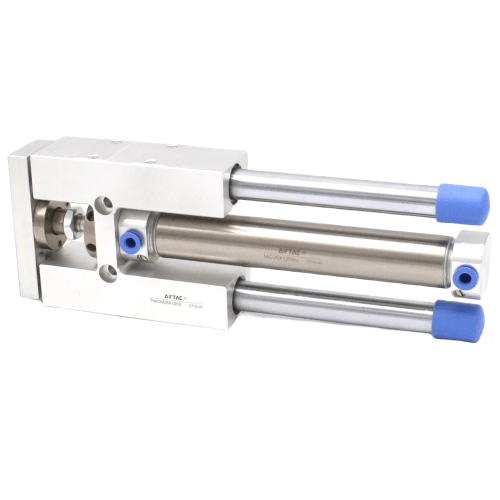

Airtac F-TMICM Guide Unit Complete Set F-TMICM20X50
$78.13
Regular price
$85.63
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-TMICM20X50
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC F-TMICM20X50 Linear Guide Bracket Complete Kit Specifications
- Model: F-TMICM20X50
- Type: Pre-assembled linear guide carriage system
- Rail width: 20mm
- Stroke length: 50mm
- Material: Aluminum alloy (AL6063-T5) rail with hardened steel balls
- Load capacity: 1,200N static / 800N dynamic
- Precision grade: C7 standard (±0.05mm/m repeatability)
- Operating temperature: -20℃ to 120℃
- Lubrication: Pre-packed Molykote EM-30L grease
- Mounting hole pattern: 32mm × 24mm (4×M4 threaded holes)
- Weight: 780g ±2%
- Dimensions: 72mm(L) × 34mm(W) × 28mm(H)
- Surface treatment: Anodized rail (12μm) with chromed shaft
Precision-engineered linear motion solution combining low-friction movement with industrial durability. Features integrated dust seals and corrosion-resistant construction for maintenance-free operation. Includes mounting hardware and alignment shims for simplified installation.
Typical Applications:
- CNC router Z-axis stabilization systems
- Automated optical inspection equipment stages
- Packaging machine material feeders
- 3D printer extruder carriage assemblies
- Semiconductor wafer handling robots
Installation note:
Use torque-limiting driver (0.8-1.2Nm) for mounting screws.
Maintain 0.02mm/m flatness on base surface. Lubricate every
50km of travel with ISO VG68 equivalent grease.
| Property | Property Value |
|---|---|
| sku | F-TMICM20X50 |
