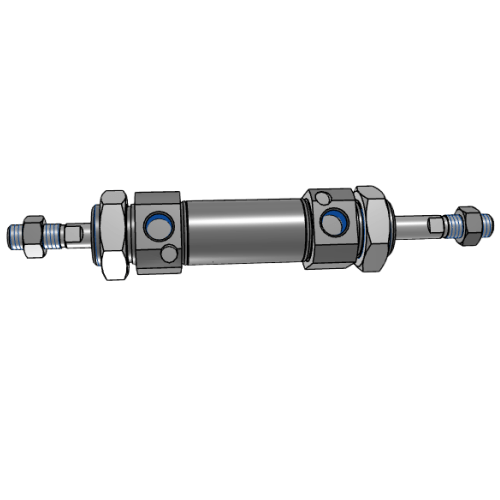

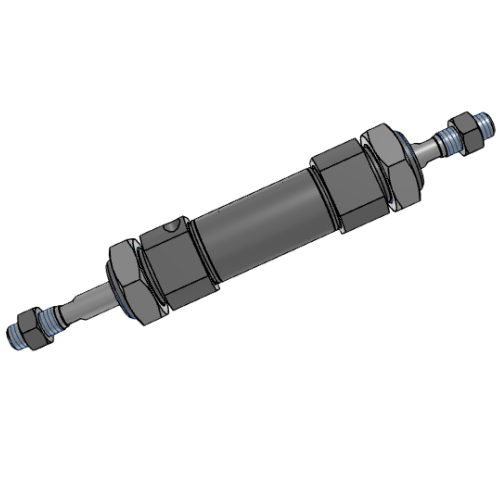

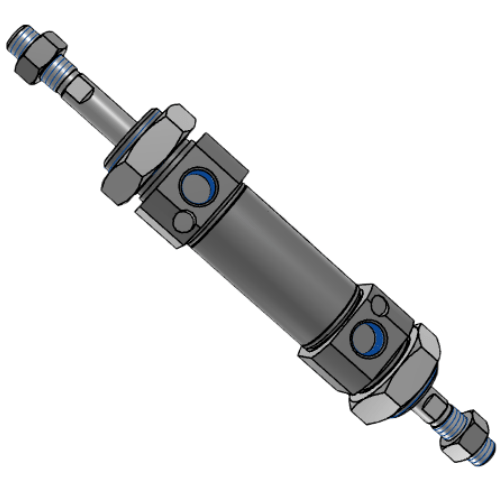

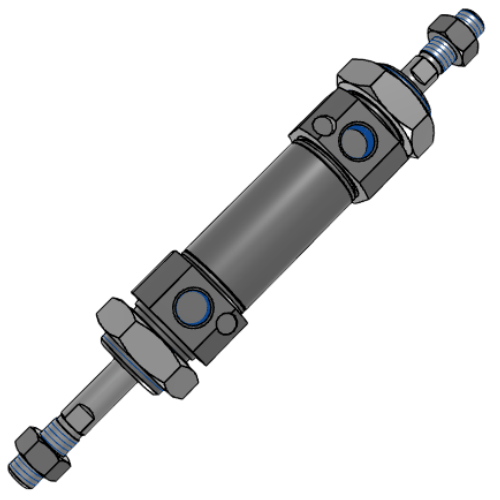

Airtac MFCD Double Rod Cushioned Mini Cylinder MFCD40X225
$99.07
Regular price
$106.57
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MFCD40X225
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Compliant with JIS standards;
2. Piston sealed with specialized bidirectional sealing structure, compact design with integrated lubrication reservoir;
3. Front/rear covers feature fixed shock-absorbing pads to minimize directional change impacts;
4. Multiple rear cover configurations for enhanced mounting flexibility;
5. Crimped and wrapped connection between covers and stainless steel cylinder ensures robust assembly;
6. High-precision stainless steel barrel offers superior strength and corrosion resistance;
7. MF series maintains shorter overall length compared to ISO 6432 standard cylinders with equivalent bore size and stroke;
8. Comprehensive selection of cylinder variants and mounting accessories available.
Category: Double-Rod Cylinders | Brand: AIRTAC | Series: MFCD
Installation guidelines:
Maintain 0.5–1mm clearance between magnetic sensor and cylinder body.
For vertical mounting, use anti-rotation brackets (accessory code: ARC-40).
Lubricate with ISO VG32 hydraulic oil if operating below 0.3 MPa.
2. Piston sealed with specialized bidirectional sealing structure, compact design with integrated lubrication reservoir;
3. Front/rear covers feature fixed shock-absorbing pads to minimize directional change impacts;
4. Multiple rear cover configurations for enhanced mounting flexibility;
5. Crimped and wrapped connection between covers and stainless steel cylinder ensures robust assembly;
6. High-precision stainless steel barrel offers superior strength and corrosion resistance;
7. MF series maintains shorter overall length compared to ISO 6432 standard cylinders with equivalent bore size and stroke;
8. Comprehensive selection of cylinder variants and mounting accessories available.
Category: Double-Rod Cylinders | Brand: AIRTAC | Series: MFCD
AirTAC MFCD Series Double-Outlet Cushioned Mini Cylinder MFCD40X225 Specifications
- Model: MFCD40X225
- Bore size: 40mm
- Stroke: 225mm
- Operation type: Double-acting with adjustable air cushion
- Operating pressure: 0.05–0.9 MPa
- Ambient temperature: -20℃ to 80℃
- Piston speed: 50–800 mm/s (cushioned)
- Mounting type: Standard ISO 6432 (optional foot/rod-end mounts)
- Port size: M5x0.8 (standard) / NPT1/8 (optional)
- Piston material: Aluminum alloy with hard anodized finish
- Rod material: Stainless steel SUS304
- Seal type: NBR+PU hybrid seals (FDA compliant option available)
- Cushion adjustment: 5-stage screw control (±15% stroke adjustment)
- Weight: 1.82 kg (with magnetic piston)
- Dimensions:
- Total length: 320mm (at mid-stroke)
- Body diameter: 56mm
- Rod diameter: 12mm
- Mounting hole spacing: 25mm (front) / 40mm (rear)
High-precision mini cylinder featuring dual-port exhaust and progressive cushioning for vibration-free operation. The T-slot piston design enables 20% faster response than standard models. Includes built-in magnet for position sensing compatibility. Rated for 5,000km service life under normal conditions.
Industrial Applications:
- PCB handling robots requiring precise mid-stroke positioning
- Pharmaceutical blister packaging machines
- High-cycle textile cutting systems (up to 120 cpm)
- Semiconductor wafer transfer mechanisms
- Automated coffee machine brew group actuators
Installation guidelines:
Maintain 0.5–1mm clearance between magnetic sensor and cylinder body.
For vertical mounting, use anti-rotation brackets (accessory code: ARC-40).
Lubricate with ISO VG32 hydraulic oil if operating below 0.3 MPa.
| Property | Property Value |
|---|---|
| sku | MFCD40X225 |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Cushion Type | Adjustable Cushioning |
| Bore Diameter | <40mm> |
| Stroke | 225mm |
