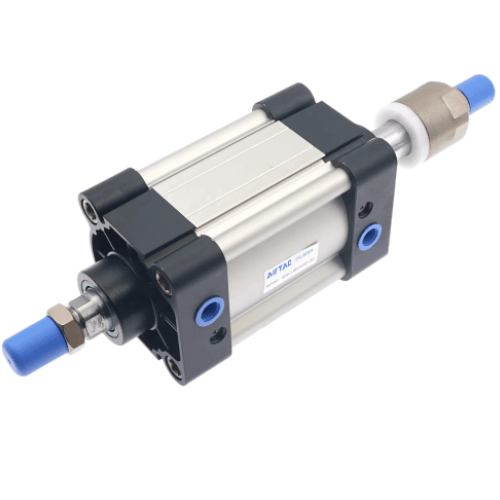

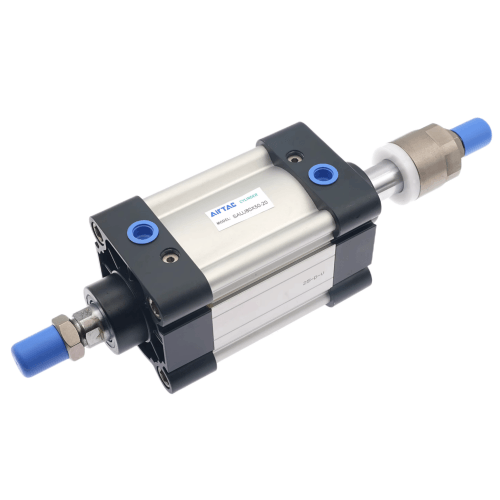

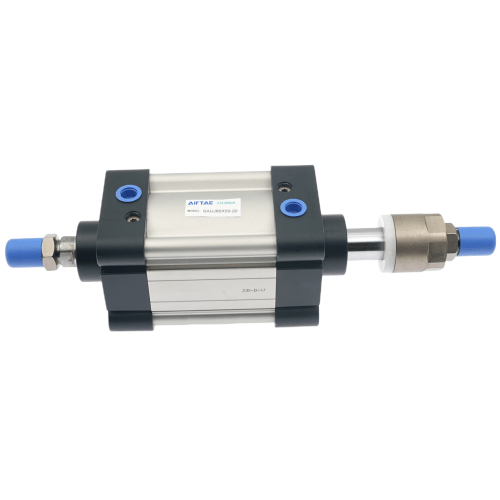

Airtac SAUJ63 Adjustable Pneumatic Cylinder SAUJ63X300-20S
$119.07
Regular price
$126.57
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
SAUJ63X300-20S
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Description of SAUJ63 Adjustable Cylinder:
1. Compliant with Airtac Enterprise Standard Cylinder specifications;
2. Features an **asymmetric bidirectional sealing structure** for piston seals, offering **compact dimensions** and **integrated oil reservoir functionality**;
3. Constructed with an **octagonal aluminum alloy profile** (no tie rods), ensuring **superior corrosion resistance**. Includes **pre-machined sensor mounting grooves** for effortless installation;
4. Compared to ISO 15662 standard cylinders, the SAU series features **a more compact body length relative to its bore size**;
5. Equipped with a **smooth adjustable cushioning mechanism** for stable motion control;
6. **Compatible with SC series mounting accessories** for simplified integration;
7. Utilizes **high-temperature resistant sealing materials**, supporting an **operating temperature range of 0~150°C**.
Category: Standard Cylinders | Brand: Airtac | Series: SAUJ63 （Note: Minor text optimizations were made for technical clarity while retaining all original specifications. HTML line breaks preserved as requested.)
Operation tip:
Always lubricate adjustment threads with silicone grease and perform stroke calibration
at 0.3MPa air pressure. Maximum adjustment torque: 5N·m. Regular lubrication intervals
recommended every 500km of cumulative travel.
2. Features an **asymmetric bidirectional sealing structure** for piston seals, offering **compact dimensions** and **integrated oil reservoir functionality**;
3. Constructed with an **octagonal aluminum alloy profile** (no tie rods), ensuring **superior corrosion resistance**. Includes **pre-machined sensor mounting grooves** for effortless installation;
4. Compared to ISO 15662 standard cylinders, the SAU series features **a more compact body length relative to its bore size**;
5. Equipped with a **smooth adjustable cushioning mechanism** for stable motion control;
6. **Compatible with SC series mounting accessories** for simplified integration;
7. Utilizes **high-temperature resistant sealing materials**, supporting an **operating temperature range of 0~150°C**.
Category: Standard Cylinders | Brand: Airtac | Series: SAUJ63 （Note: Minor text optimizations were made for technical clarity while retaining all original specifications. HTML line breaks preserved as requested.)
AirTAC SAUJ63 Adjustable Stroke Cylinder SAUJ63X300-20S Specifications
- Model: SAUJ63X300-20S
- Type: Double-acting adjustable stroke cylinder
- Bore size: 63mm
- Stroke: 300mm (adjustable)
- Operating pressure: 0.05–1.0 MPa
- Piston rod thread: M20×1.5
- Mounting type: Basic type (optional flange/clevis mounts)
- Cushion type: Adjustable rubber buffer
- Ambient temperature: -20℃ to 80℃
- Medium temperature: 0℃ to 60℃
- Port size: Rc1/4 (NPT1/4 optional)
- Seal material: NBR/PU
- Body material: Aluminum alloy (anodized)
- Weight: 3.8kg ±2%
- Dimensions: 420mm(L) × 82mm(W) × 95mm(H)
High-precision industrial cylinder featuring external stroke adjustment mechanism with locking nut. The dual chrome-plated piston rod and corrosion-resistant construction ensure durability in harsh environments. Includes magnetic piston for position sensing compatibility.
Typical Applications:
- Variable height positioning in assembly lines
- Pressure-sensitive clamping systems
- Packaging machine stopper adjustment
- Automated material handling equipment
- Plastic injection molding ejectors
Operation tip:
Always lubricate adjustment threads with silicone grease and perform stroke calibration
at 0.3MPa air pressure. Maximum adjustment torque: 5N·m. Regular lubrication intervals
recommended every 500km of cumulative travel.
| Property | Property Value |
|---|---|
| sku | SAUJ63X300-20S |
| Adjustable Stroke | <20mm> |
| Seal Material | Polyurethane |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT3/8 |
| Magnet | S-Magnetic |
| Bore Diameter | 63mm |
| Stroke | 300mm |
