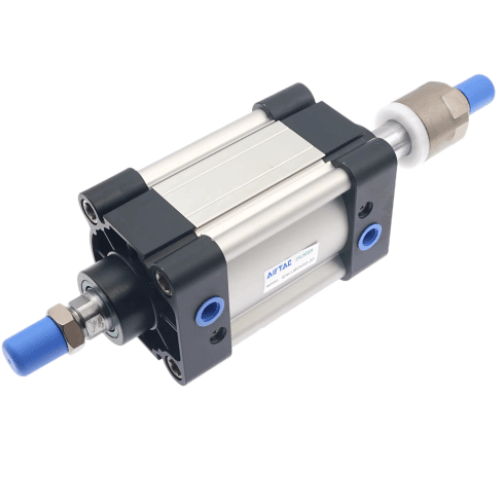

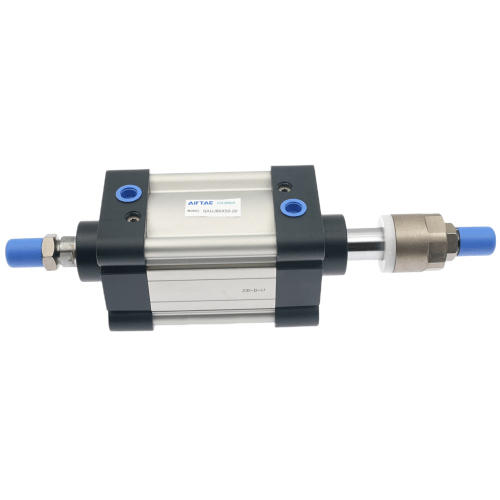

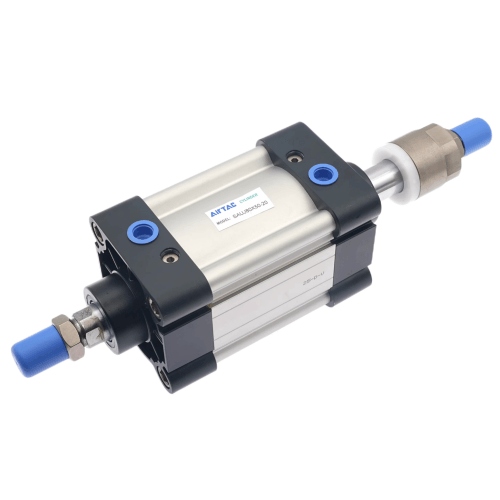

Airtac SAUJ63 Adjustable Pneumatic Cylinder SAUJ63X900-30
$201.43
Regular price
$208.93
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
SAUJ63X900-30
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Description of SAUJ63 Adjustable Cylinder:
1. Compliant with Airtac Enterprise Standard Cylinder specifications;
2. Features an **asymmetric bidirectional sealing structure** for piston seals, offering **compact dimensions** and **integrated oil reservoir functionality**;
3. Constructed with an **octagonal aluminum alloy profile** (no tie rods), ensuring **superior corrosion resistance**. Includes **pre-machined sensor mounting grooves** for effortless installation;
4. Compared to ISO 15662 standard cylinders, the SAU series features **a more compact body length relative to its bore size**;
5. Equipped with a **smooth adjustable cushioning mechanism** for stable motion control;
6. **Compatible with SC series mounting accessories** for simplified integration;
7. Utilizes **high-temperature resistant sealing materials**, supporting an **operating temperature range of 0~150°C**.
Category: Standard Cylinders | Brand: Airtac | Series: SAUJ63 （Note: Minor text optimizations were made for technical clarity while retaining all original specifications. HTML line breaks preserved as requested.)
Installation guidelines:
Maximum side load ≤15% of thrust capacity. For vertical installations,
use counterbalance valves. Adjust cushioning screws gradually during
commissioning (1/4 turn increments).
Maintenance alert:
Re-lubricate every 500km of cumulative travel. Avoid using silicone-based
lubricants which may degrade NBR seals.
2. Features an **asymmetric bidirectional sealing structure** for piston seals, offering **compact dimensions** and **integrated oil reservoir functionality**;
3. Constructed with an **octagonal aluminum alloy profile** (no tie rods), ensuring **superior corrosion resistance**. Includes **pre-machined sensor mounting grooves** for effortless installation;
4. Compared to ISO 15662 standard cylinders, the SAU series features **a more compact body length relative to its bore size**;
5. Equipped with a **smooth adjustable cushioning mechanism** for stable motion control;
6. **Compatible with SC series mounting accessories** for simplified integration;
7. Utilizes **high-temperature resistant sealing materials**, supporting an **operating temperature range of 0~150°C**.
Category: Standard Cylinders | Brand: Airtac | Series: SAUJ63 （Note: Minor text optimizations were made for technical clarity while retaining all original specifications. HTML line breaks preserved as requested.)
AirTAC SAUJ63 Adjustable Stroke Cylinder SAUJ63X900-30 Technical Details
- Model: SAUJ63X900-30
- Type: Double-acting adjustable stroke cylinder
- Bore size: 63mm (ISO standard)
- Stroke length: 900mm (adjustable)
- Operating pressure: 0.1–0.8 MPa
- Cushioning type: Adjustable pneumatic cushion
- Mounting style: Foot-mounted (MF1) with optional flange/bracket
- Port size: 1/4" NPT (G1/8 optional)
- Operating temperature: -20℃ to 80℃
- Rod material: Chrome-plated steel (HCP)
- Tube material: Anodized aluminum alloy
- Seal material: NBR + PU combination
- Weight: 5.8kg ±2% (without accessories)
- Dimensions: 1,120mm(L) × 80mm(W) × 80mm(H)
- Repeat positioning accuracy: ±0.5mm
- ISO certification: 6431, 15552
- Built-in sensors: Magnet embedded for proximity switch compatibility
High-precision long-stroke cylinder with micrometer-style stroke adjustment mechanism (external locking nut). Features wear-resistant rod coating and dual anti-rotation guides for stable linear motion. Includes shock-absorbing end caps and dust-resistant wiper seals. Requires 40μm filtered air with ISO VG32 lubricant.
Industrial Applications:
- Automated assembly line positioning systems
- Material handling elevator controls
- Automotive welding fixture actuators
- Packaging machine pusher mechanisms
- Solar panel cleaning robot arms
Installation guidelines:
Maximum side load ≤15% of thrust capacity. For vertical installations,
use counterbalance valves. Adjust cushioning screws gradually during
commissioning (1/4 turn increments).
Maintenance alert:
Re-lubricate every 500km of cumulative travel. Avoid using silicone-based
lubricants which may degrade NBR seals.
| Property | Property Value |
|---|---|
| sku | SAUJ63X900-30 |
| Adjustable Stroke | 30mm |
| Seal Material | Polyurethane |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT3/8 |
| Magnet | Non-magnetic |
| Bore Diameter | 63mm |
| Stroke | <900mm> |
