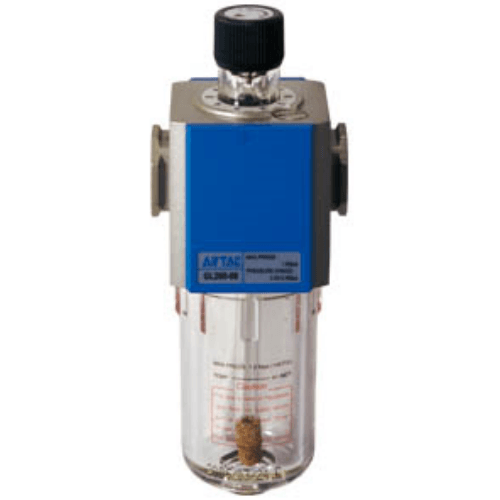

AirTAC GL600-20 Lubricator (GL60020)
The AirTAC AirTAC GL600-20 Lubricator (GL60020) is a genuine G-series air lubricator. It meters an oil mist into the compressed-air line so cylinders, valves and air tools downstream stay lubricated, with PT3/4" ports and a aluminium alloy oil bowl. A lubricator does not filter or regulate — it goes last in the line, after the filter and the regulator.
- TypeAir lubricator
- Port sizePT3/4"
- Inlet pressure0.05 - 1.0 MPa
- Oil bowlAluminium alloy
- ThreadPT
- BracketMounting bracket included
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the AirTAC GL600-20 Lubricator (GL60020)
The AirTAC GL60020 is a G-series air lubricator: it adds a controlled oil mist to compressed air so downstream cylinders, valves and air tools stay lubricated. It carries no filter and no pressure regulator - lubrication is its only function. This unit is size 600 with PT3/4 ports and an aluminium alloy bowl, and a mounting bracket is included. Maximum working pressure is 1.0 MPa (145 psi); operating temperature is -5 to 70 C, non-freezing.
This is a genuine AirTAC part. The G-series lubricator range runs from size 200 to size 600 with ports from 1/8 in to 1 in, PT as the standard thread and G (BSPP) or NPT as catalogue options; the bracket can be included or omitted with a J suffix. AirTAC publishes flow for this series as curves rather than a single rating, so ask us and we will confirm the datasheet figures for your application on request.
AirTAC GL600-20 Lubricator (GL60020) Technical Specifications
| Model | AirTAC GL600-20 Lubricator (GL60020) |
|---|---|
| Series | GL600 air lubricator |
| Port size | PT3/4" (PT thread) |
| Oil bowl material | Aluminium alloy |
| Bracket | Mounting bracket included |
| Fluid | Compressed air |
|---|---|
| Inlet pressure | 0.05 - 1.0 MPa (7 - 145 psi) |
| Max. working pressure | 1.0 MPa (145 psi) |
| Temperature range | -5 to +70 °C (unfreeze) |
| Function | Oil-mist lubrication only |
Specifications follow the official AirTAC G-series air-preparation data. A lubricator has no drain, no regulating mechanism, no gauge and no filter element, so none of those figures apply. Oil grade, bowl capacity, flow curves, weight and outline dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
Model Code: AirTAC GL600-20 Lubricator (GL60020)
| GL600 | G-series air lubricator, 600 body — sets the port range. |
|---|---|
| 20 | Port size PT3/4". This body offers 20 = PT3/4", 25 = PT1". |
| (blank) | Mounting bracket included. A bracket ships by default; J orders it without. |
| (blank) | PT thread. PT is the default; G is BSPP and T is NPT. |
The lubricator has the shortest code of the six G-series subfamilies — size, port, bracket, thread. There is no drain, pressure-type, gauge or filtering-grade position. Example: GL300-10JG is a 300 body, PT3/8", no bracket, G (BSPP) thread.
Size Class
- GL200PT1/8" - PT1/4"
- GL300PT1/4" - PT1/2"
- GL400PT3/8" - PT1/2"
- GL600PT3/4" - PT1"
A larger body carries a larger port and passes more air. AirTAC publishes flow only as curves, so size the body from your peak demand with headroom. The GL600 uses an aluminium-alloy oil bowl; the 200, 300 and 400 bodies use PC.
| This model | GL600 · PT3/4" |
|---|---|
| One size down | GL400 |
| Line order | Filter first, then regulator, lubricator last |
Where the AirTAC GL600-20 Lubricator (GL60020) Is Used
Bottling-line conveyor drives
Fits the 3/4 in air drop feeding pneumatic drives and diverters on a bottling-line conveyor, delivering a steady oil mist to the cylinders that index and divert bottles.
Stamping department die clamps
Installed on the plant-air main at a stamping department, it lubricates the air feeding die clamps and part-ejector cylinders running on 3/4 in circuits.
Commercial-vehicle service bay
At a truck and bus service depot, it meters oil into the shop-air drop feeding heavy impact guns, bead breakers and lift cylinders on 3/4 in lines.
Is the AirTAC GL600-20 Lubricator (GL60020) the Right Lubricator?
Step up to a size 600 body when the line runs 3/4 in piping and needs the larger oil delivery of the biggest G-series lubricator; the 600 series also accepts a 1 in port (GL60025) for the largest circuits. Thread here is PT as standard, with G (BSPP) and NPT as options, and the mounting bracket is included on this code. AirTAC publishes lubricator flow as curves, not a single rated number, so send us your line size and air demand and we will confirm sizing against the datasheet before you order.
Quick checklist
- ✓ Body size for your peak flow (PT3/4" here)
- ✓ Downstream equipment actually needs oil
- ✓ Thread PT, G (BSPP) or NPT
- ✓ Bracket needed, or order with J
- ✓ Bowl material: PC, or aluminium on GL600
- ✓ Fit after the filter and regulator
Installation & Maintenance Notes
- check Fit last in the line: filter, then regulator, then lubricator.
- check Mount vertically, bowl down, following the airflow arrow.
- check Keep inlet pressure within 0.05 - 1.0 MPa.
- check Use only oil approved for pneumatic lubricators.
- check Keep the unit above freezing (-5 to +70 °C, unfreeze).
- check Check the oil level regularly; top up before it runs dry.
The aluminium-alloy bowl on the GL600 suits harsher environments than a PC bowl. The oil mist travels downstream, so if any branch of the line must stay oil-free, take that branch off before the lubricator. We will confirm the recommended oil grade from the factory datasheet on request.
AirTAC GL600-20 Lubricator (GL60020) FAQ
AirTAC publishes lubricator flow as curves rather than a single rated figure, so there is no one number we can quote honestly. Give us your line pressure, port size and air demand and we will confirm the correct sizing from the datasheet on request.
Follow your piping: the GL60020 is the size 600 body with 3/4 in ports, while sizes 200, 300 and 400 cover 1/8 in to 1/2 in lines. The 600 body uses an aluminium alloy bowl and suits the largest circuits; if your line is 1 in, the GL60025 with PT1 ports is the matching step.
