AirTAC SDAJ Series · Ø25 mm stroke-adjustable thin compact cylinder

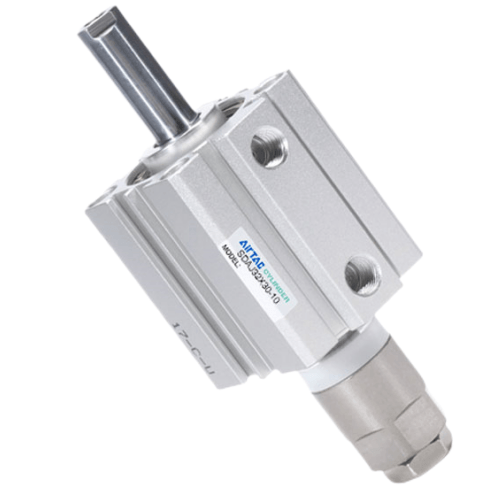

AirTAC SDAJ25 Adjustable-Stroke Cylinder, 25 mm Bore
Every AirTAC SDAJ25 configuration on one page: 401 stock order codes with strokes from 5 to 140 mm, 1 adjustment values (10-100 mm), 1 mounting style and magnet, seal and thread versions, from $28.14. Pick a stroke, adjustment, mounting and version to see the exact order code and price.
This combination is not a stock order code. Request a quote and we will confirm availability and price.
$28.14
$35.64Save 21%
Request a Quote
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the AirTAC SDAJ25
The AirTAC SDAJ25 is a double-acting stroke-adjustable thin compact cylinder with a 25 mm bore and a 10 mm piston rod. At 0.5 MPa it pushes 245 N and pulls 206 N; at 0.7 MPa that rises to 344 N push and 289 N pull. A rear stroke-adjustment screw lets you shorten the travel by up to the adjustment amount in the code (10-100 mm across the codes on this page). Force depends on bore and pressure only, so every stroke on this page gives the same output.
All SDAJ25 versions share M5 air ports, an M5×0.8 female rod thread (B versions have a M8×1.25 male rod end) and rubber bumpers at both ends. The cylinder runs on filtered air between 0.15 and 1.0 MPa (proof 1.5 MPa), from -20 to +70 °C, at 30 to 500 mm/s. This page lists 401 stock order codes with strokes from 5 to 140 mm; catalog standard strokes run up to 120 mm, and the longer codes are non-standard strokes we already supply.
SDAJ25 Technical Specifications
| Bore size | Ø25 mm |
|---|---|
| Stock strokes | 5 – 140 mm |
| Catalog standard stroke | up to 120 mm (longer on request) |
| Acting type | Double acting |
| Port size | M5 (PT standard) |
| Piston rod / rod thread | Ø10 mm / M5×0.8 female; M8×1.25 male (B) |
| Fluid | Air (filtered by 40 µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 500 mm/s |
| Cushion | Rubber bumper at both ends |
Source: official AirTAC SDA compact-cylinder datasheet. Fixed NBR bumpers at both ends. B = male rod end; blank = female rod end.
Theoretical output force (Ø25 mm)
| Pressure | Push | Pull |
|---|---|---|
| 0.5 MPa | 245 N | 206 N |
| 0.7 MPa | 344 N | 289 N |
Push = pressure × bore area; pull subtracts the Ø10 mm rod area. Usable force is lower because of friction and back-pressure.
How the SDAJ25 Order Code Is Built
| SDAJ25 | Series and bore (25 mm) |
|---|---|
| X100 | Stroke in mm |
| -10 | Stroke adjustment in mm (10, 20, 30, 40, 50, 75, 100) |
| S | Built-in magnet for position sensors (blank = none) |
| B | Male threaded rod end (blank = female) |
| - | Mounting: basic only |
| H / N | Seal: H = FKM, N = NBR (blank = standard seal) |
| G | Port thread: G = G (BSPP), blank = PT |
All AirTAC SDAJ25 Order Codes (401)
Each order code links to its own datasheet page. Use Select to load it into the configurator above.
| Order code | Stroke (mm) | Adjust (mm) | Mounting · Magnet · Rod end · Seal · Thread | Price | Select |
|---|---|---|---|---|---|
| SDAJ25X5-10 | 5 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $28.14 | |
| SDAJ25X5-10B | 5 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $28.14 | |
| SDAJ25X5-10S | 5 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $32.99 | |
| SDAJ25X5-10SB | 5 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $32.99 | |
| SDAJ25X10-10 | 10 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $28.34 | |
| SDAJ25X10-10H | 10 mm | 10 mm | Basic (no mounting) · - · female rod · FKM · PT | $33.46 | |
| SDAJ25X10-10B | 10 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $28.34 | |
| SDAJ25X10-10BH | 10 mm | 10 mm | Basic (no mounting) · - · male rod (B) · FKM · PT | $33.46 | |
| SDAJ25X10-10S | 10 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $33.46 | |
| SDAJ25X10-10SH | 10 mm | 10 mm | Basic (no mounting) · S · female rod · FKM · PT | $38.58 | |
| SDAJ25X10-10SB | 10 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $33.46 | |
| SDAJ25X15-10 | 15 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $29.53 | |
| SDAJ25X15-10B | 15 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $29.53 | |
| SDAJ25X15-10S | 15 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $34.65 | |
| SDAJ25X15-10SB | 15 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $34.65 | |
| SDAJ25X15-20 | 15 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $29.53 | |
| SDAJ25X15-20B | 15 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $29.53 | |
| SDAJ25X15-20S | 15 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $34.65 | |
| SDAJ25X15-20SB | 15 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $34.65 | |
| SDAJ25X20-10 | 20 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $30.00 | |
| SDAJ25X20-10B | 20 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $30.00 | |
| SDAJ25X20-10S | 20 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $35.58 | |
| SDAJ25X20-10SB | 20 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $35.58 | |
| SDAJ25X20-20 | 20 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $30.00 | |
| SDAJ25X20-20B | 20 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $30.00 | |
| SDAJ25X20-20S | 20 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $35.58 | |
| SDAJ25X20-20SB | 20 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $35.58 | |
| SDAJ25X25-10 | 25 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $31.13 | |
| SDAJ25X25-10B | 25 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $31.13 | |
| SDAJ25X25-10S | 25 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $36.51 | |
| SDAJ25X25-10SB | 25 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $36.51 | |
| SDAJ25X25-20 | 25 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $31.13 | |
| SDAJ25X25-20B | 25 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $31.13 | |
| SDAJ25X25-20S | 25 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $36.51 | |
| SDAJ25X25-20SB | 25 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $36.51 | |
| SDAJ25X25-30 | 25 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $31.13 | |
| SDAJ25X25-30B | 25 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $31.13 | |
| SDAJ25X25-30S | 25 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $36.51 | |
| SDAJ25X25-30SB | 25 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $36.51 | |
| SDAJ25X30-10 | 30 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $32.07 | |
| SDAJ25X30-10B | 30 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $32.07 | |
| SDAJ25X30-10S | 30 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $37.44 | |
| SDAJ25X30-10SB | 30 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $37.44 | |
| SDAJ25X30-20 | 30 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $32.07 | |
| SDAJ25X30-20B | 30 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $32.07 | |
| SDAJ25X30-20S | 30 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $37.44 | |
| SDAJ25X30-20SB | 30 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $37.44 | |
| SDAJ25X30-30 | 30 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $32.07 | |
| SDAJ25X30-30B | 30 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $32.07 | |
| SDAJ25X30-30S | 30 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $37.44 | |
| SDAJ25X30-30SB | 30 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $37.44 | |
| SDAJ25X35-10 | 35 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $32.99 | |
| SDAJ25X35-10B | 35 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $32.99 | |
| SDAJ25X35-10S | 35 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $38.37 | |
| SDAJ25X35-10SB | 35 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $38.37 | |
| SDAJ25X35-20 | 35 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $32.99 | |
| SDAJ25X35-20B | 35 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $32.99 | |
| SDAJ25X35-20S | 35 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $38.37 | |
| SDAJ25X35-20SB | 35 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $38.37 | |
| SDAJ25X35-30 | 35 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $32.99 | |
| SDAJ25X35-30B | 35 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $32.99 | |
| SDAJ25X35-30S | 35 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $38.37 | |
| SDAJ25X35-30SB | 35 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $38.37 | |
| SDAJ25X35-40 | 35 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $32.99 | |
| SDAJ25X35-40B | 35 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $32.99 | |
| SDAJ25X35-40S | 35 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $38.37 | |
| SDAJ25X35-40SB | 35 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $38.37 | |
| SDAJ25X40-10 | 40 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $33.93 | |
| SDAJ25X40-10B | 40 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $33.93 | |
| SDAJ25X40-10S | 40 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $39.77 | |
| SDAJ25X40-10SB | 40 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $39.77 | |
| SDAJ25X40-20 | 40 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $33.93 | |
| SDAJ25X40-20H | 40 mm | 20 mm | Basic (no mounting) · - · female rod · FKM · PT | $39.04 | |
| SDAJ25X40-20B | 40 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $33.93 | |
| SDAJ25X40-20S | 40 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $39.77 | |
| SDAJ25X40-20SB | 40 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $39.77 | |
| SDAJ25X40-30 | 40 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $33.93 | |
| SDAJ25X40-30B | 40 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $33.93 | |
| SDAJ25X40-30S | 40 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $39.77 | |
| SDAJ25X40-30SB | 40 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $39.77 | |
| SDAJ25X40-40 | 40 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $33.93 | |
| SDAJ25X40-40B | 40 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $33.93 | |
| SDAJ25X40-40S | 40 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $39.77 | |
| SDAJ25X40-40SB | 40 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $39.77 | |
| SDAJ25X45-10 | 45 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $34.86 | |
| SDAJ25X45-10B | 45 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $34.86 | |
| SDAJ25X45-10S | 45 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $40.70 | |
| SDAJ25X45-10SH | 45 mm | 10 mm | Basic (no mounting) · S · female rod · FKM · PT | $45.82 | |
| SDAJ25X45-10SB | 45 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $40.70 | |
| SDAJ25X45-20 | 45 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $34.86 | |
| SDAJ25X45-20B | 45 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $34.86 | |
| SDAJ25X45-20S | 45 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $40.70 | |
| SDAJ25X45-20SB | 45 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $40.70 | |
| SDAJ25X45-30 | 45 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $34.86 | |
| SDAJ25X45-30B | 45 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $34.86 | |
| SDAJ25X45-30S | 45 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $40.70 | |
| SDAJ25X45-30SB | 45 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $40.70 | |
| SDAJ25X45-40 | 45 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $34.86 | |
| SDAJ25X45-40B | 45 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $34.86 | |
| SDAJ25X45-40S | 45 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $40.70 | |
| SDAJ25X45-40SB | 45 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $40.70 | |
| SDAJ25X45-50 | 45 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $34.86 | |
| SDAJ25X45-50B | 45 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $34.86 | |
| SDAJ25X45-50S | 45 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $40.70 | |
| SDAJ25X45-50SB | 45 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $40.70 | |
| SDAJ25X50-10 | 50 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $36.25 | |
| SDAJ25X50-10B | 50 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $36.25 | |
| SDAJ25X50-10S | 50 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $41.63 | |
| SDAJ25X50-10SB | 50 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $41.63 | |
| SDAJ25X50-20 | 50 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $36.25 | |
| SDAJ25X50-20H | 50 mm | 20 mm | Basic (no mounting) · - · female rod · FKM · PT | $41.37 | |
| SDAJ25X50-20B | 50 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $36.25 | |
| SDAJ25X50-20S | 50 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $41.63 | |
| SDAJ25X50-20SB | 50 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $41.63 | |
| SDAJ25X50-30 | 50 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $36.25 | |
| SDAJ25X50-30B | 50 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $36.25 | |
| SDAJ25X50-30S | 50 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $41.63 | |
| SDAJ25X50-30SB | 50 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $41.63 | |
| SDAJ25X50-40 | 50 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $36.25 | |
| SDAJ25X50-40B | 50 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $36.25 | |
| SDAJ25X50-40S | 50 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $41.63 | |
| SDAJ25X50-40SB | 50 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $41.63 | |
| SDAJ25X50-50 | 50 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $36.25 | |
| SDAJ25X50-50B | 50 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $36.25 | |
| SDAJ25X50-50S | 50 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $41.63 | |
| SDAJ25X50-50SB | 50 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $41.63 | |
| SDAJ25X55-10 | 55 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $37.19 | |
| SDAJ25X55-10B | 55 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $37.19 | |
| SDAJ25X55-10S | 55 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $42.56 | |
| SDAJ25X55-10SH | 55 mm | 10 mm | Basic (no mounting) · S · female rod · FKM · PT | $47.68 | |
| SDAJ25X55-10SB | 55 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $42.56 | |
| SDAJ25X55-20 | 55 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $37.19 | |
| SDAJ25X55-20B | 55 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $37.19 | |
| SDAJ25X55-20S | 55 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $42.56 | |
| SDAJ25X55-20SB | 55 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $42.56 | |
| SDAJ25X55-30 | 55 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $37.19 | |
| SDAJ25X55-30B | 55 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $37.19 | |
| SDAJ25X55-30S | 55 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $42.56 | |
| SDAJ25X55-30SB | 55 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $42.56 | |
| SDAJ25X55-40 | 55 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $37.19 | |
| SDAJ25X55-40B | 55 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $37.19 | |
| SDAJ25X55-40S | 55 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $42.56 | |
| SDAJ25X55-40SB | 55 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $42.56 | |
| SDAJ25X55-50 | 55 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $37.19 | |
| SDAJ25X55-50B | 55 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $37.19 | |
| SDAJ25X55-50S | 55 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $42.56 | |
| SDAJ25X55-50SB | 55 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $42.56 | |
| SDAJ25X55-75S | 55 mm | 75 mm | Basic (no mounting) · S · female rod · std seal · PT | $42.56 | |
| SDAJ25X55-75SB | 55 mm | 75 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $42.56 | |
| SDAJ25X60-10 | 60 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $38.11 | |
| SDAJ25X60-10B | 60 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $38.11 | |
| SDAJ25X60-10S | 60 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $43.49 | |
| SDAJ25X60-10SB | 60 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $43.49 | |
| SDAJ25X60-20 | 60 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $38.11 | |
| SDAJ25X60-20B | 60 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $38.11 | |
| SDAJ25X60-20S | 60 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $43.49 | |
| SDAJ25X60-20SB | 60 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $43.49 | |
| SDAJ25X60-30 | 60 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $38.11 | |
| SDAJ25X60-30B | 60 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $38.11 | |
| SDAJ25X60-30S | 60 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $43.49 | |
| SDAJ25X60-30SB | 60 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $43.49 | |
| SDAJ25X60-40 | 60 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $38.11 | |
| SDAJ25X60-40B | 60 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $38.11 | |
| SDAJ25X60-40S | 60 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $43.49 | |
| SDAJ25X60-40SB | 60 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $43.49 | |
| SDAJ25X60-50 | 60 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $38.11 | |
| SDAJ25X60-50B | 60 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $38.11 | |
| SDAJ25X60-50S | 60 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $43.49 | |
| SDAJ25X60-50SB | 60 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $43.49 | |
| SDAJ25X60-75B | 60 mm | 75 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $38.11 | |
| SDAJ25X60-75S | 60 mm | 75 mm | Basic (no mounting) · S · female rod · std seal · PT | $43.49 | |
| SDAJ25X60-75SB | 60 mm | 75 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $43.49 | |
| SDAJ25X65-10 | 65 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $39.04 | |
| SDAJ25X65-10B | 65 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $39.04 | |
| SDAJ25X65-10S | 65 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $44.63 | |
| SDAJ25X65-10SB | 65 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $44.63 | |
| SDAJ25X65-20 | 65 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $39.04 | |
| SDAJ25X65-20B | 65 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $39.04 | |
| SDAJ25X65-20S | 65 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $44.63 | |
| SDAJ25X65-20SB | 65 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $44.63 | |
| SDAJ25X65-30 | 65 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $39.04 | |
| SDAJ25X65-30B | 65 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $39.04 | |
| SDAJ25X65-30S | 65 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $44.63 | |
| SDAJ25X65-30SB | 65 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $44.63 | |
| SDAJ25X65-40 | 65 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $39.04 | |
| SDAJ25X65-40B | 65 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $39.04 | |
| SDAJ25X65-40S | 65 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $44.63 | |
| SDAJ25X65-40SB | 65 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $44.63 | |
| SDAJ25X65-50 | 65 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $39.04 | |
| SDAJ25X65-50B | 65 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $39.04 | |
| SDAJ25X65-50S | 65 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $44.63 | |
| SDAJ25X65-50SB | 65 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $44.63 | |
| SDAJ25X65-75S | 65 mm | 75 mm | Basic (no mounting) · S · female rod · std seal · PT | $44.63 | |
| SDAJ25X65-75SB | 65 mm | 75 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $44.63 | |
| SDAJ25X70-10 | 70 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $39.98 | |
| SDAJ25X70-10B | 70 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $39.98 | |
| SDAJ25X70-10S | 70 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $46.49 | |
| SDAJ25X70-10SB | 70 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $46.49 | |
| SDAJ25X70-20 | 70 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $39.98 | |
| SDAJ25X70-20B | 70 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $39.98 | |
| SDAJ25X70-20S | 70 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $46.49 | |
| SDAJ25X70-20SB | 70 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $46.49 | |
| SDAJ25X70-30 | 70 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $39.98 | |
| SDAJ25X70-30B | 70 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $39.98 | |
| SDAJ25X70-30S | 70 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $46.49 | |
| SDAJ25X70-30SB | 70 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $46.49 | |
| SDAJ25X70-40 | 70 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $39.98 | |
| SDAJ25X70-40B | 70 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $39.98 | |
| SDAJ25X70-40S | 70 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $46.49 | |
| SDAJ25X70-40SB | 70 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $46.49 | |
| SDAJ25X70-50 | 70 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $39.98 | |
| SDAJ25X70-50B | 70 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $39.98 | |
| SDAJ25X70-50S | 70 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $46.49 | |
| SDAJ25X70-50SB | 70 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $46.49 | |
| SDAJ25X70-75 | 70 mm | 75 mm | Basic (no mounting) · - · female rod · std seal · PT | $39.98 | |
| SDAJ25X70-75B | 70 mm | 75 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $39.98 | |
| SDAJ25X70-75S | 70 mm | 75 mm | Basic (no mounting) · S · female rod · std seal · PT | $46.49 | |
| SDAJ25X70-75SB | 70 mm | 75 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $46.49 | |
| SDAJ25X75-10 | 75 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $41.17 | |
| SDAJ25X75-10B | 75 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $41.17 | |
| SDAJ25X75-10S | 75 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $48.35 | |
| SDAJ25X75-10SB | 75 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $48.35 | |
| SDAJ25X75-20 | 75 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $41.17 | |
| SDAJ25X75-20B | 75 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $41.17 | |
| SDAJ25X75-20S | 75 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $48.35 | |
| SDAJ25X75-20SB | 75 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $48.35 | |
| SDAJ25X75-30 | 75 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $41.17 | |
| SDAJ25X75-30B | 75 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $41.17 | |
| SDAJ25X75-30S | 75 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $48.35 | |
| SDAJ25X75-30SB | 75 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $48.35 | |
| SDAJ25X75-40 | 75 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $41.17 | |
| SDAJ25X75-40B | 75 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $41.17 | |
| SDAJ25X75-40S | 75 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $48.35 | |
| SDAJ25X75-40SB | 75 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $48.35 | |
| SDAJ25X75-50 | 75 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $41.17 | |
| SDAJ25X75-50B | 75 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $41.17 | |
| SDAJ25X75-50S | 75 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $48.35 | |
| SDAJ25X75-50SB | 75 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $48.35 | |
| SDAJ25X75-75B | 75 mm | 75 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $41.17 | |
| SDAJ25X75-75S | 75 mm | 75 mm | Basic (no mounting) · S · female rod · std seal · PT | $48.35 | |
| SDAJ25X75-75SB | 75 mm | 75 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $48.35 | |
| SDAJ25X80-10 | 80 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $43.23 | |
| SDAJ25X80-10B | 80 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $43.23 | |
| SDAJ25X80-10S | 80 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $50.68 | |
| SDAJ25X80-10SB | 80 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $50.68 | |
| SDAJ25X80-20 | 80 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $43.23 | |
| SDAJ25X80-20B | 80 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $43.23 | |
| SDAJ25X80-20S | 80 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $50.68 | |
| SDAJ25X80-20SB | 80 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $50.68 | |
| SDAJ25X80-30 | 80 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $43.23 | |
| SDAJ25X80-30B | 80 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $43.23 | |
| SDAJ25X80-30S | 80 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $50.68 | |
| SDAJ25X80-30SB | 80 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $50.68 | |
| SDAJ25X80-40 | 80 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $43.23 | |
| SDAJ25X80-40B | 80 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $43.23 | |
| SDAJ25X80-40S | 80 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $50.68 | |
| SDAJ25X80-40SB | 80 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $50.68 | |
| SDAJ25X80-50 | 80 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $43.23 | |
| SDAJ25X80-50B | 80 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $43.23 | |
| SDAJ25X80-50S | 80 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $50.68 | |
| SDAJ25X80-50SB | 80 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $50.68 | |
| SDAJ25X80-75 | 80 mm | 75 mm | Basic (no mounting) · - · female rod · std seal · PT | $43.23 | |
| SDAJ25X80-75B | 80 mm | 75 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $43.23 | |
| SDAJ25X80-75S | 80 mm | 75 mm | Basic (no mounting) · S · female rod · std seal · PT | $50.68 | |
| SDAJ25X80-75SB | 80 mm | 75 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $50.68 | |
| SDAJ25X80-100B | 80 mm | 100 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $43.23 | |
| SDAJ25X80-100S | 80 mm | 100 mm | Basic (no mounting) · S · female rod · std seal · PT | $50.68 | |
| SDAJ25X85-10 | 85 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $45.09 | |
| SDAJ25X85-10B | 85 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $45.09 | |
| SDAJ25X85-10S | 85 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $53.26 | |
| SDAJ25X85-10SB | 85 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $53.26 | |
| SDAJ25X85-20 | 85 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $45.09 | |
| SDAJ25X85-20B | 85 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $45.09 | |
| SDAJ25X85-20S | 85 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $53.26 | |
| SDAJ25X85-20SB | 85 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $53.26 | |
| SDAJ25X85-30 | 85 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $45.09 | |
| SDAJ25X85-30B | 85 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $45.09 | |
| SDAJ25X85-30S | 85 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $53.26 | |
| SDAJ25X85-30SB | 85 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $53.26 | |
| SDAJ25X85-40 | 85 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $45.09 | |
| SDAJ25X85-40B | 85 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $45.09 | |
| SDAJ25X85-40S | 85 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $53.26 | |
| SDAJ25X85-40SB | 85 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $53.26 | |
| SDAJ25X85-50 | 85 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $45.09 | |
| SDAJ25X85-50B | 85 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $45.09 | |
| SDAJ25X85-50S | 85 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $53.26 | |
| SDAJ25X85-50SB | 85 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $53.26 | |
| SDAJ25X85-75 | 85 mm | 75 mm | Basic (no mounting) · - · female rod · std seal · PT | $45.09 | |
| SDAJ25X85-75B | 85 mm | 75 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $45.09 | |
| SDAJ25X85-75S | 85 mm | 75 mm | Basic (no mounting) · S · female rod · std seal · PT | $53.26 | |
| SDAJ25X85-75SB | 85 mm | 75 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $53.26 | |
| SDAJ25X85-100B | 85 mm | 100 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $45.09 | |
| SDAJ25X85-100S | 85 mm | 100 mm | Basic (no mounting) · S · female rod · std seal · PT | $53.26 | |
| SDAJ25X90-10 | 90 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $47.21 | |
| SDAJ25X90-10B | 90 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $47.21 | |
| SDAJ25X90-10S | 90 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $55.12 | |
| SDAJ25X90-10SB | 90 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $55.12 | |
| SDAJ25X90-20 | 90 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $47.21 | |
| SDAJ25X90-20B | 90 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $47.21 | |
| SDAJ25X90-20S | 90 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $55.12 | |
| SDAJ25X90-20SB | 90 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $55.12 | |
| SDAJ25X90-30 | 90 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $47.21 | |
| SDAJ25X90-30B | 90 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $47.21 | |
| SDAJ25X90-30S | 90 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $55.12 | |
| SDAJ25X90-30SB | 90 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $55.12 | |
| SDAJ25X90-40 | 90 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $47.21 | |
| SDAJ25X90-40B | 90 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $47.21 | |
| SDAJ25X90-40S | 90 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $55.12 | |
| SDAJ25X90-40SB | 90 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $55.12 | |
| SDAJ25X90-50 | 90 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $47.21 | |
| SDAJ25X90-50B | 90 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $47.21 | |
| SDAJ25X90-50S | 90 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $55.12 | |
| SDAJ25X90-50SB | 90 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $55.12 | |
| SDAJ25X90-75 | 90 mm | 75 mm | Basic (no mounting) · - · female rod · std seal · PT | $47.21 | |
| SDAJ25X90-75B | 90 mm | 75 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $47.21 | |
| SDAJ25X90-75S | 90 mm | 75 mm | Basic (no mounting) · S · female rod · std seal · PT | $55.12 | |
| SDAJ25X90-75SB | 90 mm | 75 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $55.12 | |
| SDAJ25X90-100B | 90 mm | 100 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $47.21 | |
| SDAJ25X90-100S | 90 mm | 100 mm | Basic (no mounting) · S · female rod · std seal · PT | $55.12 | |
| SDAJ25X100-10 | 100 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $51.61 | |
| SDAJ25X100-10B | 100 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $51.61 | |
| SDAJ25X100-10S | 100 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $59.98 | |
| SDAJ25X100-10SB | 100 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $59.98 | |
| SDAJ25X100-20 | 100 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $51.61 | |
| SDAJ25X100-20B | 100 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $51.61 | |
| SDAJ25X100-20S | 100 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $59.98 | |
| SDAJ25X100-20SB | 100 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $59.98 | |
| SDAJ25X100-30 | 100 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $51.61 | |
| SDAJ25X100-30B | 100 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $51.61 | |
| SDAJ25X100-30S | 100 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $59.98 | |
| SDAJ25X100-30SB | 100 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $59.98 | |
| SDAJ25X100-40 | 100 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $51.61 | |
| SDAJ25X100-40B | 100 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $51.61 | |
| SDAJ25X100-40S | 100 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $59.98 | |
| SDAJ25X100-40SB | 100 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $59.98 | |
| SDAJ25X100-50 | 100 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $51.61 | |
| SDAJ25X100-50B | 100 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $51.61 | |
| SDAJ25X100-50S | 100 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $59.98 | |
| SDAJ25X100-50SB | 100 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $59.98 | |
| SDAJ25X100-75 | 100 mm | 75 mm | Basic (no mounting) · - · female rod · std seal · PT | $51.61 | |
| SDAJ25X100-75B | 100 mm | 75 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $51.61 | |
| SDAJ25X100-75S | 100 mm | 75 mm | Basic (no mounting) · S · female rod · std seal · PT | $59.98 | |
| SDAJ25X100-75SB | 100 mm | 75 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $59.98 | |
| SDAJ25X100-100 | 100 mm | 100 mm | Basic (no mounting) · - · female rod · std seal · PT | $51.61 | |
| SDAJ25X100-100B | 100 mm | 100 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $51.61 | |
| SDAJ25X100-100S | 100 mm | 100 mm | Basic (no mounting) · S · female rod · std seal · PT | $59.98 | |
| SDAJ25X110-10 | 110 mm | 10 mm | Basic (no mounting) · - · female rod · std seal · PT | $56.73 | |
| SDAJ25X110-10B | 110 mm | 10 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $56.73 | |
| SDAJ25X110-10S | 110 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $64.89 | |
| SDAJ25X110-10SB | 110 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $64.89 | |
| SDAJ25X110-20 | 110 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $56.73 | |
| SDAJ25X110-20B | 110 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $56.73 | |
| SDAJ25X110-20S | 110 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $64.89 | |
| SDAJ25X110-20SB | 110 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $64.89 | |
| SDAJ25X110-30 | 110 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $56.73 | |
| SDAJ25X110-30B | 110 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $56.73 | |
| SDAJ25X110-30S | 110 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $64.89 | |
| SDAJ25X110-30SB | 110 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $64.89 | |
| SDAJ25X110-40 | 110 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $56.73 | |
| SDAJ25X110-40B | 110 mm | 40 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $56.73 | |
| SDAJ25X110-40S | 110 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $64.89 | |
| SDAJ25X110-40SB | 110 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $64.89 | |
| SDAJ25X110-50 | 110 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $56.73 | |
| SDAJ25X110-50B | 110 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $56.73 | |
| SDAJ25X110-50S | 110 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $64.89 | |
| SDAJ25X110-50SB | 110 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $64.89 | |
| SDAJ25X110-75 | 110 mm | 75 mm | Basic (no mounting) · - · female rod · std seal · PT | $56.73 | |
| SDAJ25X110-75B | 110 mm | 75 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $56.73 | |
| SDAJ25X110-75S | 110 mm | 75 mm | Basic (no mounting) · S · female rod · std seal · PT | $64.89 | |
| SDAJ25X110-75SB | 110 mm | 75 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $64.89 | |
| SDAJ25X110-100B | 110 mm | 100 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $56.73 | |
| SDAJ25X110-100S | 110 mm | 100 mm | Basic (no mounting) · S · female rod · std seal · PT | $64.89 | |
| SDAJ25X120-10S | 120 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $70.22 | |
| SDAJ25X120-10SB | 120 mm | 10 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $70.22 | |
| SDAJ25X120-20S | 120 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $70.22 | |
| SDAJ25X120-20SB | 120 mm | 20 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $70.22 | |
| SDAJ25X120-30 | 120 mm | 30 mm | Basic (no mounting) · - · female rod · std seal · PT | $61.38 | |
| SDAJ25X120-30S | 120 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $70.22 | |
| SDAJ25X120-30SB | 120 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $70.22 | |
| SDAJ25X120-40 | 120 mm | 40 mm | Basic (no mounting) · - · female rod · std seal · PT | $61.38 | |
| SDAJ25X120-40S | 120 mm | 40 mm | Basic (no mounting) · S · female rod · std seal · PT | $70.22 | |
| SDAJ25X120-40SB | 120 mm | 40 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $70.22 | |
| SDAJ25X120-50 | 120 mm | 50 mm | Basic (no mounting) · - · female rod · std seal · PT | $61.38 | |
| SDAJ25X120-50B | 120 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $61.38 | |
| SDAJ25X120-50S | 120 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $70.22 | |
| SDAJ25X120-50SB | 120 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $70.22 | |
| SDAJ25X120-75 | 120 mm | 75 mm | Basic (no mounting) · - · female rod · std seal · PT | $61.38 | |
| SDAJ25X120-75B | 120 mm | 75 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $61.38 | |
| SDAJ25X120-100 | 120 mm | 100 mm | Basic (no mounting) · - · female rod · std seal · PT | $61.38 | |
| SDAJ25X120-100SB | 120 mm | 100 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $70.22 | |
| SDAJ25X130-10S | 130 mm | 10 mm | Basic (no mounting) · S · female rod · std seal · PT | $75.59 | |
| SDAJ25X130-20 | 130 mm | 20 mm | Basic (no mounting) · - · female rod · std seal · PT | $66.75 | |
| SDAJ25X130-20B | 130 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $66.75 | |
| SDAJ25X130-20S | 130 mm | 20 mm | Basic (no mounting) · S · female rod · std seal · PT | $75.59 | |
| SDAJ25X130-30B | 130 mm | 30 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $66.75 | |
| SDAJ25X130-30S | 130 mm | 30 mm | Basic (no mounting) · S · female rod · std seal · PT | $75.59 | |
| SDAJ25X130-30SB | 130 mm | 30 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $75.59 | |
| SDAJ25X130-50S | 130 mm | 50 mm | Basic (no mounting) · S · female rod · std seal · PT | $75.59 | |
| SDAJ25X130-50SB | 130 mm | 50 mm | Basic (no mounting) · S · male rod (B) · std seal · PT | $75.59 | |
| SDAJ25X140-20B | 140 mm | 20 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $72.08 | |
| SDAJ25X140-50B | 140 mm | 50 mm | Basic (no mounting) · - · male rod (B) · std seal · PT | $72.08 |
Need a combination that is not listed? Request a quote.
Where the SDAJ25 Is Used
Pick-and-place and transfer
About 245 N at 0.5 MPa suits pushers, stoppers and transfer slides.
Packaging machines
Carton pushers, gates and diverters on packaging lines.
Sensed positioning
Magnet versions report stroke ends to the PLC through cylinder sensors.
Choosing the Right SDAJ25 Configuration
Start with the stroke. Pick the exact travel your machine needs; a longer stroke adds length, weight and air consumption without adding force. If your length is not listed, request a quote and we will confirm whether it can be built.
Then the stroke adjustment (10-100 mm): pick the amount by which you need to trim the stroke on the machine. The cylinder can be set anywhere between full stroke and full stroke minus that amount.
Then choose the mounting. Basic (no code) uses the cylinder's own mounting holes. Foot and flange mountings hold the cylinder rigid for straight-line loads; clevis and trunnion mountings let it pivot when the load moves in an arc.
Finally pick the version: S adds a magnet for position sensors; the standard seal suits general automation; B gives a male threaded rod end instead of the standard female thread; H (FKM) is for higher temperatures or oil-contaminated air.
AirTAC SDAJ25 FAQ
No. Every SDAJ25 gives about 245 N push and 206 N pull at 0.5 MPa, whatever the stroke.
The number after the dash is the adjustable range in mm. An SDAJ25X100-50, for example, can be set to any stroke between 50 and 100 mm with the rear adjusting screw.
M5 ports, PT thread as standard.
Basic mounting. Use foot or flange for straight-line loads, clevis or trunnion when the cylinder must pivot.
Usually yes. Request a quote with the stroke, mounting and version and we will confirm whether it can be built, plus price and lead time.
0.15 to 1.0 MPa operating pressure (proof 1.5 MPa) and -20 to +70 °C on filtered air.
No. You can order a single SDAJ25. Orders are processed and handed to the carrier within 3-5 business days.
Buying the SDAJ25 from AirtacDistr
Genuine AirTAC parts
Every order code on this page is the AirTAC factory part number. Specifications follow the AirTAC Products Catalog 2026A. About us
Ready in 3-5 business days
That is our time to process the order and hand it to the carrier. No minimum order: a single piece can be ordered.
14-day returns, 1-year warranty
Return within 14 days of delivery; the buyer pays return shipping. The warranty covers defects not caused by misuse. Return policy
Engineering help
Send your application details and we will confirm the right order code, usually within 7-8 hours. Ask us
Page data checked against the live catalog on 2026-09-28.
Request a Quote for the SDAJ25
Send the order code, quantity and destination. We confirm price, stock and lead time, usually within 7-8 hours.
Thank you. We received your request for SDAJ25X5-10B and will confirm price, stock and lead time — usually within 7-8 hours.
