AirTAC SCJ Series · Ø125 mm stroke-adjustable tie-rod cylinder

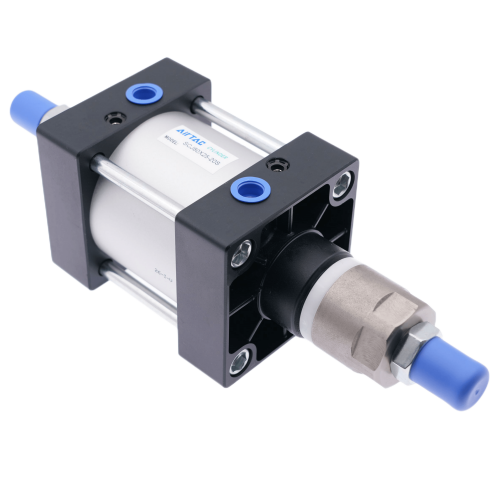

AirTAC SCJ125 Adjustable-Stroke Cylinder, 125 mm Bore
Every AirTAC SCJ125 configuration on one page: 299 stock order codes with strokes from 15 to 1000 mm, 3 adjustment values (10-100 mm), 3 mounting styles and magnet, seal and thread versions, from $186.07. Pick a stroke, adjustment, mounting and version to see the exact order code and price.
This combination is not a stock order code. Request a quote and we will confirm availability and price.
$190.73
$198.23Save 3%
Request a Quote
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the AirTAC SCJ125
The AirTAC SCJ125 is a double-acting stroke-adjustable tie-rod cylinder with a 125 mm bore and a 32 mm piston rod. At 0.5 MPa it pushes 6136 N and pulls 5734 N; at 0.7 MPa that rises to 8590 N push and 8027 N pull. A rear stroke-adjustment screw lets you shorten the travel by up to the adjustment amount in the code (10-100 mm across the codes on this page). Force depends on bore and pressure only, so every stroke on this page gives the same output.
All SCJ125 versions share 1/2" air ports, an M27×2 rod thread and 28 mm adjustable air cushions. The cylinder runs on filtered air between 0.15 and 1.0 MPa (proof 1.5 MPa), from -20 to +70 °C, at 30 to 500 mm/s. This page lists 299 stock order codes with strokes from 15 to 1000 mm; catalog standard strokes run up to 1500 mm.
SCJ125 Technical Specifications
| Bore size | Ø125 mm |
|---|---|
| Stock strokes | 15 – 1000 mm |
| Catalog standard stroke | up to 1500 mm (longer on request) |
| Acting type | Double acting |
| Port size | 1/2" (PT standard) |
| Piston rod / rod thread | Ø32 mm / M27×2 |
| Fluid | Air (filtered by 40 µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 500 mm/s |
| Cushion | Adjustable, 28 mm |
Source: AirTAC Products Catalog 2026A, SC series (SCJ adjustable-stroke version, same body as SC).
Theoretical output force (Ø125 mm)
| Pressure | Push | Pull |
|---|---|---|
| 0.5 MPa | 6136 N | 5734 N |
| 0.7 MPa | 8590 N | 8027 N |
Push = pressure × bore area; pull subtracts the Ø32 mm rod area. Usable force is lower because of friction and back-pressure.
How the SCJ125 Order Code Is Built
| SCJ125 | Series and bore (125 mm) |
|---|---|
| X100 | Stroke in mm |
| -10 | Stroke adjustment in mm (10, 20, 30, 40, 50, 75, 100) |
| S | Built-in magnet for position sensors (blank = none) |
| FA / TC | Mounting: FA front flange, TC center trunnion |
| H / N | Seal: H = FKM, N = NBR (blank = standard seal) |
| G | Port thread: G = G (BSPP), blank = PT |
All AirTAC SCJ125 Order Codes (299)
Each order code links to its own datasheet page. Use Select to load it into the configurator above.
| Order code | Stroke (mm) | Adjust (mm) | Mounting · Magnet · Seal · Thread | Price | Select |
|---|---|---|---|---|---|
| SCJ125X15-10S | 15 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $190.73 | |
| SCJ125X20-20 | 20 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $186.07 | |
| SCJ125X25-10 | 25 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $186.07 | |
| SCJ125X25-10S | 25 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $190.73 | |
| SCJ125X25-20 | 25 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $186.07 | |
| SCJ125X25-20S | 25 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $190.73 | |
| SCJ125X25-30 | 25 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $186.07 | |
| SCJ125X25-30S | 25 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $190.73 | |
| SCJ125X40-40FA | 40 mm | 40 mm | FA front flange · - · std seal · PT | $232.60 | |
| SCJ125X50-10 | 50 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $190.73 | |
| SCJ125X50-10S | 50 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $195.38 | |
| SCJ125X50-20 | 50 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $190.73 | |
| SCJ125X50-20S | 50 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $195.38 | |
| SCJ125X50-30 | 50 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $190.73 | |
| SCJ125X50-30S | 50 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $195.38 | |
| SCJ125X50-40 | 50 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $190.73 | |
| SCJ125X50-40S | 50 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $195.38 | |
| SCJ125X50-50 | 50 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $190.73 | |
| SCJ125X50-50S | 50 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $195.38 | |
| SCJ125X60-20S | 60 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $200.03 | |
| SCJ125X60-30S | 60 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $200.03 | |
| SCJ125X60-40 | 60 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $195.38 | |
| SCJ125X65-30S | 65 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $200.03 | |
| SCJ125X70-30 | 70 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $195.38 | |
| SCJ125X70-30S | 70 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $200.03 | |
| SCJ125X75-10 | 75 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $195.38 | |
| SCJ125X75-10S | 75 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $200.03 | |
| SCJ125X75-20 | 75 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $195.38 | |
| SCJ125X75-20S | 75 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $200.03 | |
| SCJ125X75-30 | 75 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $195.38 | |
| SCJ125X75-30S | 75 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $200.03 | |
| SCJ125X75-40 | 75 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $195.38 | |
| SCJ125X75-40S | 75 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $200.03 | |
| SCJ125X75-50 | 75 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $195.38 | |
| SCJ125X75-50S | 75 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $200.03 | |
| SCJ125X75-75 | 75 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $195.38 | |
| SCJ125X75-75S | 75 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $200.03 | |
| SCJ125X80-10 | 80 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X80-10S | 80 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X80-20 | 80 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X80-20S | 80 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X80-30 | 80 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X80-30S | 80 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X80-40 | 80 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X80-40S | 80 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X80-50 | 80 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X80-50S | 80 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X80-75 | 80 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X80-75S | 80 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X80-100 | 80 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X80-100S | 80 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X90-30TC | 90 mm | 30 mm | TC center trunnion · - · std seal · PT | $269.15 | |
| SCJ125X100-10 | 100 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X100-10S | 100 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X100-20 | 100 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X100-20S | 100 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X100-30 | 100 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X100-30S | 100 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X100-40 | 100 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X100-40S | 100 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X100-50 | 100 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X100-50S | 100 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X100-50TC | 100 mm | 50 mm | TC center trunnion · - · std seal · PT | $269.15 | |
| SCJ125X100-75 | 100 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X100-75S | 100 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X100-100 | 100 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $201.68 | |
| SCJ125X100-100S | 100 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $206.34 | |
| SCJ125X110-10 | 110 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $206.54 | |
| SCJ125X120-30 | 120 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $206.54 | |
| SCJ125X120-75 | 120 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $206.54 | |
| SCJ125X120-75S | 120 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $211.20 | |
| SCJ125X120-75TC | 120 mm | 75 mm | TC center trunnion · - · std seal · PT | $274.01 | |
| SCJ125X125-10 | 125 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $206.54 | |
| SCJ125X125-10S | 125 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $211.20 | |
| SCJ125X125-20 | 125 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $206.54 | |
| SCJ125X125-20S | 125 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $211.20 | |
| SCJ125X125-30 | 125 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $206.54 | |
| SCJ125X125-30S | 125 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $211.20 | |
| SCJ125X125-40 | 125 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $206.54 | |
| SCJ125X125-40S | 125 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $211.20 | |
| SCJ125X125-50 | 125 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $206.54 | |
| SCJ125X125-50S | 125 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $211.20 | |
| SCJ125X125-75 | 125 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $206.54 | |
| SCJ125X125-75S | 125 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $211.20 | |
| SCJ125X125-100 | 125 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $206.54 | |
| SCJ125X125-100S | 125 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $211.20 | |
| SCJ125X125-100TC | 125 mm | 100 mm | TC center trunnion · - · std seal · PT | $274.01 | |
| SCJ125X130-50S | 130 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $217.50 | |
| SCJ125X130-100TC | 130 mm | 100 mm | TC center trunnion · - · std seal · PT | $280.31 | |
| SCJ125X150-10 | 150 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $212.85 | |
| SCJ125X150-10S | 150 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $217.50 | |
| SCJ125X150-20 | 150 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $212.85 | |
| SCJ125X150-20S | 150 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $217.50 | |
| SCJ125X150-20TC | 150 mm | 20 mm | TC center trunnion · - · std seal · PT | $280.31 | |
| SCJ125X150-30 | 150 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $212.85 | |
| SCJ125X150-30S | 150 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $217.50 | |
| SCJ125X150-40 | 150 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $212.85 | |
| SCJ125X150-40S | 150 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $217.50 | |
| SCJ125X150-50 | 150 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $212.85 | |
| SCJ125X150-50S | 150 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $217.50 | |
| SCJ125X150-75 | 150 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $212.85 | |
| SCJ125X150-75S | 150 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $217.50 | |
| SCJ125X150-100 | 150 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $212.85 | |
| SCJ125X150-100S | 150 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $217.50 | |
| SCJ125X150-100TC | 150 mm | 100 mm | TC center trunnion · - · std seal · PT | $280.31 | |
| SCJ125X160-10 | 160 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X160-10S | 160 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X160-20 | 160 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X160-20S | 160 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X160-30 | 160 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X160-30S | 160 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X160-40 | 160 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X160-40S | 160 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X160-50 | 160 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X160-50S | 160 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X160-50STC | 160 mm | 50 mm | TC center trunnion · S · std seal · PT | $289.62 | |
| SCJ125X160-75 | 160 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X160-75S | 160 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X160-100 | 160 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X160-100S | 160 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X175-10 | 175 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X175-10S | 175 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X175-20 | 175 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X175-20S | 175 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X175-30 | 175 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X175-30S | 175 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X175-40 | 175 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X175-40S | 175 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X175-50 | 175 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X175-50S | 175 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X175-75 | 175 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X175-75S | 175 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X175-100 | 175 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $217.50 | |
| SCJ125X175-100S | 175 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $222.16 | |
| SCJ125X180-50 | 180 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $223.76 | |
| SCJ125X180-50S | 180 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $228.41 | |
| SCJ125X200-10 | 200 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $223.76 | |
| SCJ125X200-10S | 200 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $228.41 | |
| SCJ125X200-20 | 200 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $223.76 | |
| SCJ125X200-20S | 200 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $228.41 | |
| SCJ125X200-30 | 200 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $223.76 | |
| SCJ125X200-30S | 200 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $228.41 | |
| SCJ125X200-40 | 200 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $223.76 | |
| SCJ125X200-40S | 200 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $228.41 | |
| SCJ125X200-50 | 200 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $223.76 | |
| SCJ125X200-50S | 200 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $228.41 | |
| SCJ125X200-50SH | 200 mm | 50 mm | Basic (no mounting) · S · FKM · PT | $274.94 | |
| SCJ125X200-75 | 200 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $223.76 | |
| SCJ125X200-75S | 200 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $228.41 | |
| SCJ125X200-100 | 200 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $223.76 | |
| SCJ125X200-100S | 200 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $228.41 | |
| SCJ125X250-10 | 250 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $234.72 | |
| SCJ125X250-10S | 250 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $239.37 | |
| SCJ125X250-20 | 250 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $234.72 | |
| SCJ125X250-20S | 250 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $239.37 | |
| SCJ125X250-30 | 250 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $234.72 | |
| SCJ125X250-30S | 250 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $239.37 | |
| SCJ125X250-40 | 250 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $234.72 | |
| SCJ125X250-40S | 250 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $239.37 | |
| SCJ125X250-50 | 250 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $234.72 | |
| SCJ125X250-50S | 250 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $239.37 | |
| SCJ125X250-75 | 250 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $234.72 | |
| SCJ125X250-75S | 250 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $239.37 | |
| SCJ125X250-100 | 250 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $234.72 | |
| SCJ125X250-100S | 250 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $239.37 | |
| SCJ125X300-10 | 300 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $239.37 | |
| SCJ125X300-10S | 300 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $244.03 | |
| SCJ125X300-20 | 300 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $239.37 | |
| SCJ125X300-75 | 300 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $239.37 | |
| SCJ125X300-75S | 300 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $244.03 | |
| SCJ125X300-100 | 300 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $239.37 | |
| SCJ125X300-100S | 300 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $244.03 | |
| SCJ125X350-10 | 350 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $250.54 | |
| SCJ125X350-10S | 350 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $255.19 | |
| SCJ125X350-20 | 350 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $250.54 | |
| SCJ125X350-20S | 350 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $255.19 | |
| SCJ125X350-30 | 350 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $250.54 | |
| SCJ125X350-30S | 350 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $255.19 | |
| SCJ125X350-40 | 350 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $250.54 | |
| SCJ125X350-40S | 350 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $255.19 | |
| SCJ125X350-50 | 350 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $250.54 | |
| SCJ125X350-50S | 350 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $255.19 | |
| SCJ125X350-75 | 350 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $250.54 | |
| SCJ125X350-75S | 350 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $255.19 | |
| SCJ125X350-100 | 350 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $250.54 | |
| SCJ125X350-100S | 350 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $255.19 | |
| SCJ125X400-10 | 400 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $261.45 | |
| SCJ125X400-10S | 400 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $266.10 | |
| SCJ125X400-20 | 400 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $261.45 | |
| SCJ125X400-20S | 400 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $266.10 | |
| SCJ125X400-30 | 400 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $261.45 | |
| SCJ125X400-30S | 400 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $266.10 | |
| SCJ125X400-40 | 400 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $261.45 | |
| SCJ125X400-40S | 400 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $266.10 | |
| SCJ125X400-50 | 400 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $261.45 | |
| SCJ125X400-50S | 400 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $266.10 | |
| SCJ125X400-75 | 400 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $261.45 | |
| SCJ125X400-75S | 400 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $266.10 | |
| SCJ125X400-100 | 400 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $261.45 | |
| SCJ125X400-100S | 400 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $266.10 | |
| SCJ125X420-50 | 420 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $272.41 | |
| SCJ125X450-10 | 450 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $272.41 | |
| SCJ125X450-10S | 450 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $277.06 | |
| SCJ125X450-20 | 450 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $272.41 | |
| SCJ125X450-20S | 450 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $277.06 | |
| SCJ125X450-30 | 450 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $272.41 | |
| SCJ125X450-30S | 450 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $277.06 | |
| SCJ125X450-40 | 450 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $272.41 | |
| SCJ125X450-40S | 450 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $277.06 | |
| SCJ125X450-50 | 450 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $272.41 | |
| SCJ125X450-50S | 450 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $277.06 | |
| SCJ125X450-75 | 450 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $272.41 | |
| SCJ125X450-75S | 450 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $277.06 | |
| SCJ125X450-100 | 450 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $272.41 | |
| SCJ125X450-100S | 450 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $277.06 | |
| SCJ125X500-10 | 500 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $283.32 | |
| SCJ125X500-10S | 500 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $287.97 | |
| SCJ125X500-20 | 500 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $283.32 | |
| SCJ125X500-20S | 500 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $287.97 | |
| SCJ125X500-30 | 500 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $283.32 | |
| SCJ125X500-30S | 500 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $287.97 | |
| SCJ125X500-40 | 500 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $283.32 | |
| SCJ125X500-40S | 500 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $287.97 | |
| SCJ125X500-50 | 500 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $283.32 | |
| SCJ125X500-50S | 500 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $287.97 | |
| SCJ125X500-75 | 500 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $283.32 | |
| SCJ125X500-75S | 500 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $287.97 | |
| SCJ125X500-100 | 500 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $283.32 | |
| SCJ125X500-100S | 500 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $287.97 | |
| SCJ125X600-10 | 600 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $307.05 | |
| SCJ125X600-10S | 600 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $311.70 | |
| SCJ125X600-20 | 600 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $307.05 | |
| SCJ125X600-20S | 600 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $311.70 | |
| SCJ125X600-30 | 600 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $307.05 | |
| SCJ125X600-30S | 600 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $311.70 | |
| SCJ125X600-40 | 600 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $307.05 | |
| SCJ125X600-40S | 600 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $311.70 | |
| SCJ125X600-50 | 600 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $307.05 | |
| SCJ125X600-50S | 600 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $311.70 | |
| SCJ125X600-75 | 600 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $307.05 | |
| SCJ125X600-75S | 600 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $311.70 | |
| SCJ125X600-100 | 600 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $307.05 | |
| SCJ125X600-100S | 600 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $311.70 | |
| SCJ125X700-10 | 700 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $330.57 | |
| SCJ125X700-10S | 700 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $335.22 | |
| SCJ125X700-20 | 700 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $330.57 | |
| SCJ125X700-20S | 700 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $335.22 | |
| SCJ125X700-30 | 700 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $330.57 | |
| SCJ125X700-30S | 700 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $335.22 | |
| SCJ125X700-40 | 700 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $330.57 | |
| SCJ125X700-40S | 700 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $335.22 | |
| SCJ125X700-50 | 700 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $330.57 | |
| SCJ125X700-50S | 700 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $335.22 | |
| SCJ125X700-75 | 700 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $330.57 | |
| SCJ125X700-75S | 700 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $335.22 | |
| SCJ125X700-100 | 700 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $330.57 | |
| SCJ125X700-100S | 700 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $335.22 | |
| SCJ125X800-10 | 800 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $355.69 | |
| SCJ125X800-10S | 800 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $360.35 | |
| SCJ125X800-20 | 800 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $355.69 | |
| SCJ125X800-20S | 800 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $360.35 | |
| SCJ125X800-30 | 800 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $355.69 | |
| SCJ125X800-30S | 800 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $360.35 | |
| SCJ125X800-40 | 800 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $355.69 | |
| SCJ125X800-40S | 800 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $360.35 | |
| SCJ125X800-50 | 800 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $355.69 | |
| SCJ125X800-50S | 800 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $360.35 | |
| SCJ125X800-75 | 800 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $355.69 | |
| SCJ125X800-75S | 800 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $360.35 | |
| SCJ125X800-100 | 800 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $355.69 | |
| SCJ125X800-100S | 800 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $360.35 | |
| SCJ125X900-10 | 900 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $380.82 | |
| SCJ125X900-10S | 900 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $385.47 | |
| SCJ125X900-20 | 900 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $380.82 | |
| SCJ125X900-20S | 900 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $385.47 | |
| SCJ125X900-30 | 900 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $380.82 | |
| SCJ125X900-30S | 900 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $385.47 | |
| SCJ125X900-40 | 900 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $380.82 | |
| SCJ125X900-40S | 900 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $385.47 | |
| SCJ125X900-50 | 900 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $380.82 | |
| SCJ125X900-50S | 900 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $385.47 | |
| SCJ125X900-75 | 900 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $380.82 | |
| SCJ125X900-75S | 900 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $385.47 | |
| SCJ125X900-100 | 900 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $380.82 | |
| SCJ125X900-100S | 900 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $385.47 | |
| SCJ125X1000-10 | 1000 mm | 10 mm | Basic (no mounting) · - · std seal · PT | $405.94 | |
| SCJ125X1000-10S | 1000 mm | 10 mm | Basic (no mounting) · S · std seal · PT | $410.59 | |
| SCJ125X1000-20 | 1000 mm | 20 mm | Basic (no mounting) · - · std seal · PT | $405.94 | |
| SCJ125X1000-20S | 1000 mm | 20 mm | Basic (no mounting) · S · std seal · PT | $410.59 | |
| SCJ125X1000-30 | 1000 mm | 30 mm | Basic (no mounting) · - · std seal · PT | $405.94 | |
| SCJ125X1000-30S | 1000 mm | 30 mm | Basic (no mounting) · S · std seal · PT | $410.59 | |
| SCJ125X1000-40 | 1000 mm | 40 mm | Basic (no mounting) · - · std seal · PT | $405.94 | |
| SCJ125X1000-40S | 1000 mm | 40 mm | Basic (no mounting) · S · std seal · PT | $410.59 | |
| SCJ125X1000-50 | 1000 mm | 50 mm | Basic (no mounting) · - · std seal · PT | $405.94 | |
| SCJ125X1000-50S | 1000 mm | 50 mm | Basic (no mounting) · S · std seal · PT | $410.59 | |
| SCJ125X1000-75 | 1000 mm | 75 mm | Basic (no mounting) · - · std seal · PT | $405.94 | |
| SCJ125X1000-75S | 1000 mm | 75 mm | Basic (no mounting) · S · std seal · PT | $410.59 | |
| SCJ125X1000-100 | 1000 mm | 100 mm | Basic (no mounting) · - · std seal · PT | $405.94 | |
| SCJ125X1000-100S | 1000 mm | 100 mm | Basic (no mounting) · S · std seal · PT | $410.59 |
Need a combination that is not listed? Request a quote.
Where the SCJ125 Is Used
High-force actuation
Over 6.1 kN at 0.5 MPa for presses, lifting tables and dampers.
Process and material handling
Opens chutes, gates and dampers on bulk-handling equipment.
Pivoting heavy loads
Clevis and trunnion versions swing large doors and platforms.
Choosing the Right SCJ125 Configuration
Start with the stroke. Pick the exact travel your machine needs; a longer stroke adds length, weight and air consumption without adding force. If your length is not listed, request a quote and we will confirm whether it can be built.
Then the stroke adjustment (10-100 mm): pick the amount by which you need to trim the stroke on the machine. The cylinder can be set anywhere between full stroke and full stroke minus that amount.
Then choose the mounting. Basic (no code) uses the cylinder's own mounting holes. This bore is stocked with FA front flange, TC center trunnion. Foot and flange mountings hold the cylinder rigid for straight-line loads; clevis and trunnion mountings let it pivot when the load moves in an arc.
Finally pick the version: S adds a magnet for position sensors; the standard seal suits general automation; H (FKM) is for higher temperatures or oil-contaminated air.
AirTAC SCJ125 FAQ
No. Every SCJ125 gives about 6136 N push and 5734 N pull at 0.5 MPa, whatever the stroke.
The number after the dash is the adjustable range in mm. An SCJ125X100-50, for example, can be set to any stroke between 50 and 100 mm with the rear adjusting screw.
1/2" ports, PT thread as standard.
Basic plus FA front flange, TC center trunnion. Use foot or flange for straight-line loads, clevis or trunnion when the cylinder must pivot.
Usually yes. Request a quote with the stroke, mounting and version and we will confirm whether it can be built, plus price and lead time.
0.15 to 1.0 MPa operating pressure (proof 1.5 MPa) and -20 to +70 °C on filtered air.
No. You can order a single SCJ125. Orders are processed and handed to the carrier within 3-5 business days.
Buying the SCJ125 from AirtacDistr
Genuine AirTAC parts
Every order code on this page is the AirTAC factory part number. Specifications follow the AirTAC Products Catalog 2026A. About us
Ready in 3-5 business days
That is our time to process the order and hand it to the carrier. No minimum order: a single piece can be ordered.
14-day returns, 1-year warranty
Return within 14 days of delivery; the buyer pays return shipping. The warranty covers defects not caused by misuse. Return policy
Engineering help
Send your application details and we will confirm the right order code, usually within 7-8 hours. Ask us
Page data checked against the live catalog on 2026-09-28.
Request a Quote for the SCJ125
Send the order code, quantity and destination. We confirm price, stock and lead time, usually within 7-8 hours.
Thank you. We received your request for SCJ125X50-50 and will confirm price, stock and lead time — usually within 7-8 hours.
