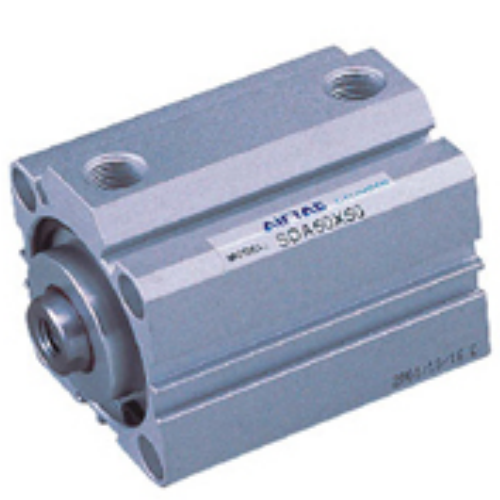

AirTAC SDA50 Compact Air Cylinder, 50 mm Bore
Every AirTAC SDA50 configuration on one page: 173 stock order codes with strokes from 5 to 160 mm, 1 mounting style and magnet, seal and thread versions, from $37.19. Pick a stroke, mounting and version to see the exact order code and price.
Basic (no mounting)
This combination is not a stock order code. Request a quote and we will confirm availability and price.
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the AirTAC SDA50
The AirTAC SDA50 is a double-acting thin compact cylinder with a 50 mm bore and a 20 mm piston rod. At 0.5 MPa it pushes 982 N and pulls 825 N; at 0.7 MPa that rises to 1374 N push and 1155 N pull. Force depends on bore and pressure only, so every stroke on this page gives the same output.
All SDA50 versions share 1/4" air ports, an M10×1.5 female rod thread (B versions have a M18×1.5 male rod end) and rubber bumpers at both ends. The cylinder runs on filtered air between 0.15 and 1.0 MPa (proof 1.5 MPa), from -20 to +70 °C, at 30 to 500 mm/s. This page lists 173 stock order codes with strokes from 5 to 160 mm; catalog standard strokes run up to 120 mm, and the longer codes are non-standard strokes we already supply.
SDA50 Technical Specifications
| Bore size | Ø50 mm |
|---|---|
| Stock strokes | 5 – 160 mm |
| Catalog standard stroke | up to 120 mm (longer on request) |
| Acting type | Double acting |
| Port size | 1/4" (PT standard, G) |
| Piston rod / rod thread | Ø20 mm / M10×1.5 female; M18×1.5 male (B) |
| Fluid | Air (filtered by 40 µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 500 mm/s |
| Cushion | Rubber bumper at both ends |
Source: official AirTAC SDA compact-cylinder datasheet. Fixed NBR bumpers at both ends. B = male rod end; blank = female rod end.
Theoretical output force (Ø50 mm)
| Pressure | Push | Pull |
|---|---|---|
| 0.5 MPa | 982 N | 825 N |
| 0.7 MPa | 1374 N | 1155 N |
Push = pressure × bore area; pull subtracts the Ø20 mm rod area. Usable force is lower because of friction and back-pressure.
How the SDA50 Order Code Is Built
| SDA50 | Series and bore (50 mm) |
|---|---|
| X100 | Stroke in mm |
| S | Built-in magnet for position sensors (blank = none) |
| B | Male threaded rod end (blank = female) |
| - | Mounting: basic only |
| H / N | Seal: H = FKM, N = NBR (blank = standard seal) |
| G | Port thread: G = G (BSPP), blank = PT |
All AirTAC SDA50 Order Codes (173)
Each order code links to its own datasheet page. Use Select to load it into the configurator above.
| Order code | Stroke (mm) | Mounting | Magnet · Rod end · Seal · Thread | Price | Select |
|---|---|---|---|---|---|
| SDA50X5 | 5 mm | Basic (no mounting) | - · female rod · std seal · PT | $37.19 | |
| SDA50X5H | 5 mm | Basic (no mounting) | - · female rod · FKM · PT | $49.99 | |
| SDA50X5N | 5 mm | Basic (no mounting) | - · female rod · NBR · PT | $40.01 | |
| SDA50X5B | 5 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $40.01 | |
| SDA50X5BH | 5 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $49.99 | |
| SDA50X5S | 5 mm | Basic (no mounting) | S · female rod · std seal · PT | $47.07 | |
| SDA50X5SB | 5 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $47.07 | |
| SDA50X5SBH | 5 mm | Basic (no mounting) | S · male rod (B) · FKM · PT | $57.06 | |
| SDA50X10 | 10 mm | Basic (no mounting) | - · female rod · std seal · PT | $38.84 | |
| SDA50X10H | 10 mm | Basic (no mounting) | - · female rod · FKM · PT | $51.61 | |
| SDA50X10B | 10 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $41.62 | |
| SDA50X10BH | 10 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $51.61 | |
| SDA50X10S | 10 mm | Basic (no mounting) | S · female rod · std seal · PT | $48.43 | |
| SDA50X10SB | 10 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $48.43 | |
| SDA50X15 | 15 mm | Basic (no mounting) | - · female rod · std seal · PT | $39.98 | |
| SDA50X15H | 15 mm | Basic (no mounting) | - · female rod · FKM · PT | $52.72 | |
| SDA50X15B | 15 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $42.73 | |
| SDA50X15BH | 15 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $52.72 | |
| SDA50X15S | 15 mm | Basic (no mounting) | S · female rod · std seal · PT | $49.34 | |
| SDA50X15SG | 15 mm | Basic (no mounting) | S · female rod · std seal · G | $49.34 | |
| SDA50X15SH | 15 mm | Basic (no mounting) | S · female rod · FKM · PT | $59.32 | |
| SDA50X15SB | 15 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $49.34 | |
| SDA50X20 | 20 mm | Basic (no mounting) | - · female rod · std seal · PT | $41.17 | |
| SDA50X20H | 20 mm | Basic (no mounting) | - · female rod · FKM · PT | $53.88 | |
| SDA50X20B | 20 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $43.89 | |
| SDA50X20BH | 20 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $53.88 | |
| SDA50X20S | 20 mm | Basic (no mounting) | S · female rod · std seal · PT | $50.90 | |
| SDA50X20SH | 20 mm | Basic (no mounting) | S · female rod · FKM · PT | $60.89 | |
| SDA50X20SN | 20 mm | Basic (no mounting) | S · female rod · NBR · PT | $50.90 | |
| SDA50X20SB | 20 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $50.90 | |
| SDA50X25 | 25 mm | Basic (no mounting) | - · female rod · std seal · PT | $42.30 | |
| SDA50X25H | 25 mm | Basic (no mounting) | - · female rod · FKM · PT | $54.99 | |
| SDA50X25N | 25 mm | Basic (no mounting) | - · female rod · NBR · PT | $45.00 | |
| SDA50X25B | 25 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $45.00 | |
| SDA50X25BH | 25 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $54.99 | |
| SDA50X25S | 25 mm | Basic (no mounting) | S · female rod · std seal · PT | $52.26 | |
| SDA50X25SH | 25 mm | Basic (no mounting) | S · female rod · FKM · PT | $62.25 | |
| SDA50X25SB | 25 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $52.26 | |
| SDA50X25SBH | 25 mm | Basic (no mounting) | S · male rod (B) · FKM · PT | $62.25 | |
| SDA50X30 | 30 mm | Basic (no mounting) | - · female rod · std seal · PT | $43.96 | |
| SDA50X30H | 30 mm | Basic (no mounting) | - · female rod · FKM · PT | $56.60 | |
| SDA50X30B | 30 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $46.61 | |
| SDA50X30BH | 30 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $56.60 | |
| SDA50X30S | 30 mm | Basic (no mounting) | S · female rod · std seal · PT | $53.17 | |
| SDA50X30SG | 30 mm | Basic (no mounting) | S · female rod · std seal · G | $99.19 | |
| SDA50X30SH | 30 mm | Basic (no mounting) | S · female rod · FKM · PT | $63.16 | |
| SDA50X30SN | 30 mm | Basic (no mounting) | S · female rod · NBR · PT | $53.17 | |
| SDA50X30SB | 30 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $53.17 | |
| SDA50X30SBH | 30 mm | Basic (no mounting) | S · male rod (B) · FKM · PT | $63.16 | |
| SDA50X35 | 35 mm | Basic (no mounting) | - · female rod · std seal · PT | $45.09 | |
| SDA50X35H | 35 mm | Basic (no mounting) | - · female rod · FKM · PT | $57.71 | |
| SDA50X35B | 35 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $47.72 | |
| SDA50X35BH | 35 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $57.71 | |
| SDA50X35S | 35 mm | Basic (no mounting) | S · female rod · std seal · PT | $54.78 | |
| SDA50X35SN | 35 mm | Basic (no mounting) | S · female rod · NBR · PT | $54.78 | |
| SDA50X35SB | 35 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $54.78 | |
| SDA50X40 | 40 mm | Basic (no mounting) | - · female rod · std seal · PT | $46.28 | |
| SDA50X40H | 40 mm | Basic (no mounting) | - · female rod · FKM · PT | $58.87 | |
| SDA50X40N | 40 mm | Basic (no mounting) | - · female rod · NBR · PT | $48.88 | |
| SDA50X40B | 40 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $48.88 | |
| SDA50X40BH | 40 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $58.87 | |
| SDA50X40S | 40 mm | Basic (no mounting) | S · female rod · std seal · PT | $55.69 | |
| SDA50X40SB | 40 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $55.69 | |
| SDA50X40SBH | 40 mm | Basic (no mounting) | S · male rod (B) · FKM · PT | $65.68 | |
| SDA50X45 | 45 mm | Basic (no mounting) | - · female rod · std seal · PT | $47.89 | |
| SDA50X45H | 45 mm | Basic (no mounting) | - · female rod · FKM · PT | $60.43 | |
| SDA50X45B | 45 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $50.45 | |
| SDA50X45BH | 45 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $60.43 | |
| SDA50X45S | 45 mm | Basic (no mounting) | S · female rod · std seal · PT | $57.06 | |
| SDA50X45SB | 45 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $57.06 | |
| SDA50X45SBH | 45 mm | Basic (no mounting) | S · male rod (B) · FKM · PT | $67.04 | |
| SDA50X50 | 50 mm | Basic (no mounting) | - · female rod · std seal · PT | $48.82 | |
| SDA50X50H | 50 mm | Basic (no mounting) | - · female rod · FKM · PT | $61.34 | |
| SDA50X50B | 50 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $51.35 | |
| SDA50X50BH | 50 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $61.34 | |
| SDA50X50S | 50 mm | Basic (no mounting) | S · female rod · std seal · PT | $58.42 | |
| SDA50X50SH | 50 mm | Basic (no mounting) | S · female rod · FKM · PT | $68.40 | |
| SDA50X50SN | 50 mm | Basic (no mounting) | S · female rod · NBR · PT | $58.42 | |
| SDA50X50SB | 50 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $58.42 | |
| SDA50X50SBH | 50 mm | Basic (no mounting) | S · male rod (B) · FKM · PT | $68.40 | |
| SDA50X55 | 55 mm | Basic (no mounting) | - · female rod · std seal · PT | $52.72 | |
| SDA50X55H | 55 mm | Basic (no mounting) | - · female rod · FKM · PT | $62.71 | |
| SDA50X55B | 55 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $52.72 | |
| SDA50X55BH | 55 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $62.71 | |
| SDA50X55S | 55 mm | Basic (no mounting) | S · female rod · std seal · PT | $59.98 | |
| SDA50X55SB | 55 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $59.98 | |
| SDA50X60 | 60 mm | Basic (no mounting) | - · female rod · std seal · PT | $54.08 | |
| SDA50X60H | 60 mm | Basic (no mounting) | - · female rod · FKM · PT | $64.07 | |
| SDA50X60B | 60 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $54.08 | |
| SDA50X60BH | 60 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $64.07 | |
| SDA50X60S | 60 mm | Basic (no mounting) | S · female rod · std seal · PT | $61.34 | |
| SDA50X60SB | 60 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $61.34 | |
| SDA50X60SBH | 60 mm | Basic (no mounting) | S · male rod (B) · FKM · PT | $71.33 | |
| SDA50X65 | 65 mm | Basic (no mounting) | - · female rod · std seal · PT | $55.44 | |
| SDA50X65H | 65 mm | Basic (no mounting) | - · female rod · FKM · PT | $65.43 | |
| SDA50X65B | 65 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $55.44 | |
| SDA50X65BH | 65 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $65.43 | |
| SDA50X65S | 65 mm | Basic (no mounting) | S · female rod · std seal · PT | $62.96 | |
| SDA50X65SH | 65 mm | Basic (no mounting) | S · female rod · FKM · PT | $72.94 | |
| SDA50X65SB | 65 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $62.96 | |
| SDA50X70 | 70 mm | Basic (no mounting) | - · female rod · std seal · PT | $56.80 | |
| SDA50X70B | 70 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $56.80 | |
| SDA50X70BH | 70 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $66.79 | |
| SDA50X70S | 70 mm | Basic (no mounting) | S · female rod · std seal · PT | $64.52 | |
| SDA50X70SB | 70 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $64.52 | |
| SDA50X75 | 75 mm | Basic (no mounting) | - · female rod · std seal · PT | $58.42 | |
| SDA50X75H | 75 mm | Basic (no mounting) | - · female rod · FKM · PT | $68.40 | |
| SDA50X75B | 75 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $58.42 | |
| SDA50X75BH | 75 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $68.40 | |
| SDA50X75S | 75 mm | Basic (no mounting) | S · female rod · std seal · PT | $66.34 | |
| SDA50X75SB | 75 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $66.34 | |
| SDA50X75SBH | 75 mm | Basic (no mounting) | S · male rod (B) · FKM · PT | $76.33 | |
| SDA50X80 | 80 mm | Basic (no mounting) | - · female rod · std seal · PT | $59.98 | |
| SDA50X80H | 80 mm | Basic (no mounting) | - · female rod · FKM · PT | $69.97 | |
| SDA50X80B | 80 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $59.98 | |
| SDA50X80BH | 80 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $69.97 | |
| SDA50X80S | 80 mm | Basic (no mounting) | S · female rod · std seal · PT | $68.40 | |
| SDA50X80SH | 80 mm | Basic (no mounting) | S · female rod · FKM · PT | $78.39 | |
| SDA50X80SB | 80 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $68.40 | |
| SDA50X80SBH | 80 mm | Basic (no mounting) | S · male rod (B) · FKM · PT | $78.39 | |
| SDA50X85 | 85 mm | Basic (no mounting) | - · female rod · std seal · PT | $62.05 | |
| SDA50X85B | 85 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $62.05 | |
| SDA50X85BH | 85 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $72.04 | |
| SDA50X85S | 85 mm | Basic (no mounting) | S · female rod · std seal · PT | $70.68 | |
| SDA50X85SB | 85 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $70.68 | |
| SDA50X90 | 90 mm | Basic (no mounting) | - · female rod · std seal · PT | $64.07 | |
| SDA50X90H | 90 mm | Basic (no mounting) | - · female rod · FKM · PT | $74.06 | |
| SDA50X90B | 90 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $64.07 | |
| SDA50X90BH | 90 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $74.06 | |
| SDA50X90S | 90 mm | Basic (no mounting) | S · female rod · std seal · PT | $72.49 | |
| SDA50X90SB | 90 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $72.49 | |
| SDA50X100 | 100 mm | Basic (no mounting) | - · female rod · std seal · PT | $68.15 | |
| SDA50X100H | 100 mm | Basic (no mounting) | - · female rod · FKM · PT | $78.14 | |
| SDA50X100B | 100 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $68.15 | |
| SDA50X100BH | 100 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $78.14 | |
| SDA50X100S | 100 mm | Basic (no mounting) | S · female rod · std seal · PT | $77.48 | |
| SDA50X100SH | 100 mm | Basic (no mounting) | S · female rod · FKM · PT | $87.47 | |
| SDA50X100SB | 100 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $77.48 | |
| SDA50X100SBH | 100 mm | Basic (no mounting) | S · male rod (B) · FKM · PT | $87.47 | |
| SDA50X110 | 110 mm | Basic (no mounting) | - · female rod · std seal · PT | $72.94 | |
| SDA50X110B | 110 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $72.94 | |
| SDA50X110BH | 110 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $82.93 | |
| SDA50X110S | 110 mm | Basic (no mounting) | S · female rod · std seal · PT | $82.23 | |
| SDA50X110SB | 110 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $82.23 | |
| SDA50X120 | 120 mm | Basic (no mounting) | - · female rod · std seal · PT | $77.69 | |
| SDA50X120H | 120 mm | Basic (no mounting) | - · female rod · FKM · PT | $87.68 | |
| SDA50X120B | 120 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $77.69 | |
| SDA50X120BH | 120 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $87.68 | |
| SDA50X120S | 120 mm | Basic (no mounting) | S · female rod · std seal · PT | $87.02 | |
| SDA50X120SH | 120 mm | Basic (no mounting) | S · female rod · FKM · PT | $97.01 | |
| SDA50X120SB | 120 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $87.02 | |
| SDA50X130 | 130 mm | Basic (no mounting) | - · female rod · std seal · PT | $82.48 | |
| SDA50X130B | 130 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $82.48 | |
| SDA50X130BH | 130 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $92.47 | |
| SDA50X130S | 130 mm | Basic (no mounting) | S · female rod · std seal · PT | $92.92 | |
| SDA50X130SH | 130 mm | Basic (no mounting) | S · female rod · FKM · PT | $102.91 | |
| SDA50X130SB | 130 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $92.92 | |
| SDA50X140 | 140 mm | Basic (no mounting) | - · female rod · std seal · PT | $88.38 | |
| SDA50X140H | 140 mm | Basic (no mounting) | - · female rod · FKM · PT | $98.37 | |
| SDA50X140B | 140 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $88.38 | |
| SDA50X140BH | 140 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $98.37 | |
| SDA50X140S | 140 mm | Basic (no mounting) | S · female rod · std seal · PT | $98.57 | |
| SDA50X140SB | 140 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $98.57 | |
| SDA50X150 | 150 mm | Basic (no mounting) | - · female rod · std seal · PT | $94.03 | |
| SDA50X150B | 150 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $94.03 | |
| SDA50X150BH | 150 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $104.02 | |
| SDA50X150S | 150 mm | Basic (no mounting) | S · female rod · std seal · PT | $104.47 | |
| SDA50X150SH | 150 mm | Basic (no mounting) | S · female rod · FKM · PT | $114.46 | |
| SDA50X150SB | 150 mm | Basic (no mounting) | S · male rod (B) · std seal · PT | $104.47 | |
| SDA50X150SBH | 150 mm | Basic (no mounting) | S · male rod (B) · FKM · PT | $114.46 | |
| SDA50X160 | 160 mm | Basic (no mounting) | - · female rod · std seal · PT | $99.93 | |
| SDA50X160B | 160 mm | Basic (no mounting) | - · male rod (B) · std seal · PT | $99.93 | |
| SDA50X160BH | 160 mm | Basic (no mounting) | - · male rod (B) · FKM · PT | $109.92 |
Need a combination that is not listed? Request a quote.
Where the SDA50 Is Used
General automation
About 982 N at 0.5 MPa covers most pushing, lifting and indexing tasks.
Clamping fixtures
Foot or flange mounting holds the cylinder rigid for clamps.
Doors, gates and levers
Clevis and trunnion versions drive mechanisms that swing.
Choosing the Right SDA50 Configuration
Start with the stroke. Pick the exact travel your machine needs; a longer stroke adds length, weight and air consumption without adding force. If your length is not listed, request a quote and we will confirm whether it can be built.
Then choose the mounting. Basic (no code) uses the cylinder's own mounting holes. Foot and flange mountings hold the cylinder rigid for straight-line loads; clevis and trunnion mountings let it pivot when the load moves in an arc.
Finally pick the version: S adds a magnet for position sensors; the standard seal suits general automation; B gives a male threaded rod end instead of the standard female thread; H (FKM) is for higher temperatures or oil-contaminated air; N specifies NBR; G replaces the standard PT ports with G (BSPP).
AirTAC SDA50 FAQ
No. Every SDA50 gives about 982 N push and 825 N pull at 0.5 MPa, whatever the stroke.
1/4" ports, PT thread as standard. The G version has G (BSPP) ports.
Basic mounting. Use foot or flange for straight-line loads, clevis or trunnion when the cylinder must pivot.
Usually yes. Request a quote with the stroke, mounting and version and we will confirm whether it can be built, plus price and lead time.
0.15 to 1.0 MPa operating pressure (proof 1.5 MPa) and -20 to +70 °C on filtered air.
No. You can order a single SDA50. Orders are processed and handed to the carrier within 3-5 business days.
Buying the SDA50 from AirtacDistr
Genuine AirTAC parts
Every order code on this page is the AirTAC factory part number. Specifications follow the AirTAC Products Catalog 2026A. About us
Ready in 3-5 business days
That is our time to process the order and hand it to the carrier. No minimum order: a single piece can be ordered.
14-day returns, 1-year warranty
Return within 14 days of delivery; the buyer pays return shipping. The warranty covers defects not caused by misuse. Return policy
Engineering help
Send your application details and we will confirm the right order code, usually within 7-8 hours. Ask us
Page data checked against the live catalog on 2026-09-28.
Request a Quote for the SDA50
Send the order code, quantity and destination. We confirm price, stock and lead time, usually within 7-8 hours.
