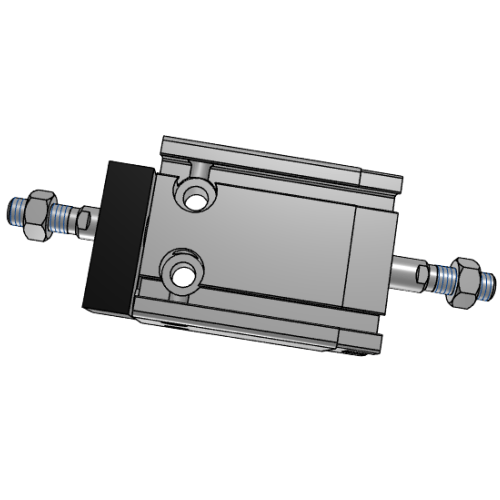

AirTAC MKD20 Double-Rod Non-Rotating Multi-Mount Cylinder, 20 mm Bore
Every AirTAC MKD20 configuration on one page: 19 stock order codes with strokes from 5 to 60 mm, from $42.09. Pick a stroke, port thread and version to see the exact order code and price.
M5×0.8 ports
This combination is not a stock order code. Request a quote and we will confirm availability and price.
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the AirTAC MKD20
The AirTAC MKD20 is a double-acting double-rod non-rotating multi-mount cylinder with a 20 mm bore. With a rod on both sides it gives the same force each way: 131.9 N at 0.5 MPa and 184.7 N at 0.7 MPa. Force depends on bore and pressure only, so every stroke on this page gives the same output.
The rod does not rotate, so tooling stays aligned. The compact square body can be fixed from several faces and several cylinders can be mounted side by side. The piston rod exits at both ends of the body. The rod guide needs no added lubrication. All MKD20 versions use M5×0.8 air ports and run on filtered air at 0.15 to 1.0 MPa (proof 1.5 MPa), from -20 to +70 °C, at 30 to 500 mm/s. This page lists 19 stock order codes with strokes from 5 to 60 mm; the catalog maximum stroke is 60 mm.
MKD20 Technical Specifications
| Bore size | Ø20 mm |
|---|---|
| Piston rod | Ø8 mm |
| Stock strokes | 5 – 60 mm |
| Catalog maximum stroke | 60 mm |
| Port size | M5×0.8 |
| Fluid | Air (filtered by 40 µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 500 mm/s |
| Cushion | Rubber bumpers at both ends |
Source: AirTAC Products Catalog 2026A (PDF01-P0506), MK series ordering code and specifications.
Theoretical output force (Ø20 mm)
| Pressure | Push | Pull |
|---|---|---|
| 0.5 MPa | 131.9 N | 131.9 N |
| 0.7 MPa | 184.7 N | 184.7 N |
Both directions use the bore area minus the rod area. Usable force is lower because of friction and back-pressure.
How the MKD20 Order Code Is Built
| MKD20 | Series and bore (20 mm) |
|---|---|
| X50 | Stroke in mm |
| S | Built-in magnet for position sensors (blank = none) |
All AirTAC MKD20 Order Codes (19)
Each order code links to its own datasheet page. Use Select to load it into the configurator above.
| Order code | Stroke (mm) | Port thread | Magnet | Price | Select |
|---|---|---|---|---|---|
| MKD20X5S | 5 mm | M5×0.8 ports | Magnet (S) | $50.47 | |
| MKD20X5 | 5 mm | M5×0.8 ports | No magnet | $42.09 | |
| MKD20X10S | 10 mm | M5×0.8 ports | Magnet (S) | $52.80 | |
| MKD20X10 | 10 mm | M5×0.8 ports | No magnet | $44.42 | |
| MKD20X15S | 15 mm | M5×0.8 ports | Magnet (S) | $54.86 | |
| MKD20X15 | 15 mm | M5×0.8 ports | No magnet | $46.28 | |
| MKD20X20S | 20 mm | M5×0.8 ports | Magnet (S) | $56.98 | |
| MKD20X20 | 20 mm | M5×0.8 ports | No magnet | $48.61 | |
| MKD20X25S | 25 mm | M5×0.8 ports | Magnet (S) | $59.52 | |
| MKD20X25 | 25 mm | M5×0.8 ports | No magnet | $50.47 | |
| MKD20X30S | 30 mm | M5×0.8 ports | Magnet (S) | $61.84 | |
| MKD20X30 | 30 mm | M5×0.8 ports | No magnet | $52.80 | |
| MKD20X35S | 35 mm | M5×0.8 ports | Magnet (S) | $64.89 | |
| MKD20X40S | 40 mm | M5×0.8 ports | Magnet (S) | $68.15 | |
| MKD20X40 | 40 mm | M5×0.8 ports | No magnet | $57.65 | |
| MKD20X45S | 45 mm | M5×0.8 ports | Magnet (S) | $70.94 | |
| MKD20X50S | 50 mm | M5×0.8 ports | Magnet (S) | $74.20 | |
| MKD20X50 | 50 mm | M5×0.8 ports | No magnet | $63.96 | |
| MKD20X60S | 60 mm | M5×0.8 ports | Magnet (S) | $80.71 |
Need a combination that is not listed? Request a quote.
Where the MKD20 Is Used
Small pushers and stoppers
About 131.9 N at 0.5 MPa in a body that fixes from several faces.
Multi-cylinder banks
Several cylinders mount side by side to save space.
Sensed positioning
Magnet versions report stroke ends through cylinder sensors.
Choosing the Right MKD20 Configuration
Start with the stroke. Pick the exact travel your machine needs; a longer stroke adds length and air consumption without adding force. If your length is not listed, request a quote and we will confirm whether it can be built.
Finally pick the version: S adds a magnet for position sensors.
AirTAC MKD20 FAQ
No. Every MKD20 gives about 131.9 N each way at 0.5 MPa, whatever the stroke.
M5×0.8 ports.
0.15 to 1.0 MPa operating pressure (proof 1.5 MPa), 30 to 500 mm/s and -20 to +70 °C on filtered air.
Usually yes. Request a quote with the stroke and version and we will confirm whether it can be built, plus price and lead time.
No. You can order a single MKD20. Orders are processed and handed to the carrier within 3-5 business days.
Buying the MKD20 from AirtacDistr
Genuine AirTAC parts
Every order code on this page is the AirTAC factory part number. Specifications follow the AirTAC Products Catalog 2026A. About us
Ready in 3-5 business days
That is our time to process the order and hand it to the carrier. No minimum order: a single piece can be ordered.
14-day returns, 1-year warranty
Return within 14 days of delivery; the buyer pays return shipping. The warranty covers defects not caused by misuse. Return policy
Engineering help
Send your application details and we will confirm the right order code, usually within 7-8 hours. Ask us
Page data checked against the live catalog on 2026-10-30.
Request a Quote for the MKD20
Send the order code, quantity and destination. We confirm price, stock and lead time, usually within 7-8 hours.
