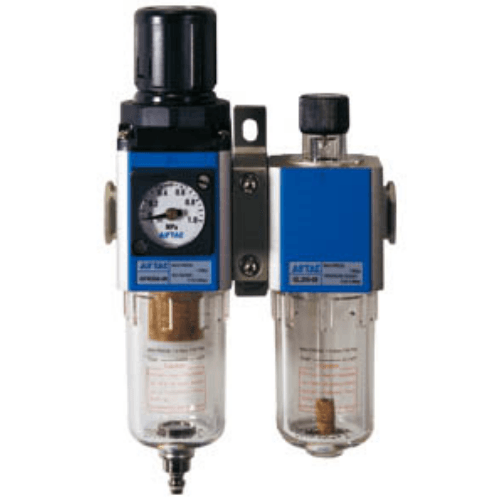

AirTAC GFC200-08 Two-Unit FRL (Filter Regulator + Lubricator), 1/4" Port
Every stocked AirTAC GFC200-08 configuration on one page: 54 order codes with 1/4" ports, from $45.70. Pick the drain and type, pressure gauge and configuration to see the exact order code and price.
This combination is not a stock order code. Request a quote and we will confirm availability and price.
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the AirTAC GFC200-08
The AirTAC GFC200-08 is a G-series two-unit air preparation set: a GFR filter regulator joined to a GL lubricator. It has 1/4" ports (PT thread as standard, G also stocked). It regulates from 0.15 to 0.9 MPa (20-130 psi) with differential-pressure drain, and from 0.05 to 0.9 MPa (7-130 psi) with manual drain. The low-pressure (L) version regulates up to 0.4 MPa (58 psi).
The units join with a quick, secure connector, regulation is stable and repeatable, and water and particles are removed efficiently. Manual, differential-pressure and automatic drains are available. Maximum operating pressure is 1.0 MPa (145 psi), proof pressure 1.5 MPa (215 psi), operating temperature -5 to +70 °C (no freezing).
GFC200-08 Technical Specifications
| Model | GFC200-08 |
|---|---|
| Port | 1/4" (08) |
| Thread | PT (standard), G |
| Filter element | 40 µm (standard), 5 µm (W) |
| Drain bowl capacity | 10 cc |
| Lubricator capacity | 25 cc |
| Recommended oil | ISO VG32 turbine oil |
| Components | GFR200-08 filter regulator + GL200-08 lubricator |
| Weight | 430 g |
| Fluid | Compressed air |
|---|---|
| Regulating range | 0.15 – 0.9 MPa (auto / differential drain); 0.05 – 0.9 MPa (manual drain) |
| Low-pressure (L) version | Up to 0.4 MPa (58 psi) |
| Maximum pressure | 1.0 MPa (145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Temperature | -5 to +70 °C (no freezing) |
Source: AirTAC Products Catalog 2026A (PDF01-P0207), GFC series specifications and ordering code.
How the GFC200-08 Order Code Is Built
| GFC200 | Series and body size |
|---|---|
| 08 | Port 1/4" |
| A / M | Drain: A = automatic, M = manual, blank = differential-pressure (size 200: blank or M) |
| L | Low-pressure type, up to 0.4 MPa (blank = standard) |
| N | No gauge (blank = gauge fitted, then style and scale) |
| F / C | Square / round gauge |
| 1 / 2 / 3 | Gauge scale MPa / psi / bar |
| W | 5 µm element (blank = 40 µm) |
| G / T | Thread: G = G, T = NPT, blank = PT |
| K | With check valve (blank = without) |
All AirTAC GFC200-08 Order Codes (54)
Each order code links to its own datasheet page. Use Select to load it into the configurator above.
| Order code | Drain · type | Pressure gauge | Configuration | Price | Select |
|---|---|---|---|---|---|
| GFC20008F1 | Differential-pressure drain · Standard | Square gauge, MPa (F1) | 40 µm · PT thread | $51.35 | |
| GFC20008F1K | Differential-pressure drain · Standard | Square gauge, MPa (F1) | 40 µm · PT thread · Check valve (K) | $62.71 | |
| GFC20008F1W | Differential-pressure drain · Standard | Square gauge, MPa (F1) | 5 µm (W) · PT thread | $51.35 | |
| GFC20008F1WK | Differential-pressure drain · Standard | Square gauge, MPa (F1) | 5 µm (W) · PT thread · Check valve (K) | $62.71 | |
| GFC20008F2 | Differential-pressure drain · Standard | Square gauge, psi (F2) | 40 µm · PT thread | $51.35 | |
| GFC20008F3 | Differential-pressure drain · Standard | Square gauge, bar (F3) | 40 µm · PT thread | $51.35 | |
| GFC20008F3W | Differential-pressure drain · Standard | Square gauge, bar (F3) | 5 µm (W) · PT thread | $51.35 | |
| GFC20008C1 | Differential-pressure drain · Standard | Round gauge, MPa (C1) | 40 µm · PT thread | $51.35 | |
| GFC20008C1K | Differential-pressure drain · Standard | Round gauge, MPa (C1) | 40 µm · PT thread · Check valve (K) | $62.71 | |
| GFC20008C1W | Differential-pressure drain · Standard | Round gauge, MPa (C1) | 5 µm (W) · PT thread | $51.35 | |
| GFC20008C1WK | Differential-pressure drain · Standard | Round gauge, MPa (C1) | 5 µm (W) · PT thread · Check valve (K) | $62.71 | |
| GFC20008C2W | Differential-pressure drain · Standard | Round gauge, psi (C2) | 5 µm (W) · PT thread | $51.35 | |
| GFC20008C3 | Differential-pressure drain · Standard | Round gauge, bar (C3) | 40 µm · PT thread | $51.35 | |
| GFC20008N | Differential-pressure drain · Standard | No gauge (N) | 40 µm · PT thread | $45.70 | |
| GFC20008NK | Differential-pressure drain · Standard | No gauge (N) | 40 µm · PT thread · Check valve (K) | $57.06 | |
| GFC20008NW | Differential-pressure drain · Standard | No gauge (N) | 5 µm (W) · PT thread | $45.70 | |
| GFC20008NWK | Differential-pressure drain · Standard | No gauge (N) | 5 µm (W) · PT thread · Check valve (K) | $57.06 | |
| GFC20008LF1 | Differential-pressure drain · Low-pressure (L) | Square gauge, MPa (F1) | 40 µm · PT thread | $51.35 | |
| GFC20008LF1W | Differential-pressure drain · Low-pressure (L) | Square gauge, MPa (F1) | 5 µm (W) · PT thread | $51.35 | |
| GFC20008LF2 | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | 40 µm · PT thread | $51.35 | |
| GFC20008LC1 | Differential-pressure drain · Low-pressure (L) | Round gauge, MPa (C1) | 40 µm · PT thread | $51.35 | |
| GFC20008LC1W | Differential-pressure drain · Low-pressure (L) | Round gauge, MPa (C1) | 5 µm (W) · PT thread | $51.35 | |
| GFC20008LN | Differential-pressure drain · Low-pressure (L) | No gauge (N) | 40 µm · PT thread | $45.70 | |
| GFC20008LNW | Differential-pressure drain · Low-pressure (L) | No gauge (N) | 5 µm (W) · PT thread | $45.70 | |
| GFC20008MF1 | Manual drain (M) · Standard | Square gauge, MPa (F1) | 40 µm · PT thread | $51.35 | |
| GFC20008MF1K | Manual drain (M) · Standard | Square gauge, MPa (F1) | 40 µm · PT thread · Check valve (K) | $62.71 | |
| GFC20008MF1G | Manual drain (M) · Standard | Square gauge, MPa (F1) | 40 µm · G thread | $51.35 | |
| GFC20008MF1W | Manual drain (M) · Standard | Square gauge, MPa (F1) | 5 µm (W) · PT thread | $51.35 | |
| GFC20008MF1WK | Manual drain (M) · Standard | Square gauge, MPa (F1) | 5 µm (W) · PT thread · Check valve (K) | $62.71 | |
| GFC20008MF2 | Manual drain (M) · Standard | Square gauge, psi (F2) | 40 µm · PT thread | $51.35 | |
| GFC20008MF3 | Manual drain (M) · Standard | Square gauge, bar (F3) | 40 µm · PT thread | $51.35 | |
| GFC20008MC1 | Manual drain (M) · Standard | Round gauge, MPa (C1) | 40 µm · PT thread | $51.35 | |
| GFC20008MC1K | Manual drain (M) · Standard | Round gauge, MPa (C1) | 40 µm · PT thread · Check valve (K) | $62.71 | |
| GFC20008MC1W | Manual drain (M) · Standard | Round gauge, MPa (C1) | 5 µm (W) · PT thread | $51.35 | |
| GFC20008MC1WK | Manual drain (M) · Standard | Round gauge, MPa (C1) | 5 µm (W) · PT thread · Check valve (K) | $62.71 | |
| GFC20008MC2 | Manual drain (M) · Standard | Round gauge, psi (C2) | 40 µm · PT thread | $51.35 | |
| GFC20008MC3 | Manual drain (M) · Standard | Round gauge, bar (C3) | 40 µm · PT thread | $51.35 | |
| GFC20008MC3K | Manual drain (M) · Standard | Round gauge, bar (C3) | 40 µm · PT thread · Check valve (K) | $62.71 | |
| GFC20008MC3W | Manual drain (M) · Standard | Round gauge, bar (C3) | 5 µm (W) · PT thread | $51.35 | |
| GFC20008MN | Manual drain (M) · Standard | No gauge (N) | 40 µm · PT thread | $45.70 | |
| GFC20008MNK | Manual drain (M) · Standard | No gauge (N) | 40 µm · PT thread · Check valve (K) | $57.06 | |
| GFC20008MNW | Manual drain (M) · Standard | No gauge (N) | 5 µm (W) · PT thread | $45.70 | |
| GFC20008MNWK | Manual drain (M) · Standard | No gauge (N) | 5 µm (W) · PT thread · Check valve (K) | $57.06 | |
| GFC20008MLF1 | Manual drain (M) · Low-pressure (L) | Square gauge, MPa (F1) | 40 µm · PT thread | $51.35 | |
| GFC20008MLF1K | Manual drain (M) · Low-pressure (L) | Square gauge, MPa (F1) | 40 µm · PT thread · Check valve (K) | $62.71 | |
| GFC20008MLF1W | Manual drain (M) · Low-pressure (L) | Square gauge, MPa (F1) | 5 µm (W) · PT thread | $51.35 | |
| GFC20008MLF1WK | Manual drain (M) · Low-pressure (L) | Square gauge, MPa (F1) | 5 µm (W) · PT thread · Check valve (K) | $62.71 | |
| GFC20008MLF2 | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | 40 µm · PT thread | $51.35 | |
| GFC20008MLF3 | Manual drain (M) · Low-pressure (L) | Square gauge, bar (F3) | 40 µm · PT thread | $51.35 | |
| GFC20008MLC1 | Manual drain (M) · Low-pressure (L) | Round gauge, MPa (C1) | 40 µm · PT thread | $51.35 | |
| GFC20008MLC1W | Manual drain (M) · Low-pressure (L) | Round gauge, MPa (C1) | 5 µm (W) · PT thread | $51.35 | |
| GFC20008MLC1WK | Manual drain (M) · Low-pressure (L) | Round gauge, MPa (C1) | 5 µm (W) · PT thread · Check valve (K) | $62.71 | |
| GFC20008MLN | Manual drain (M) · Low-pressure (L) | No gauge (N) | 40 µm · PT thread | $45.70 | |
| GFC20008MLNW | Manual drain (M) · Low-pressure (L) | No gauge (N) | 5 µm (W) · PT thread | $45.70 |
Need a combination that is not listed? Request a quote.
Where the GFC200-08 Is Used
Machine air inlet
Fit the GFC200-08 where compressed air enters a machine.
Stable working pressure
Set and hold the pressure your valves and cylinders need.
Pneumatic stations
Feeds cylinders, valves and tools on one air line.
Choosing the Right GFC200-08 Configuration
Start with the drain and type. Manual drain (M) is opened by hand and also works at low pressure. The standard differential-pressure drain releases water when line pressure drops. Size 200 has no automatic drain. Low-pressure (L) versions regulate up to 0.4 MPa (58 psi).
Then the pressure gauge: square (F) or round (C), reading in MPa (1), psi (2) or bar (3), or no gauge (N) if you read pressure elsewhere.
Finally the configuration. The 40 µm element is standard; W gives a 5 µm element for cleaner air. Thread is PT unless the code ends in G (G thread) or T (NPT), before any K. K adds a check valve.
AirTAC GFC200-08 FAQ
It regulates from 0.15 to 0.9 MPa (20-130 psi) with differential-pressure drain, and from 0.05 to 0.9 MPa (7-130 psi) with manual drain. Low-pressure (L) versions go up to 0.4 MPa (58 psi).
1/4" (08), PT thread as standard; G = G at the end of the code.
F = square gauge, C = round gauge, followed by the scale: 1 = MPa, 2 = psi, 3 = bar. N means no gauge.
No. You can order a single GFC200-08. Orders are processed and handed to the carrier within 3-5 business days.
Buying the GFC200-08 from AirtacDistr
Genuine AirTAC parts
Every order code on this page is the AirTAC factory part number. Specifications follow the AirTAC Products Catalog 2026A. About us
Ready in 3-5 business days
That is our time to process the order and hand it to the carrier. No minimum order: a single piece can be ordered.
14-day returns, 1-year warranty
Return within 14 days of delivery; the buyer pays return shipping. The warranty covers defects not caused by misuse. Return policy
Engineering help
Send your application details and we will confirm the right order code, usually within 7-8 hours. Ask us
Page data checked against the live catalog on 2026-10-30.
Request a Quote for the GFC200-08
Send the order code, quantity and destination. We confirm price, stock and lead time, usually within 7-8 hours.
