AirTAC GA Series · Filter Regulator

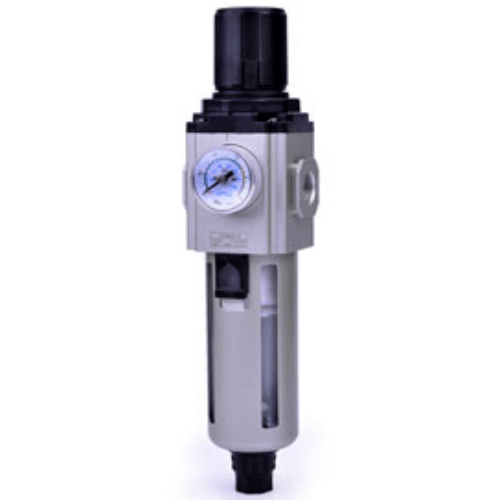

AirTAC GAFR300-08 Filter Regulator, 1/4" Port
Every stocked AirTAC GAFR300-08 configuration on one page: 142 order codes with 1/4" ports, from $34.05. Pick the bowl and drain, type and gauge, and configuration to see the exact order code and price.
This combination is not a stock order code. Request a quote and we will confirm availability and price.
$44.94
$51.66Save 13%
Request a Quote
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the AirTAC GAFR300-08
The AirTAC GAFR300-08 is a GA-series filter regulator: one unit that filters and sets the pressure. It has 1/4" ports (PT thread as standard, NPT also stocked). It regulates from 0.15 to 0.9 MPa (20-130 psi). The low-pressure (L) version regulates from 0.15 to 0.4 MPa (20-58 psi).
The round gauge clips in, saving space, with a magnified, easy-to-read dial; the knob locks by pressing it in and a balanced valve keeps the set pressure stable. A swirl guide separates water and particles before a 40 µm or 5 µm element, and the bowl comes in PC, metal or nylon. Maximum operating pressure is 1.0 MPa (145 psi), proof pressure 1.5 MPa (215 psi), operating temperature -5 to +70 °C (no freezing).
GAFR300-08 Technical Specifications
| Model | GAFR300-08 |
|---|---|
| Port | 1/4" (08) |
| Thread | PT (standard), NPT (T) |
| Filter element | 40 µm (standard), 5 µm (W) |
| Drain bowl capacity | 60 cc |
| Weight | 500 g |
| Fluid | Compressed air |
|---|---|
| Regulating range | 0.15 – 0.9 MPa (20 – 130 psi) |
| Low-pressure (L) version | 0.15 – 0.4 MPa (20 – 58 psi) |
| Maximum pressure | 1.0 MPa (145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Temperature | -5 to +70 °C (no freezing) |
Source: AirTAC Products Catalog 2026A (PDF01-P0224/P0225), GAFR series specifications and ordering code.
How the GAFR300-08 Order Code Is Built
| GAFR300 | Series and body size |
|---|---|
| C / N | Bowl: C = metal, N = nylon, blank = PC |
| 08 | Port 1/4" |
| A | Automatic drain (blank = differential + manual) |
| S / L | Standard / low-pressure type |
| J | Without bracket (blank = bracket included) |
| N | No gauge (blank = round clip-in gauge) |
| W | 5 µm element (blank = 40 µm) |
| G / T | Thread: G = G, T = NPT, blank = PT |
| K | With check valve (blank = without) |
All AirTAC GAFR300-08 Order Codes (142)
Each order code links to its own datasheet page. Use Select to load it into the configurator above.
| Order code | Bowl · drain | Type · gauge | Configuration | Price | Select |
|---|---|---|---|---|---|
| GAFR30008S | PC bowl · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread | $40.58 | |
| GAFR30008SK | PC bowl · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread · Check valve (K) | $51.48 | |
| GAFR30008SW | PC bowl · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread | $40.58 | |
| GAFR30008SWK | PC bowl · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $51.48 | |
| GAFR30008SJ | PC bowl · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread | $39.52 | |
| GAFR30008SJK | PC bowl · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $50.41 | |
| GAFR30008SJW | PC bowl · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread | $39.52 | |
| GAFR30008SJWK | PC bowl · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $50.41 | |
| GAFR30008SN | PC bowl · Differential + manual drain | Standard (S) · No gauge (N) | With bracket · 40 µm · PT thread | $35.16 | |
| GAFR30008SNK | PC bowl · Differential + manual drain | Standard (S) · No gauge (N) | With bracket · 40 µm · PT thread · Check valve (K) | $46.06 | |
| GAFR30008SNW | PC bowl · Differential + manual drain | Standard (S) · No gauge (N) | With bracket · 5 µm (W) · PT thread | $35.16 | |
| GAFR30008SNWK | PC bowl · Differential + manual drain | Standard (S) · No gauge (N) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $46.06 | |
| GAFR30008SJN | PC bowl · Differential + manual drain | Standard (S) · No gauge (N) | No bracket (J) · 40 µm · PT thread | $34.05 | |
| GAFR30008SJNK | PC bowl · Differential + manual drain | Standard (S) · No gauge (N) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $44.94 | |
| GAFR30008SJNW | PC bowl · Differential + manual drain | Standard (S) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread | $34.05 | |
| GAFR30008SJNWK | PC bowl · Differential + manual drain | Standard (S) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $44.94 | |
| GAFR30008L | PC bowl · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread | $40.58 | |
| GAFR30008LK | PC bowl · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread · Check valve (K) | $51.48 | |
| GAFR30008LW | PC bowl · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread | $40.58 | |
| GAFR30008LWK | PC bowl · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $51.48 | |
| GAFR30008LJ | PC bowl · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread | $39.52 | |
| GAFR30008LJK | PC bowl · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $50.41 | |
| GAFR30008LJW | PC bowl · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread | $39.52 | |
| GAFR30008LJWK | PC bowl · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $50.41 | |
| GAFR30008LN | PC bowl · Differential + manual drain | Low-pressure (L) · No gauge (N) | With bracket · 40 µm · PT thread | $35.16 | |
| GAFR30008LNK | PC bowl · Differential + manual drain | Low-pressure (L) · No gauge (N) | With bracket · 40 µm · PT thread · Check valve (K) | $46.06 | |
| GAFR30008LNW | PC bowl · Differential + manual drain | Low-pressure (L) · No gauge (N) | With bracket · 5 µm (W) · PT thread | $35.16 | |
| GAFR30008LNWK | PC bowl · Differential + manual drain | Low-pressure (L) · No gauge (N) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $46.06 | |
| GAFR30008LJN | PC bowl · Differential + manual drain | Low-pressure (L) · No gauge (N) | No bracket (J) · 40 µm · PT thread | $34.05 | |
| GAFR30008LJNK | PC bowl · Differential + manual drain | Low-pressure (L) · No gauge (N) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $44.94 | |
| GAFR30008LJNW | PC bowl · Differential + manual drain | Low-pressure (L) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread | $34.05 | |
| GAFR30008LJNWK | PC bowl · Differential + manual drain | Low-pressure (L) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $44.94 | |
| GAFR30008ASK | PC bowl · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread · Check valve (K) | $60.20 | |
| GAFR30008ASW | PC bowl · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread | $49.30 | |
| GAFR30008ASWK | PC bowl · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $60.20 | |
| GAFR30008ASJW | PC bowl · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread | $48.23 | |
| GAFR30008ASJWK | PC bowl · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $59.13 | |
| GAFR30008ASN | PC bowl · Automatic drain (A) | Standard (S) · No gauge (N) | With bracket · 40 µm · PT thread | $43.87 | |
| GAFR30008ASNK | PC bowl · Automatic drain (A) | Standard (S) · No gauge (N) | With bracket · 40 µm · PT thread · Check valve (K) | $54.77 | |
| GAFR30008ASNW | PC bowl · Automatic drain (A) | Standard (S) · No gauge (N) | With bracket · 5 µm (W) · PT thread | $43.87 | |
| GAFR30008ASNWK | PC bowl · Automatic drain (A) | Standard (S) · No gauge (N) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $54.77 | |
| GAFR30008ASJNW | PC bowl · Automatic drain (A) | Standard (S) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread | $42.76 | |
| GAFR30008ASJNWK | PC bowl · Automatic drain (A) | Standard (S) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $53.66 | |
| GAFR300C08S | Metal bowl (C) · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread | $44.94 | |
| GAFR300C08SK | Metal bowl (C) · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread · Check valve (K) | $55.84 | |
| GAFR300C08ST | Metal bowl (C) · Differential + manual drain | Standard (S) · Round clip-in gauge (psi/bar) | With bracket · 40 µm · NPT thread | $58.89 | |
| GAFR300C08SW | Metal bowl (C) · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread | $44.94 | |
| GAFR300C08SWK | Metal bowl (C) · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $55.84 | |
| GAFR300C08SJ | Metal bowl (C) · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread | $43.87 | |
| GAFR300C08SJK | Metal bowl (C) · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $54.77 | |
| GAFR300C08SJW | Metal bowl (C) · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread | $43.87 | |
| GAFR300C08SJWK | Metal bowl (C) · Differential + manual drain | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $54.77 | |
| GAFR300C08SN | Metal bowl (C) · Differential + manual drain | Standard (S) · No gauge (N) | With bracket · 40 µm · PT thread | $39.52 | |
| GAFR300C08SNK | Metal bowl (C) · Differential + manual drain | Standard (S) · No gauge (N) | With bracket · 40 µm · PT thread · Check valve (K) | $50.41 | |
| GAFR300C08SNW | Metal bowl (C) · Differential + manual drain | Standard (S) · No gauge (N) | With bracket · 5 µm (W) · PT thread | $39.52 | |
| GAFR300C08SNWK | Metal bowl (C) · Differential + manual drain | Standard (S) · No gauge (N) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $50.41 | |
| GAFR300C08SJN | Metal bowl (C) · Differential + manual drain | Standard (S) · No gauge (N) | No bracket (J) · 40 µm · PT thread | $38.41 | |
| GAFR300C08SJNK | Metal bowl (C) · Differential + manual drain | Standard (S) · No gauge (N) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $49.30 | |
| GAFR300C08SJNW | Metal bowl (C) · Differential + manual drain | Standard (S) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread | $38.41 | |
| GAFR300C08SJNWK | Metal bowl (C) · Differential + manual drain | Standard (S) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $49.30 | |
| GAFR300C08L | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread | $44.94 | |
| GAFR300C08LK | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread · Check valve (K) | $55.84 | |
| GAFR300C08LW | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread | $44.94 | |
| GAFR300C08LWK | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $55.84 | |
| GAFR300C08LJ | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread | $43.87 | |
| GAFR300C08LJK | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $54.77 | |
| GAFR300C08LJW | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread | $43.87 | |
| GAFR300C08LJWK | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $54.77 | |
| GAFR300C08LN | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · No gauge (N) | With bracket · 40 µm · PT thread | $39.52 | |
| GAFR300C08LNK | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · No gauge (N) | With bracket · 40 µm · PT thread · Check valve (K) | $50.41 | |
| GAFR300C08LNW | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · No gauge (N) | With bracket · 5 µm (W) · PT thread | $39.52 | |
| GAFR300C08LNWK | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · No gauge (N) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $50.41 | |
| GAFR300C08LJN | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · No gauge (N) | No bracket (J) · 40 µm · PT thread | $38.41 | |
| GAFR300C08LJNK | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · No gauge (N) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $49.30 | |
| GAFR300C08LJNW | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread | $38.41 | |
| GAFR300C08LJNWK | Metal bowl (C) · Differential + manual drain | Low-pressure (L) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $49.30 | |
| GAFR300C08AS | Metal bowl (C) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread | $53.66 | |
| GAFR300C08ASK | Metal bowl (C) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread · Check valve (K) | $64.56 | |
| GAFR300C08ASW | Metal bowl (C) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread | $53.66 | |
| GAFR300C08ASWK | Metal bowl (C) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $64.56 | |
| GAFR300C08ASJ | Metal bowl (C) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread | $52.59 | |
| GAFR300C08ASJK | Metal bowl (C) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $63.49 | |
| GAFR300C08ASJW | Metal bowl (C) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread | $52.59 | |
| GAFR300C08ASJWK | Metal bowl (C) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $63.49 | |
| GAFR300C08ASN | Metal bowl (C) · Automatic drain (A) | Standard (S) · No gauge (N) | With bracket · 40 µm · PT thread | $48.23 | |
| GAFR300C08ASNK | Metal bowl (C) · Automatic drain (A) | Standard (S) · No gauge (N) | With bracket · 40 µm · PT thread · Check valve (K) | $59.13 | |
| GAFR300C08ASNW | Metal bowl (C) · Automatic drain (A) | Standard (S) · No gauge (N) | With bracket · 5 µm (W) · PT thread | $48.23 | |
| GAFR300C08ASNWK | Metal bowl (C) · Automatic drain (A) | Standard (S) · No gauge (N) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $59.13 | |
| GAFR300C08ASJN | Metal bowl (C) · Automatic drain (A) | Standard (S) · No gauge (N) | No bracket (J) · 40 µm · PT thread | $47.12 | |
| GAFR300C08ASJNK | Metal bowl (C) · Automatic drain (A) | Standard (S) · No gauge (N) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $58.02 | |
| GAFR300C08ASJNW | Metal bowl (C) · Automatic drain (A) | Standard (S) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread | $47.12 | |
| GAFR300C08ASJNWK | Metal bowl (C) · Automatic drain (A) | Standard (S) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $58.02 | |
| GAFR300C08AL | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread | $53.66 | |
| GAFR300C08ALK | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread · Check valve (K) | $64.56 | |
| GAFR300C08ALW | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread | $53.66 | |
| GAFR300C08ALWK | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $64.56 | |
| GAFR300C08ALJ | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread | $52.59 | |
| GAFR300C08ALJK | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $63.49 | |
| GAFR300C08ALJW | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread | $52.59 | |
| GAFR300C08ALJWK | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $63.49 | |
| GAFR300C08ALN | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | With bracket · 40 µm · PT thread | $48.23 | |
| GAFR300C08ALNK | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | With bracket · 40 µm · PT thread · Check valve (K) | $59.13 | |
| GAFR300C08ALNW | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | With bracket · 5 µm (W) · PT thread | $48.23 | |
| GAFR300C08ALNWK | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $59.13 | |
| GAFR300C08ALJN | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | No bracket (J) · 40 µm · PT thread | $47.12 | |
| GAFR300C08ALJNK | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $58.02 | |
| GAFR300C08ALJNW | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread | $47.12 | |
| GAFR300C08ALJNWK | Metal bowl (C) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $58.02 | |
| GAFR300N08L | Nylon bowl (N) · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread | $44.94 | |
| GAFR300N08LJ | Nylon bowl (N) · Differential + manual drain | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread | $43.87 | |
| GAFR300N08AS | Nylon bowl (N) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread | $53.66 | |
| GAFR300N08ASK | Nylon bowl (N) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread · Check valve (K) | $64.56 | |
| GAFR300N08ASW | Nylon bowl (N) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread | $53.66 | |
| GAFR300N08ASWK | Nylon bowl (N) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $64.56 | |
| GAFR300N08ASJ | Nylon bowl (N) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread | $52.59 | |
| GAFR300N08ASJK | Nylon bowl (N) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $63.49 | |
| GAFR300N08ASJW | Nylon bowl (N) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread | $52.59 | |
| GAFR300N08ASJWK | Nylon bowl (N) · Automatic drain (A) | Standard (S) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $63.49 | |
| GAFR300N08ASN | Nylon bowl (N) · Automatic drain (A) | Standard (S) · No gauge (N) | With bracket · 40 µm · PT thread | $48.23 | |
| GAFR300N08ASNK | Nylon bowl (N) · Automatic drain (A) | Standard (S) · No gauge (N) | With bracket · 40 µm · PT thread · Check valve (K) | $59.13 | |
| GAFR300N08ASNW | Nylon bowl (N) · Automatic drain (A) | Standard (S) · No gauge (N) | With bracket · 5 µm (W) · PT thread | $48.23 | |
| GAFR300N08ASNWK | Nylon bowl (N) · Automatic drain (A) | Standard (S) · No gauge (N) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $59.13 | |
| GAFR300N08ASJN | Nylon bowl (N) · Automatic drain (A) | Standard (S) · No gauge (N) | No bracket (J) · 40 µm · PT thread | $47.12 | |
| GAFR300N08ASJNK | Nylon bowl (N) · Automatic drain (A) | Standard (S) · No gauge (N) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $58.02 | |
| GAFR300N08ASJNW | Nylon bowl (N) · Automatic drain (A) | Standard (S) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread | $47.12 | |
| GAFR300N08ASJNWK | Nylon bowl (N) · Automatic drain (A) | Standard (S) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $58.02 | |
| GAFR300N08AL | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread | $53.66 | |
| GAFR300N08ALK | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 40 µm · PT thread · Check valve (K) | $64.56 | |
| GAFR300N08ALW | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread | $53.66 | |
| GAFR300N08ALWK | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $64.56 | |
| GAFR300N08ALJ | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread | $52.59 | |
| GAFR300N08ALJK | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $63.49 | |
| GAFR300N08ALJW | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread | $52.59 | |
| GAFR300N08ALJWK | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · Round clip-in gauge (MPa/psi) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $63.49 | |
| GAFR300N08ALN | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | With bracket · 40 µm · PT thread | $48.23 | |
| GAFR300N08ALNK | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | With bracket · 40 µm · PT thread · Check valve (K) | $59.13 | |
| GAFR300N08ALNW | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | With bracket · 5 µm (W) · PT thread | $48.23 | |
| GAFR300N08ALNWK | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $59.13 | |
| GAFR300N08ALJN | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | No bracket (J) · 40 µm · PT thread | $47.12 | |
| GAFR300N08ALJNK | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $58.02 | |
| GAFR300N08ALJNW | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread | $47.12 | |
| GAFR300N08ALJNWK | Nylon bowl (N) · Automatic drain (A) | Low-pressure (L) · No gauge (N) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $58.02 |
Need a combination that is not listed? Request a quote.
Where the GAFR300-08 Is Used
Machine air inlet
Fit the GAFR300-08 where compressed air enters a machine.
Stable working pressure
Set and hold the pressure your valves and cylinders need.
Pneumatic stations
Feeds cylinders, valves and tools on one air line.
Choosing the Right GAFR300-08 Configuration
Start with the bowl and drain: PC, metal or nylon bowls. The standard drain is differential-pressure plus manual; A gives an automatic drain.
Then the type and gauge: standard (S) regulates 0.15 to 0.9 MPa, low-pressure (L) 0.15 to 0.4 MPa. The round gauge clips in; its scale follows the thread: PT reads MPa/psi, G reads bar/MPa, NPT reads psi/bar. N means no gauge.
Finally the configuration. A mounting bracket is included unless the code carries J. The 40 µm element is standard; W gives a 5 µm element for cleaner air. Thread is PT unless the code ends in G (G thread) or T (NPT), before any K. K adds a check valve.
AirTAC GAFR300-08 FAQ
0.15 to 0.9 MPa (20-130 psi). Low-pressure (L) versions: 0.15 to 0.4 MPa (20-58 psi).
1/4" (08), PT thread as standard; T = NPT at the end of the code.
The clip-in round gauge reads MPa/psi on PT versions, bar/MPa on G versions and psi/bar on NPT (T) versions. N means no gauge.
No. You can order a single GAFR300-08. Orders are processed and handed to the carrier within 3-5 business days.
Buying the GAFR300-08 from AirtacDistr
Genuine AirTAC parts
Every order code on this page is the AirTAC factory part number. Specifications follow the AirTAC Products Catalog 2026A. About us
Ready in 3-5 business days
That is our time to process the order and hand it to the carrier. No minimum order: a single piece can be ordered.
14-day returns, 1-year warranty
Return within 14 days of delivery; the buyer pays return shipping. The warranty covers defects not caused by misuse. Return policy
Engineering help
Send your application details and we will confirm the right order code, usually within 7-8 hours. Ask us
Page data checked against the live catalog on 2026-10-30.
Request a Quote for the GAFR300-08
Send the order code, quantity and destination. We confirm price, stock and lead time, usually within 7-8 hours.
Thank you. We received your request for GAFR300C08S and will confirm price, stock and lead time — usually within 7-8 hours.
