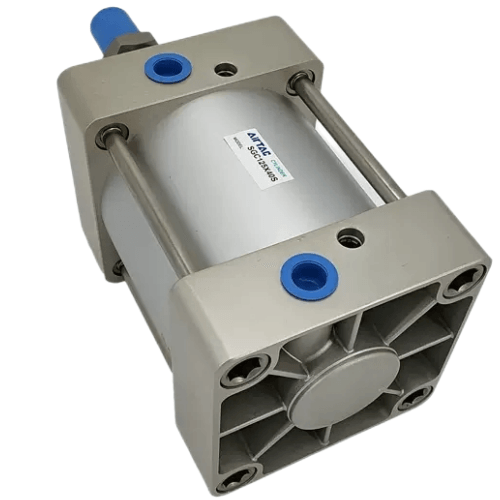

AirTAC SGC200 Large-Bore Air Cylinder, 200 mm Bore
Every AirTAC SGC200 configuration on one page: 191 stock order codes with strokes from 20 to 2000 mm and 8 mountings, from $339.41. Pick a stroke, mounting and version to see the exact order code and price.
This combination is not a stock order code. Request a quote and we will confirm availability and price.
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the AirTAC SGC200
The AirTAC SGC200 is a double-acting aluminium-barrel large-bore ISO cylinder with a 200 mm bore and a 40 mm piston rod. At 0.5 MPa it pushes 15708 N and pulls 15080 N; at 0.7 MPa that rises to 21991 N push and 21112 N pull. Force depends on bore and pressure only, so every stroke on this page gives the same output.
All SGC200 versions share 3/4" air ports, an M36×2.0 rod thread and 50 mm adjustable air cushions. The cylinder runs on filtered air between 0.15 and 1.0 MPa (proof 1.5 MPa), from -20 to +70 °C, at 30 to 500 mm/s. This page lists 191 stock order codes with strokes from 20 to 2000 mm; the catalog maximum stroke is 1500 mm, and the longer codes are non-standard strokes we already supply.
SGC200 Technical Specifications
| Bore size | Ø200 mm |
|---|---|
| Stock strokes | 20 – 2000 mm |
| Catalog maximum stroke | 1500 mm (longer on request) |
| Acting type | Double acting |
| Port size | 3/4" (PT standard, G) |
| Piston rod / rod thread | Ø40 mm / M36×2.0 |
| Fluid | Air (filtered by 40 µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 500 mm/s |
| Cushion | Adjustable air cushion, 50 mm |
Source: AirTAC Products Catalog 2026A (PDF01-P0408), SG/SGC series ordering code and specifications. With FKM (H) seals the range is 0 to +150 °C.
Theoretical output force (Ø200 mm)
| Pressure | Push | Pull |
|---|---|---|
| 0.5 MPa | 15708 N | 15080 N |
| 0.7 MPa | 21991 N | 21112 N |
Push = pressure × bore area; pull subtracts the Ø40 mm rod area. Usable force is lower because of friction and back-pressure.
How the SGC200 Order Code Is Built
| SGC200 | Series and bore (200 mm) |
|---|---|
| X100 | Stroke in mm |
| S | Built-in magnet for position sensors (blank = none) |
| LB / FA / FB / CA / CB / CR / TC / FTC | Mounting: LB foot; FA front flange; FB rear flange; CA single clevis; CB double clevis; CR rear pin clevis; TC center trunnion; FTC front trunnion (blank = none) |
| H / N | Seal: H = FKM, N = NBR (blank = standard seal) |
| G | Port thread: G = G (BSPP), blank = PT |
All AirTAC SGC200 Order Codes (191)
Each order code links to its own datasheet page. Use Select to load it into the configurator above.
| Order code | Stroke (mm) | Mounting | Magnet · Seal · Thread | Price | Select |
|---|---|---|---|---|---|
| SGC200X20 | 20 mm | Basic (no mounting) | - · std seal · PT | $339.41 | |
| SGC200X20TC | 20 mm | TC center trunnion | - · std seal · PT | $532.50 | |
| SGC200X25 | 25 mm | Basic (no mounting) | - · std seal · PT | $339.41 | |
| SGC200X25S | 25 mm | Basic (no mounting) | S · std seal · PT | $348.71 | |
| SGC200X30 | 30 mm | Basic (no mounting) | - · std seal · PT | $350.11 | |
| SGC200X30S | 30 mm | Basic (no mounting) | S · std seal · PT | $359.41 | |
| SGC200X35 | 35 mm | Basic (no mounting) | - · std seal · PT | $350.11 | |
| SGC200X40 | 40 mm | Basic (no mounting) | - · std seal · PT | $350.11 | |
| SGC200X40S | 40 mm | Basic (no mounting) | S · std seal · PT | $359.41 | |
| SGC200X50 | 50 mm | Basic (no mounting) | - · std seal · PT | $350.11 | |
| SGC200X50S | 50 mm | Basic (no mounting) | S · std seal · PT | $359.41 | |
| SGC200X50SH | 50 mm | Basic (no mounting) | S · FKM · PT | $452.47 | |
| SGC200X50CB | 50 mm | CB double clevis | - · std seal · PT | $473.41 | |
| SGC200X50TC | 50 mm | TC center trunnion | - · std seal · PT | $543.20 | |
| SGC200X60 | 60 mm | Basic (no mounting) | - · std seal · PT | $362.67 | |
| SGC200X60S | 60 mm | Basic (no mounting) | S · std seal · PT | $371.97 | |
| SGC200X70 | 70 mm | Basic (no mounting) | - · std seal · PT | $362.67 | |
| SGC200X75 | 75 mm | Basic (no mounting) | - · std seal · PT | $362.67 | |
| SGC200X75S | 75 mm | Basic (no mounting) | S · std seal · PT | $371.97 | |
| SGC200X75SH | 75 mm | Basic (no mounting) | S · FKM · PT | $465.03 | |
| SGC200X75TC | 75 mm | TC center trunnion | - · std seal · PT | $555.76 | |
| SGC200X75STC | 75 mm | TC center trunnion | S · std seal · PT | $565.07 | |
| SGC200X80 | 80 mm | Basic (no mounting) | - · std seal · PT | $374.98 | |
| SGC200X80H | 80 mm | Basic (no mounting) | - · FKM · PT | $468.03 | |
| SGC200X80S | 80 mm | Basic (no mounting) | S · std seal · PT | $384.28 | |
| SGC200X80SH | 80 mm | Basic (no mounting) | S · FKM · PT | $477.34 | |
| SGC200X85 | 85 mm | Basic (no mounting) | - · std seal · PT | $374.98 | |
| SGC200X90 | 90 mm | Basic (no mounting) | - · std seal · PT | $374.98 | |
| SGC200X100 | 100 mm | Basic (no mounting) | - · std seal · PT | $374.98 | |
| SGC200X100H | 100 mm | Basic (no mounting) | - · FKM · PT | $468.03 | |
| SGC200X100S | 100 mm | Basic (no mounting) | S · std seal · PT | $384.28 | |
| SGC200X100SH | 100 mm | Basic (no mounting) | S · FKM · PT | $477.34 | |
| SGC200X100SN | 100 mm | Basic (no mounting) | S · NBR · PT | $384.28 | |
| SGC200X100SNG | 100 mm | Basic (no mounting) | S · NBR · G | $384.28 | |
| SGC200X100TC | 100 mm | TC center trunnion | - · std seal · PT | $568.06 | |
| SGC200X100STC | 100 mm | TC center trunnion | S · std seal · PT | $577.37 | |
| SGC200X110 | 110 mm | Basic (no mounting) | - · std seal · PT | $387.54 | |
| SGC200X120S | 120 mm | Basic (no mounting) | S · std seal · PT | $396.84 | |
| SGC200X120CA | 120 mm | CA single clevis | - · std seal · PT | $506.18 | |
| SGC200X120STC | 120 mm | TC center trunnion | S · std seal · PT | $589.93 | |
| SGC200X125 | 125 mm | Basic (no mounting) | - · std seal · PT | $387.54 | |
| SGC200X125S | 125 mm | Basic (no mounting) | S · std seal · PT | $396.84 | |
| SGC200X125CB | 125 mm | CB double clevis | - · std seal · PT | $510.84 | |
| SGC200X130 | 130 mm | Basic (no mounting) | - · std seal · PT | $399.89 | |
| SGC200X130S | 130 mm | Basic (no mounting) | S · std seal · PT | $409.20 | |
| SGC200X135 | 135 mm | Basic (no mounting) | - · std seal · PT | $399.89 | |
| SGC200X135S | 135 mm | Basic (no mounting) | S · std seal · PT | $409.20 | |
| SGC200X140S | 140 mm | Basic (no mounting) | S · std seal · PT | $409.20 | |
| SGC200X145S | 145 mm | Basic (no mounting) | S · std seal · PT | $409.20 | |
| SGC200X150 | 150 mm | Basic (no mounting) | - · std seal · PT | $399.89 | |
| SGC200X150H | 150 mm | Basic (no mounting) | - · FKM · PT | $492.95 | |
| SGC200X150S | 150 mm | Basic (no mounting) | S · std seal · PT | $409.20 | |
| SGC200X150FA | 150 mm | FA front flange | - · std seal · PT | $511.56 | |
| SGC200X150SFA | 150 mm | FA front flange | S · std seal · PT | $520.86 | |
| SGC200X150TC | 150 mm | TC center trunnion | - · std seal · PT | $592.98 | |
| SGC200X150STC | 150 mm | TC center trunnion | S · std seal · PT | $602.29 | |
| SGC200X160 | 160 mm | Basic (no mounting) | - · std seal · PT | $412.45 | |
| SGC200X160S | 160 mm | Basic (no mounting) | S · std seal · PT | $421.76 | |
| SGC200X170TC | 170 mm | TC center trunnion | - · std seal · PT | $605.55 | |
| SGC200X175 | 175 mm | Basic (no mounting) | - · std seal · PT | $412.45 | |
| SGC200X175S | 175 mm | Basic (no mounting) | S · std seal · PT | $421.76 | |
| SGC200X175TC | 175 mm | TC center trunnion | - · std seal · PT | $605.55 | |
| SGC200X175STC | 175 mm | TC center trunnion | S · std seal · PT | $614.85 | |
| SGC200X180 | 180 mm | Basic (no mounting) | - · std seal · PT | $424.76 | |
| SGC200X180S | 180 mm | Basic (no mounting) | S · std seal · PT | $434.07 | |
| SGC200X180FB | 180 mm | FB rear flange | - · std seal · PT | $536.43 | |
| SGC200X180CA | 180 mm | CA single clevis | - · std seal · PT | $543.40 | |
| SGC200X180STC | 180 mm | TC center trunnion | S · std seal · PT | $627.15 | |
| SGC200X200 | 200 mm | Basic (no mounting) | - · std seal · PT | $424.76 | |
| SGC200X200S | 200 mm | Basic (no mounting) | S · std seal · PT | $434.07 | |
| SGC200X200SH | 200 mm | Basic (no mounting) | S · FKM · PT | $527.12 | |
| SGC200X200SN | 200 mm | Basic (no mounting) | S · NBR · PT | $434.07 | |
| SGC200X200STC | 200 mm | TC center trunnion | S · std seal · PT | $627.15 | |
| SGC200X210S | 210 mm | Basic (no mounting) | S · std seal · PT | $446.63 | |
| SGC200X220 | 220 mm | Basic (no mounting) | - · std seal · PT | $437.32 | |
| SGC200X220S | 220 mm | Basic (no mounting) | S · std seal · PT | $446.63 | |
| SGC200X225 | 225 mm | Basic (no mounting) | - · std seal · PT | $437.32 | |
| SGC200X225S | 225 mm | Basic (no mounting) | S · std seal · PT | $446.63 | |
| SGC200X230S | 230 mm | Basic (no mounting) | S · std seal · PT | $458.98 | |
| SGC200X250 | 250 mm | Basic (no mounting) | - · std seal · PT | $449.68 | |
| SGC200X250S | 250 mm | Basic (no mounting) | S · std seal · PT | $458.98 | |
| SGC200X250SH | 250 mm | Basic (no mounting) | S · FKM · PT | $552.04 | |
| SGC200X250SN | 250 mm | Basic (no mounting) | S · NBR · PT | $458.98 | |
| SGC200X250SFA | 250 mm | FA front flange | S · std seal · PT | $570.65 | |
| SGC200X250STC | 250 mm | TC center trunnion | S · std seal · PT | $652.07 | |
| SGC200X270S | 270 mm | Basic (no mounting) | S · std seal · PT | $483.85 | |
| SGC200X270STC | 270 mm | TC center trunnion | S · std seal · PT | $676.94 | |
| SGC200X270SFTC | 270 mm | FTC front trunnion | S · std seal · PT | $646.70 | |
| SGC200X275 | 275 mm | Basic (no mounting) | - · std seal · PT | $474.55 | |
| SGC200X275S | 275 mm | Basic (no mounting) | S · std seal · PT | $483.85 | |
| SGC200X275TC | 275 mm | TC center trunnion | - · std seal · PT | $667.63 | |
| SGC200X280 | 280 mm | Basic (no mounting) | - · std seal · PT | $474.55 | |
| SGC200X280S | 280 mm | Basic (no mounting) | S · std seal · PT | $483.85 | |
| SGC200X300 | 300 mm | Basic (no mounting) | - · std seal · PT | $474.55 | |
| SGC200X300H | 300 mm | Basic (no mounting) | - · FKM · PT | $567.60 | |
| SGC200X300N | 300 mm | Basic (no mounting) | - · NBR · PT | $474.55 | |
| SGC200X300S | 300 mm | Basic (no mounting) | S · std seal · PT | $483.85 | |
| SGC200X300SH | 300 mm | Basic (no mounting) | S · FKM · PT | $576.91 | |
| SGC200X300SN | 300 mm | Basic (no mounting) | S · NBR · PT | $483.85 | |
| SGC200X300TC | 300 mm | TC center trunnion | - · std seal · PT | $667.63 | |
| SGC200X300STC | 300 mm | TC center trunnion | S · std seal · PT | $676.94 | |
| SGC200X300SFTC | 300 mm | FTC front trunnion | S · std seal · PT | $646.70 | |
| SGC200X320 | 320 mm | Basic (no mounting) | - · std seal · PT | $499.67 | |
| SGC200X320S | 320 mm | Basic (no mounting) | S · std seal · PT | $508.97 | |
| SGC200X330 | 330 mm | Basic (no mounting) | - · std seal · PT | $499.67 | |
| SGC200X335 | 335 mm | Basic (no mounting) | - · std seal · PT | $499.67 | |
| SGC200X340 | 340 mm | Basic (no mounting) | - · std seal · PT | $499.67 | |
| SGC200X350 | 350 mm | Basic (no mounting) | - · std seal · PT | $499.67 | |
| SGC200X350S | 350 mm | Basic (no mounting) | S · std seal · PT | $508.97 | |
| SGC200X350SH | 350 mm | Basic (no mounting) | S · FKM · PT | $602.03 | |
| SGC200X350SLB | 350 mm | LB foot | S · std seal · PT | $620.64 | |
| SGC200X350CA | 350 mm | CA single clevis | - · std seal · PT | $618.32 | |
| SGC200X350TC | 350 mm | TC center trunnion | - · std seal · PT | $692.76 | |
| SGC200X360 | 360 mm | Basic (no mounting) | - · std seal · PT | $524.59 | |
| SGC200X370S | 370 mm | Basic (no mounting) | S · std seal · PT | $533.89 | |
| SGC200X380 | 380 mm | Basic (no mounting) | - · std seal · PT | $524.59 | |
| SGC200X380S | 380 mm | Basic (no mounting) | S · std seal · PT | $533.89 | |
| SGC200X390 | 390 mm | Basic (no mounting) | - · std seal · PT | $524.59 | |
| SGC200X400 | 400 mm | Basic (no mounting) | - · std seal · PT | $524.59 | |
| SGC200X400H | 400 mm | Basic (no mounting) | - · FKM · PT | $617.64 | |
| SGC200X400S | 400 mm | Basic (no mounting) | S · std seal · PT | $533.89 | |
| SGC200X400SH | 400 mm | Basic (no mounting) | S · FKM · PT | $626.95 | |
| SGC200X400TC | 400 mm | TC center trunnion | - · std seal · PT | $717.68 | |
| SGC200X400STC | 400 mm | TC center trunnion | S · std seal · PT | $726.98 | |
| SGC200X420 | 420 mm | Basic (no mounting) | - · std seal · PT | $549.45 | |
| SGC200X430S | 430 mm | Basic (no mounting) | S · std seal · PT | $558.76 | |
| SGC200X450 | 450 mm | Basic (no mounting) | - · std seal · PT | $549.45 | |
| SGC200X450S | 450 mm | Basic (no mounting) | S · std seal · PT | $558.76 | |
| SGC200X450TC | 450 mm | TC center trunnion | - · std seal · PT | $742.55 | |
| SGC200X450STC | 450 mm | TC center trunnion | S · std seal · PT | $751.85 | |
| SGC200X470 | 470 mm | Basic (no mounting) | - · std seal · PT | $574.37 | |
| SGC200X485 | 485 mm | Basic (no mounting) | - · std seal · PT | $574.37 | |
| SGC200X500 | 500 mm | Basic (no mounting) | - · std seal · PT | $574.37 | |
| SGC200X500S | 500 mm | Basic (no mounting) | S · std seal · PT | $583.68 | |
| SGC200X500SH | 500 mm | Basic (no mounting) | S · FKM · PT | $676.73 | |
| SGC200X500TC | 500 mm | TC center trunnion | - · std seal · PT | $767.46 | |
| SGC200X520 | 520 mm | Basic (no mounting) | - · std seal · PT | $626.23 | |
| SGC200X520S | 520 mm | Basic (no mounting) | S · std seal · PT | $635.53 | |
| SGC200X530TC | 530 mm | TC center trunnion | - · std seal · PT | $819.31 | |
| SGC200X550 | 550 mm | Basic (no mounting) | - · std seal · PT | $626.23 | |
| SGC200X550S | 550 mm | Basic (no mounting) | S · std seal · PT | $635.53 | |
| SGC200X580S | 580 mm | Basic (no mounting) | S · std seal · PT | $635.53 | |
| SGC200X600 | 600 mm | Basic (no mounting) | - · std seal · PT | $626.23 | |
| SGC200X600S | 600 mm | Basic (no mounting) | S · std seal · PT | $635.53 | |
| SGC200X600TC | 600 mm | TC center trunnion | - · std seal · PT | $819.31 | |
| SGC200X600STC | 600 mm | TC center trunnion | S · std seal · PT | $828.62 | |
| SGC200X610 | 610 mm | Basic (no mounting) | - · std seal · PT | $678.13 | |
| SGC200X650 | 650 mm | Basic (no mounting) | - · std seal · PT | $678.13 | |
| SGC200X650S | 650 mm | Basic (no mounting) | S · std seal · PT | $687.43 | |
| SGC200X650SH | 650 mm | Basic (no mounting) | S · FKM · PT | $780.49 | |
| SGC200X700 | 700 mm | Basic (no mounting) | - · std seal · PT | $678.13 | |
| SGC200X700S | 700 mm | Basic (no mounting) | S · std seal · PT | $687.43 | |
| SGC200X700SH | 700 mm | Basic (no mounting) | S · FKM · PT | $780.49 | |
| SGC200X750 | 750 mm | Basic (no mounting) | - · std seal · PT | $730.24 | |
| SGC200X750S | 750 mm | Basic (no mounting) | S · std seal · PT | $739.54 | |
| SGC200X750SH | 750 mm | Basic (no mounting) | S · FKM · PT | $832.60 | |
| SGC200X750TC | 750 mm | TC center trunnion | - · std seal · PT | $923.33 | |
| SGC200X760S | 760 mm | Basic (no mounting) | S · std seal · PT | $739.54 | |
| SGC200X800 | 800 mm | Basic (no mounting) | - · std seal · PT | $730.24 | |
| SGC200X800S | 800 mm | Basic (no mounting) | S · std seal · PT | $739.54 | |
| SGC200X800FA | 800 mm | FA front flange | - · std seal · PT | $841.91 | |
| SGC200X800FTC | 800 mm | FTC front trunnion | - · std seal · PT | $893.09 | |
| SGC200X820 | 820 mm | Basic (no mounting) | - · std seal · PT | $782.35 | |
| SGC200X850 | 850 mm | Basic (no mounting) | - · std seal · PT | $782.35 | |
| SGC200X850S | 850 mm | Basic (no mounting) | S · std seal · PT | $791.66 | |
| SGC200X900 | 900 mm | Basic (no mounting) | - · std seal · PT | $782.35 | |
| SGC200X900H | 900 mm | Basic (no mounting) | - · FKM · PT | $875.41 | |
| SGC200X900N | 900 mm | Basic (no mounting) | - · NBR · PT | $782.35 | |
| SGC200X900S | 900 mm | Basic (no mounting) | S · std seal · PT | $791.66 | |
| SGC200X900SH | 900 mm | Basic (no mounting) | S · FKM · PT | $884.71 | |
| SGC200X900STC | 900 mm | TC center trunnion | S · std seal · PT | $984.75 | |
| SGC200X950 | 950 mm | Basic (no mounting) | - · std seal · PT | $834.21 | |
| SGC200X950S | 950 mm | Basic (no mounting) | S · std seal · PT | $843.51 | |
| SGC200X980S | 980 mm | Basic (no mounting) | S · std seal · PT | $843.51 | |
| SGC200X1000 | 1000 mm | Basic (no mounting) | - · std seal · PT | $834.21 | |
| SGC200X1000H | 1000 mm | Basic (no mounting) | - · FKM · PT | $927.26 | |
| SGC200X1000S | 1000 mm | Basic (no mounting) | S · std seal · PT | $843.51 | |
| SGC200X1000SH | 1000 mm | Basic (no mounting) | S · FKM · PT | $936.57 | |
| SGC200X1000FB | 1000 mm | FB rear flange | - · std seal · PT | $945.87 | |
| SGC200X1000STC | 1000 mm | TC center trunnion | S · std seal · PT | $1,036.60 | |
| SGC200X1040S | 1040 mm | Basic (no mounting) | S · std seal · PT | $900.53 | |
| SGC200X1050S | 1050 mm | Basic (no mounting) | S · std seal · PT | $900.53 | |
| SGC200X1100 | 1100 mm | Basic (no mounting) | - · std seal · PT | $891.23 | |
| SGC200X1100S | 1100 mm | Basic (no mounting) | S · std seal · PT | $900.53 | |
| SGC200X1190S | 1190 mm | Basic (no mounting) | S · std seal · PT | $957.50 | |
| SGC200X1200 | 1200 mm | Basic (no mounting) | - · std seal · PT | $948.20 | |
| SGC200X1250 | 1250 mm | Basic (no mounting) | - · std seal · PT | $1,005.22 | |
| SGC200X1300 | 1300 mm | Basic (no mounting) | - · std seal · PT | $1,005.22 | |
| SGC200X1350S | 1350 mm | Basic (no mounting) | S · std seal · PT | $1,071.50 | |
| SGC200X1400S | 1400 mm | Basic (no mounting) | S · std seal · PT | $1,071.50 | |
| SGC200X2000S | 2000 mm | Basic (no mounting) | S · std seal · PT | $1,413.47 |
Need a combination that is not listed? Request a quote.
Where the SGC200 Is Used
High-force actuation
Over 15.7 kN at 0.5 MPa for presses, lifting tables and dampers.
Process and material handling
Opens chutes, gates and dampers on bulk-handling equipment.
Pivoting heavy loads
Clevis and trunnion versions swing large doors and platforms.
Choosing the Right SGC200 Configuration
Start with the stroke. Pick the exact travel your machine needs; a longer stroke adds length, weight and air consumption without adding force. If your length is not listed, request a quote and we will confirm whether it can be built.
Then choose the mounting. Basic (no code) uses the cylinder's own mounting holes. This bore is stocked with LB foot, FA front flange, FB rear flange, CA single clevis, CB double clevis, TC center trunnion, FTC front trunnion. Foot and flange mountings hold the cylinder rigid for straight-line loads; clevis and trunnion mountings let it pivot when the load moves in an arc.
Finally pick the version: S adds a magnet for position sensors; H (FKM) is for higher temperatures or oil-contaminated air; N specifies NBR; G replaces the standard PT ports with G (BSPP).
AirTAC SGC200 FAQ
No. Every SGC200 gives about 15708 N push and 15080 N pull at 0.5 MPa, whatever the stroke.
3/4" ports, PT thread as standard. The G version has G (BSPP) ports.
Brackets: LB foot, FA front flange, FB rear flange, CA single clevis, CB double clevis, TC center trunnion, FTC front trunnion. Pick a pivoting cover or bracket when the load moves in an arc, a rigid one for straight-line loads.
Usually yes. Request a quote with the stroke, mounting and version and we will confirm whether it can be built, plus price and lead time.
0.15 to 1.0 MPa operating pressure (proof 1.5 MPa) and -20 to +70 °C on filtered air.
No. You can order a single SGC200. Orders are processed and handed to the carrier within 3-5 business days.
Buying the SGC200 from AirtacDistr
Genuine AirTAC parts
Every order code on this page is the AirTAC factory part number. Specifications follow the AirTAC Products Catalog 2026A. About us
Ready in 3-5 business days
That is our time to process the order and hand it to the carrier. No minimum order: a single piece can be ordered.
14-day returns, 1-year warranty
Return within 14 days of delivery; the buyer pays return shipping. The warranty covers defects not caused by misuse. Return policy
Engineering help
Send your application details and we will confirm the right order code, usually within 7-8 hours. Ask us
Page data checked against the live catalog on 2026-10-28.
Request a Quote for the SGC200
Send the order code, quantity and destination. We confirm price, stock and lead time, usually within 7-8 hours.
