100% Genuine AirTAC SEJ50 Adjustable-Stroke Cylinder, 50 mm Bore

AirTAC SEJ Series · Ø50 mm stroke-adjustable ISO 15552 tie-rod-free standard cylinder

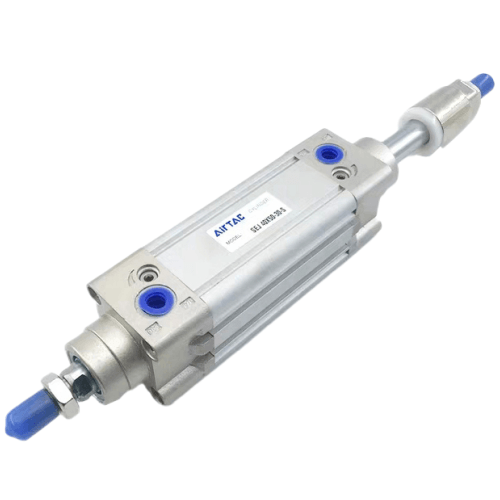

AirTAC SEJ50 Adjustable-Stroke Cylinder, 50 mm Bore

Every AirTAC SEJ50 configuration on one page: 120 stock order codes with strokes from 20 to 1000 mm, 3 adjustment values (10-100 mm), 3 mounting styles and magnet, seal and thread versions, from $85.11. Pick a stroke, adjustment, mounting and version to see the exact order code and price.

Stroke (mm)

Stroke adjustment

Mounting · Version

Order code SEJ50X75-50 Full SEJ50X75-50 datasheet

This combination is not a stock order code. Request a quote and we will confirm availability and price.

$90.95 $98.45Save 7%

Request a Quote

No minimum order. A single piece can be ordered.
Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.

About the AirTAC SEJ50

The AirTAC SEJ50 is a double-acting stroke-adjustable ISO 15552 tie-rod-free standard cylinder with a 50 mm bore and a 20 mm piston rod. At 0.5 MPa it pushes 982 N and pulls 825 N; at 0.7 MPa that rises to 1374 N push and 1155 N pull. A rear stroke-adjustment screw lets you shorten the travel by up to the adjustment amount in the code (10-100 mm across the codes on this page). Force depends on bore and pressure only, so every stroke on this page gives the same output.

All SEJ50 versions share 1/4" air ports, an M16×1.5 rod thread and 30 mm adjustable air cushions. The cylinder runs on filtered air between 0.15 and 1.0 MPa (proof 1.5 MPa), from -20 to +70 °C, at 30 to 800 mm/s. This page lists 120 stock order codes with strokes from 20 to 1000 mm; catalog standard strokes run up to 1200 mm.

SEJ50 Technical Specifications

Bore size	Ø50 mm
Stock strokes	20 – 1000 mm
Catalog standard stroke	up to 1200 mm (longer on request)
Acting type	Double acting
Port size	1/4" (PT standard)
Piston rod / rod thread	Ø20 mm / M16×1.5

Fluid	Air (filtered by 40 µm element)
Operating pressure	0.15 – 1.0 MPa
Proof pressure	1.5 MPa
Temperature	-20 to +70 °C
Speed range	30 – 800 mm/s
Cushion	Adjustable, 30 mm

Source: AirTAC Products Catalog 2026A, SE series (SEJ adjustable-stroke version) (ISO 15552). With FKM (H) seals the temperature range is 0 to +150 °C.

Theoretical output force (Ø50 mm)

Pressure	Push	Pull
0.5 MPa	982 N	825 N
0.7 MPa	1374 N	1155 N

Push = pressure × bore area; pull subtracts the Ø20 mm rod area. Usable force is lower because of friction and back-pressure.

How the SEJ50 Order Code Is Built

SEJ50	Series and bore (50 mm)
X100	Stroke in mm
-10	Stroke adjustment in mm (10, 20, 30, 40, 50, 75, 100)
S	Built-in magnet for position sensors (blank = none)
FA / FTC	Mounting: FA front flange, FTC front trunnion
H / N	Seal: H = FKM, N = NBR (blank = standard seal)
G	Port thread: G = G (BSPP), blank = PT

All AirTAC SEJ50 Order Codes (120)

Each order code links to its own datasheet page. Use Select to load it into the configurator above.

Order code	Stroke (mm)	Adjust (mm)	Mounting · Magnet · Seal · Thread	Price
SEJ50X20-10S	20 mm	10 mm	Basic (no mounting) · S · std seal · PT	$88.83
SEJ50X20-20	20 mm	20 mm	Basic (no mounting) · - · std seal · PT	$85.11
SEJ50X25-10	25 mm	10 mm	Basic (no mounting) · - · std seal · PT	$85.11
SEJ50X25-10S	25 mm	10 mm	Basic (no mounting) · S · std seal · PT	$88.83
SEJ50X25-20	25 mm	20 mm	Basic (no mounting) · - · std seal · PT	$85.11
SEJ50X25-20S	25 mm	20 mm	Basic (no mounting) · S · std seal · PT	$88.83
SEJ50X25-30	25 mm	30 mm	Basic (no mounting) · - · std seal · PT	$85.11
SEJ50X25-30S	25 mm	30 mm	Basic (no mounting) · S · std seal · PT	$88.83
SEJ50X30-10S	30 mm	10 mm	Basic (no mounting) · S · std seal · PT	$91.88
SEJ50X30-20	30 mm	20 mm	Basic (no mounting) · - · std seal · PT	$88.16
SEJ50X30-20S	30 mm	20 mm	Basic (no mounting) · S · std seal · PT	$91.88
SEJ50X60-20S	60 mm	20 mm	Basic (no mounting) · S · std seal · PT	$94.67
SEJ50X60-30	60 mm	30 mm	Basic (no mounting) · - · std seal · PT	$90.95
SEJ50X60-30S	60 mm	30 mm	Basic (no mounting) · S · std seal · PT	$94.67
SEJ50X65-30S	65 mm	30 mm	Basic (no mounting) · S · std seal · PT	$94.67
SEJ50X65-50S	65 mm	50 mm	Basic (no mounting) · S · std seal · PT	$94.67
SEJ50X70-10S	70 mm	10 mm	Basic (no mounting) · S · std seal · PT	$94.67
SEJ50X70-20S	70 mm	20 mm	Basic (no mounting) · S · std seal · PT	$94.67
SEJ50X70-40S	70 mm	40 mm	Basic (no mounting) · S · std seal · PT	$94.67
SEJ50X75-10S	75 mm	10 mm	Basic (no mounting) · S · std seal · PT	$94.67
SEJ50X75-20S	75 mm	20 mm	Basic (no mounting) · S · std seal · PT	$94.67
SEJ50X75-20FA	75 mm	20 mm	FA front flange · - · std seal · PT	$99.32
SEJ50X75-20FTC	75 mm	20 mm	FTC front trunnion · - · std seal · PT	$111.89
SEJ50X75-30	75 mm	30 mm	Basic (no mounting) · - · std seal · PT	$90.95
SEJ50X75-30S	75 mm	30 mm	Basic (no mounting) · S · std seal · PT	$94.67
SEJ50X75-40S	75 mm	40 mm	Basic (no mounting) · S · std seal · PT	$94.67
SEJ50X75-50	75 mm	50 mm	Basic (no mounting) · - · std seal · PT	$90.95
SEJ50X75-50S	75 mm	50 mm	Basic (no mounting) · S · std seal · PT	$94.67
SEJ50X80-10S	80 mm	10 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X80-20	80 mm	20 mm	Basic (no mounting) · - · std seal · PT	$93.48
SEJ50X80-20S	80 mm	20 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X80-30S	80 mm	30 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X80-40S	80 mm	40 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X80-50S	80 mm	50 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X80-50SN	80 mm	50 mm	Basic (no mounting) · S · NBR · PT	$97.21
SEJ50X80-75S	80 mm	75 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X100-10	100 mm	10 mm	Basic (no mounting) · - · std seal · PT	$93.48
SEJ50X100-10S	100 mm	10 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X100-20	100 mm	20 mm	Basic (no mounting) · - · std seal · PT	$93.48
SEJ50X100-20S	100 mm	20 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X100-20FA	100 mm	20 mm	FA front flange · - · std seal · PT	$101.86
SEJ50X100-30S	100 mm	30 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X100-40	100 mm	40 mm	Basic (no mounting) · - · std seal · PT	$93.48
SEJ50X100-40S	100 mm	40 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X100-50	100 mm	50 mm	Basic (no mounting) · - · std seal · PT	$93.48
SEJ50X100-50S	100 mm	50 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X100-75	100 mm	75 mm	Basic (no mounting) · - · std seal · PT	$93.48
SEJ50X100-75S	100 mm	75 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X100-100S	100 mm	100 mm	Basic (no mounting) · S · std seal · PT	$97.21
SEJ50X120-30S	120 mm	30 mm	Basic (no mounting) · S · std seal · PT	$101.39
SEJ50X120-40S	120 mm	40 mm	Basic (no mounting) · S · std seal · PT	$101.39
SEJ50X125-10S	125 mm	10 mm	Basic (no mounting) · S · std seal · PT	$101.39
SEJ50X125-20S	125 mm	20 mm	Basic (no mounting) · S · std seal · PT	$101.39
SEJ50X125-30	125 mm	30 mm	Basic (no mounting) · - · std seal · PT	$97.67
SEJ50X125-30S	125 mm	30 mm	Basic (no mounting) · S · std seal · PT	$101.39
SEJ50X125-40S	125 mm	40 mm	Basic (no mounting) · S · std seal · PT	$101.39
SEJ50X125-50S	125 mm	50 mm	Basic (no mounting) · S · std seal · PT	$101.39
SEJ50X125-75S	125 mm	75 mm	Basic (no mounting) · S · std seal · PT	$101.39
SEJ50X125-100	125 mm	100 mm	Basic (no mounting) · - · std seal · PT	$97.67
SEJ50X125-100S	125 mm	100 mm	Basic (no mounting) · S · std seal · PT	$101.39
SEJ50X130-100	130 mm	100 mm	Basic (no mounting) · - · std seal · PT	$101.86
SEJ50X150-10	150 mm	10 mm	Basic (no mounting) · - · std seal · PT	$101.86
SEJ50X150-10S	150 mm	10 mm	Basic (no mounting) · S · std seal · PT	$105.58
SEJ50X150-10SH	150 mm	10 mm	Basic (no mounting) · S · FKM · PT	$116.28
SEJ50X150-20	150 mm	20 mm	Basic (no mounting) · - · std seal · PT	$101.86
SEJ50X150-20S	150 mm	20 mm	Basic (no mounting) · S · std seal · PT	$105.58
SEJ50X150-30S	150 mm	30 mm	Basic (no mounting) · S · std seal · PT	$105.58
SEJ50X150-40S	150 mm	40 mm	Basic (no mounting) · S · std seal · PT	$105.58
SEJ50X150-50	150 mm	50 mm	Basic (no mounting) · - · std seal · PT	$101.86
SEJ50X150-50S	150 mm	50 mm	Basic (no mounting) · S · std seal · PT	$105.58
SEJ50X150-50SN	150 mm	50 mm	Basic (no mounting) · S · NBR · PT	$105.58
SEJ50X150-75	150 mm	75 mm	Basic (no mounting) · - · std seal · PT	$101.86
SEJ50X150-75S	150 mm	75 mm	Basic (no mounting) · S · std seal · PT	$105.58
SEJ50X150-100	150 mm	100 mm	Basic (no mounting) · - · std seal · PT	$101.86
SEJ50X150-100S	150 mm	100 mm	Basic (no mounting) · S · std seal · PT	$105.58
SEJ50X160-30S	160 mm	30 mm	Basic (no mounting) · S · std seal · PT	$109.77
SEJ50X160-75S	160 mm	75 mm	Basic (no mounting) · S · std seal · PT	$109.77
SEJ50X175-20S	175 mm	20 mm	Basic (no mounting) · S · std seal · PT	$109.77
SEJ50X175-30S	175 mm	30 mm	Basic (no mounting) · S · std seal · PT	$109.77
SEJ50X175-50S	175 mm	50 mm	Basic (no mounting) · S · std seal · PT	$109.77
SEJ50X175-100S	175 mm	100 mm	Basic (no mounting) · S · std seal · PT	$109.77
SEJ50X180-50	180 mm	50 mm	Basic (no mounting) · - · std seal · PT	$110.02
SEJ50X180-75	180 mm	75 mm	Basic (no mounting) · - · std seal · PT	$110.02
SEJ50X180-100S	180 mm	100 mm	Basic (no mounting) · S · std seal · PT	$113.75
SEJ50X185-20	185 mm	20 mm	Basic (no mounting) · - · std seal · PT	$110.02
SEJ50X195-30	195 mm	30 mm	Basic (no mounting) · - · std seal · PT	$110.02
SEJ50X200-10S	200 mm	10 mm	Basic (no mounting) · S · std seal · PT	$113.75
SEJ50X200-20S	200 mm	20 mm	Basic (no mounting) · S · std seal · PT	$113.75
SEJ50X200-30S	200 mm	30 mm	Basic (no mounting) · S · std seal · PT	$113.75
SEJ50X200-40S	200 mm	40 mm	Basic (no mounting) · S · std seal · PT	$113.75
SEJ50X200-50S	200 mm	50 mm	Basic (no mounting) · S · std seal · PT	$113.75
SEJ50X200-75S	200 mm	75 mm	Basic (no mounting) · S · std seal · PT	$113.75
SEJ50X200-100	200 mm	100 mm	Basic (no mounting) · - · std seal · PT	$110.02
SEJ50X200-100S	200 mm	100 mm	Basic (no mounting) · S · std seal · PT	$113.75
SEJ50X210-20S	210 mm	20 mm	Basic (no mounting) · S · std seal · PT	$117.93
SEJ50X220-20S	220 mm	20 mm	Basic (no mounting) · S · std seal · PT	$117.93
SEJ50X250-20S	250 mm	20 mm	Basic (no mounting) · S · std seal · PT	$122.33
SEJ50X250-30S	250 mm	30 mm	Basic (no mounting) · S · std seal · PT	$122.33
SEJ50X250-50	250 mm	50 mm	Basic (no mounting) · - · std seal · PT	$118.61
SEJ50X250-50S	250 mm	50 mm	Basic (no mounting) · S · std seal · PT	$122.33
SEJ50X250-100	250 mm	100 mm	Basic (no mounting) · - · std seal · PT	$118.61
SEJ50X250-100S	250 mm	100 mm	Basic (no mounting) · S · std seal · PT	$122.33
SEJ50X300-30S	300 mm	30 mm	Basic (no mounting) · S · std seal · PT	$130.50
SEJ50X300-40S	300 mm	40 mm	Basic (no mounting) · S · std seal · PT	$130.50
SEJ50X300-50S	300 mm	50 mm	Basic (no mounting) · S · std seal · PT	$130.50
SEJ50X300-75S	300 mm	75 mm	Basic (no mounting) · S · std seal · PT	$130.50
SEJ50X300-100	300 mm	100 mm	Basic (no mounting) · - · std seal · PT	$126.77
SEJ50X300-100S	300 mm	100 mm	Basic (no mounting) · S · std seal · PT	$130.50
SEJ50X350-20	350 mm	20 mm	Basic (no mounting) · - · std seal · PT	$134.89
SEJ50X350-20S	350 mm	20 mm	Basic (no mounting) · S · std seal · PT	$138.61
SEJ50X350-50S	350 mm	50 mm	Basic (no mounting) · S · std seal · PT	$138.61
SEJ50X350-75S	350 mm	75 mm	Basic (no mounting) · S · std seal · PT	$138.61
SEJ50X350-100	350 mm	100 mm	Basic (no mounting) · - · std seal · PT	$134.89
SEJ50X350-100S	350 mm	100 mm	Basic (no mounting) · S · std seal · PT	$138.61
SEJ50X600-50S	600 mm	50 mm	Basic (no mounting) · S · std seal · PT	$181.68
SEJ50X600-100S	600 mm	100 mm	Basic (no mounting) · S · std seal · PT	$181.68
SEJ50X700-40S	700 mm	40 mm	Basic (no mounting) · S · std seal · PT	$199.57
SEJ50X700-100S	700 mm	100 mm	Basic (no mounting) · S · std seal · PT	$199.57
SEJ50X1000-30S	1000 mm	30 mm	Basic (no mounting) · S · std seal · PT	$257.52
SEJ50X1000-100S	1000 mm	100 mm	Basic (no mounting) · S · std seal · PT	$257.52

Need a combination that is not listed? Request a quote.

Where the SEJ50 Is Used

General automation

About 982 N at 0.5 MPa covers most pushing, lifting and indexing tasks.

Clamping fixtures

Foot or flange mounting holds the cylinder rigid for clamps.

Doors, gates and levers

Clevis and trunnion versions drive mechanisms that swing.

Choosing the Right SEJ50 Configuration

Start with the stroke. Pick the exact travel your machine needs; a longer stroke adds length, weight and air consumption without adding force. If your length is not listed, request a quote and we will confirm whether it can be built.

Then the stroke adjustment (10-100 mm): pick the amount by which you need to trim the stroke on the machine. The cylinder can be set anywhere between full stroke and full stroke minus that amount.

Then choose the mounting. Basic (no code) uses the cylinder's own mounting holes. This bore is stocked with FA front flange, FTC front trunnion. Foot and flange mountings hold the cylinder rigid for straight-line loads; clevis and trunnion mountings let it pivot when the load moves in an arc.

Finally pick the version: S adds a magnet for position sensors; the standard seal suits general automation; H (FKM) is for higher temperatures or oil-contaminated air; N specifies NBR.

AirTAC SEJ50 FAQ

Does the stroke change the force of an SEJ50?

No. Every SEJ50 gives about 982 N push and 825 N pull at 0.5 MPa, whatever the stroke.

How does the SEJ50 stroke adjustment work?

The number after the dash is the adjustable range in mm. An SEJ50X100-50, for example, can be set to any stroke between 50 and 100 mm with the rear adjusting screw.

What port size does the SEJ50 use?

1/4" ports, PT thread as standard.

Which mountings are available for the SEJ50?

Basic plus FA front flange, FTC front trunnion. Use foot or flange for straight-line loads, clevis or trunnion when the cylinder must pivot.

My stroke is not listed. Can I still order it?

Usually yes. Request a quote with the stroke, mounting and version and we will confirm whether it can be built, plus price and lead time.

What pressure and temperature does it handle?

0.15 to 1.0 MPa operating pressure (proof 1.5 MPa) and -20 to +70 °C on filtered air.

Is there a minimum order?

No. You can order a single SEJ50. Orders are processed and handed to the carrier within 3-5 business days.

Buying the SEJ50 from AirtacDistr

Genuine AirTAC parts

Every order code on this page is the AirTAC factory part number. Specifications follow the AirTAC Products Catalog 2026A. About us

Ready in 3-5 business days

That is our time to process the order and hand it to the carrier. No minimum order: a single piece can be ordered.

14-day returns, 1-year warranty

Return within 14 days of delivery; the buyer pays return shipping. The warranty covers defects not caused by misuse. Return policy

Engineering help

Send your application details and we will confirm the right order code, usually within 7-8 hours. Ask us

Page data checked against the live catalog on 2026-09-28.

Request a Quote for the SEJ50

Send the order code, quantity and destination. We confirm price, stock and lead time, usually within 7-8 hours.

Thank you. We received your request for SEJ50X75-50 and will confirm price, stock and lead time — usually within 7-8 hours.
