AirTAC G Series · Filter Regulator

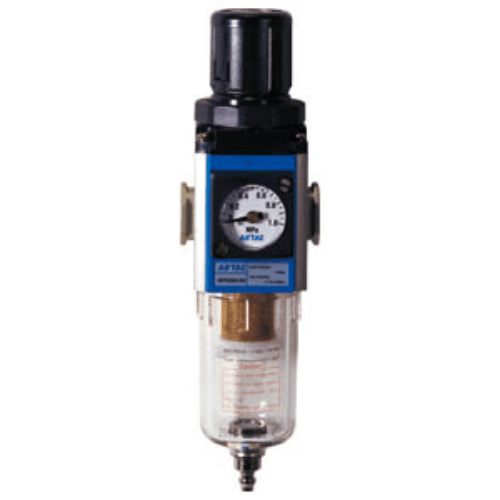

AirTAC GFR300-10 Filter Regulator, 3/8" Port
Every stocked AirTAC GFR300-10 configuration on one page: 573 order codes with 3/8" ports, from $34.19. Pick the drain and type, pressure gauge and configuration to see the exact order code and price.
This combination is not a stock order code. Request a quote and we will confirm availability and price.
$41.37
$46.08Save 10%
Request a Quote
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the AirTAC GFR300-10
The AirTAC GFR300-10 is a G-series filter regulator: one unit that filters and sets the pressure. It has 3/8" ports (PT thread as standard, G and NPT also stocked). It regulates from 0.15 to 0.9 MPa (20-130 psi) with automatic or differential-pressure drain, and from 0.05 to 0.9 MPa (7-130 psi) with manual drain. The low-pressure (L) version regulates up to 0.4 MPa (58 psi).
A swirl guide spins the incoming air so water and particles are separated, then a 40 µm or 5 µm element filters it. The gauge is a built-in square type (a round external gauge can be chosen), the knob locks by pressing it in, and manual, differential-pressure and automatic drains are available. Maximum operating pressure is 1.0 MPa (145 psi), proof pressure 1.5 MPa (215 psi), operating temperature -5 to +70 °C (no freezing).
GFR300-10 Technical Specifications
| Model | GFR300-10 |
|---|---|
| Port | 3/8" (10) |
| Thread | PT (standard), G, NPT (T) |
| Filter element | 40 µm (standard), 5 µm (W) |
| Drain bowl capacity | 40 cc |
| Weight | 500 g |
| Fluid | Compressed air |
|---|---|
| Regulating range | 0.15 – 0.9 MPa (auto / differential drain); 0.05 – 0.9 MPa (manual drain) |
| Low-pressure (L) version | Up to 0.4 MPa (58 psi) |
| Maximum pressure | 1.0 MPa (145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Temperature | -5 to +70 °C (no freezing) |
Source: AirTAC Products Catalog 2026A (PDF01-P0209), GFR series specifications and ordering code.
How the GFR300-10 Order Code Is Built
| GFR300 | Series and body size |
|---|---|
| 10 | Port 3/8" |
| A / M | Drain: A = automatic, M = manual, blank = differential-pressure |
| L | Low-pressure type, up to 0.4 MPa (blank = standard) |
| J | Without bracket (blank = bracket included) |
| N | No gauge (blank = gauge fitted, then style and scale) |
| F / C | Square / round gauge |
| 1 / 2 / 3 | Gauge scale MPa / psi / bar |
| W | 5 µm element (blank = 40 µm) |
| G / T | Thread: G = G, T = NPT, blank = PT |
| K | With check valve (blank = without) |
All AirTAC GFR300-10 Order Codes (573)
Each order code links to its own datasheet page. Use Select to load it into the configurator above.
| Order code | Drain · type | Pressure gauge | Configuration | Price | Select |
|---|---|---|---|---|---|
| GFR30010F1 | Differential-pressure drain · Standard | Square gauge, MPa (F1) | With bracket · 40 µm · PT thread | $41.37 | |
| GFR30010F1K | Differential-pressure drain · Standard | Square gauge, MPa (F1) | With bracket · 40 µm · PT thread · Check valve (K) | $52.72 | |
| GFR30010F1T | Differential-pressure drain · Standard | Square gauge, MPa (F1) | With bracket · 40 µm · NPT thread | $41.16 | |
| GFR30010F1TK | Differential-pressure drain · Standard | Square gauge, MPa (F1) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.55 | |
| GFR30010F1W | Differential-pressure drain · Standard | Square gauge, MPa (F1) | With bracket · 5 µm (W) · PT thread | $41.37 | |
| GFR30010F1WK | Differential-pressure drain · Standard | Square gauge, MPa (F1) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $52.72 | |
| GFR30010F1WT | Differential-pressure drain · Standard | Square gauge, MPa (F1) | With bracket · 5 µm (W) · NPT thread | $41.17 | |
| GFR30010F1WTK | Differential-pressure drain · Standard | Square gauge, MPa (F1) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.56 | |
| GFR30010JF1 | Differential-pressure drain · Standard | Square gauge, MPa (F1) | No bracket (J) · 40 µm · PT thread | $40.26 | |
| GFR30010JF1K | Differential-pressure drain · Standard | Square gauge, MPa (F1) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $51.61 | |
| GFR30010JF1T | Differential-pressure drain · Standard | Square gauge, MPa (F1) | No bracket (J) · 40 µm · NPT thread | $39.94 | |
| GFR30010JF1TK | Differential-pressure drain · Standard | Square gauge, MPa (F1) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.33 | |
| GFR30010JF1W | Differential-pressure drain · Standard | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · PT thread | $40.26 | |
| GFR30010JF1WK | Differential-pressure drain · Standard | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $51.61 | |
| GFR30010JF1WT | Differential-pressure drain · Standard | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · NPT thread | $39.95 | |
| GFR30010JF1WTK | Differential-pressure drain · Standard | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.34 | |
| GFR30010F2 | Differential-pressure drain · Standard | Square gauge, psi (F2) | With bracket · 40 µm · PT thread | $40.82 | |
| GFR30010F2K | Differential-pressure drain · Standard | Square gauge, psi (F2) | With bracket · 40 µm · PT thread · Check valve (K) | $52.21 | |
| GFR30010F2G | Differential-pressure drain · Standard | Square gauge, psi (F2) | With bracket · 40 µm · G thread | $41.00 | |
| GFR30010F2GK | Differential-pressure drain · Standard | Square gauge, psi (F2) | With bracket · 40 µm · G thread · Check valve (K) | $52.39 | |
| GFR30010F2T | Differential-pressure drain · Standard | Square gauge, psi (F2) | With bracket · 40 µm · NPT thread | $41.16 | |
| GFR30010F2TK | Differential-pressure drain · Standard | Square gauge, psi (F2) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.55 | |
| GFR30010F2W | Differential-pressure drain · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · PT thread | $40.83 | |
| GFR30010F2WK | Differential-pressure drain · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $52.22 | |
| GFR30010F2WG | Differential-pressure drain · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · G thread | $41.01 | |
| GFR30010F2WGK | Differential-pressure drain · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · G thread · Check valve (K) | $52.39 | |
| GFR30010F2WT | Differential-pressure drain · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · NPT thread | $41.18 | |
| GFR30010F2WTK | Differential-pressure drain · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.56 | |
| GFR30010JF2 | Differential-pressure drain · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · PT thread | $39.60 | |
| GFR30010JF2K | Differential-pressure drain · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $50.99 | |
| GFR30010JF2G | Differential-pressure drain · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · G thread | $39.78 | |
| GFR30010JF2GK | Differential-pressure drain · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · G thread · Check valve (K) | $51.16 | |
| GFR30010JF2T | Differential-pressure drain · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · NPT thread | $39.94 | |
| GFR30010JF2TK | Differential-pressure drain · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.33 | |
| GFR30010JF2W | Differential-pressure drain · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · PT thread | $39.60 | |
| GFR30010JF2WK | Differential-pressure drain · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $51.00 | |
| GFR30010JF2WG | Differential-pressure drain · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · G thread | $39.79 | |
| GFR30010JF2WGK | Differential-pressure drain · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · G thread · Check valve (K) | $51.17 | |
| GFR30010JF2WT | Differential-pressure drain · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · NPT thread | $39.95 | |
| GFR30010JF2WTK | Differential-pressure drain · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.34 | |
| GFR30010F3 | Differential-pressure drain · Standard | Square gauge, bar (F3) | With bracket · 40 µm · PT thread | $41.37 | |
| GFR30010F3T | Differential-pressure drain · Standard | Square gauge, bar (F3) | With bracket · 40 µm · NPT thread | $41.43 | |
| GFR30010F3TK | Differential-pressure drain · Standard | Square gauge, bar (F3) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.83 | |
| GFR30010F3WT | Differential-pressure drain · Standard | Square gauge, bar (F3) | With bracket · 5 µm (W) · NPT thread | $41.45 | |
| GFR30010F3WTK | Differential-pressure drain · Standard | Square gauge, bar (F3) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.83 | |
| GFR30010JF3T | Differential-pressure drain · Standard | Square gauge, bar (F3) | No bracket (J) · 40 µm · NPT thread | $40.22 | |
| GFR30010JF3TK | Differential-pressure drain · Standard | Square gauge, bar (F3) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.60 | |
| GFR30010JF3WT | Differential-pressure drain · Standard | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · NPT thread | $40.22 | |
| GFR30010JF3WTK | Differential-pressure drain · Standard | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.61 | |
| GFR30010C1 | Differential-pressure drain · Standard | Round gauge, MPa (C1) | With bracket · 40 µm · PT thread | $41.37 | |
| GFR30010C1K | Differential-pressure drain · Standard | Round gauge, MPa (C1) | With bracket · 40 µm · PT thread · Check valve (K) | $52.72 | |
| GFR30010C1T | Differential-pressure drain · Standard | Round gauge, MPa (C1) | With bracket · 40 µm · NPT thread | $41.37 | |
| GFR30010C1TK | Differential-pressure drain · Standard | Round gauge, MPa (C1) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.57 | |
| GFR30010C1W | Differential-pressure drain · Standard | Round gauge, MPa (C1) | With bracket · 5 µm (W) · PT thread | $41.37 | |
| GFR30010C1WK | Differential-pressure drain · Standard | Round gauge, MPa (C1) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $52.72 | |
| GFR30010C1WT | Differential-pressure drain · Standard | Round gauge, MPa (C1) | With bracket · 5 µm (W) · NPT thread | $41.19 | |
| GFR30010C1WTK | Differential-pressure drain · Standard | Round gauge, MPa (C1) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.59 | |
| GFR30010JC1 | Differential-pressure drain · Standard | Round gauge, MPa (C1) | No bracket (J) · 40 µm · PT thread | $40.26 | |
| GFR30010JC1K | Differential-pressure drain · Standard | Round gauge, MPa (C1) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $51.61 | |
| GFR30010JC1T | Differential-pressure drain · Standard | Round gauge, MPa (C1) | No bracket (J) · 40 µm · NPT thread | $39.96 | |
| GFR30010JC1TK | Differential-pressure drain · Standard | Round gauge, MPa (C1) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.35 | |
| GFR30010JC1W | Differential-pressure drain · Standard | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · PT thread | $40.26 | |
| GFR30010JC1WK | Differential-pressure drain · Standard | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $51.61 | |
| GFR30010JC1WT | Differential-pressure drain · Standard | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · NPT thread | $39.97 | |
| GFR30010JC1WTK | Differential-pressure drain · Standard | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.36 | |
| GFR30010C2 | Differential-pressure drain · Standard | Round gauge, psi (C2) | With bracket · 40 µm · PT thread | $40.84 | |
| GFR30010C2K | Differential-pressure drain · Standard | Round gauge, psi (C2) | With bracket · 40 µm · PT thread · Check valve (K) | $52.23 | |
| GFR30010C2G | Differential-pressure drain · Standard | Round gauge, psi (C2) | With bracket · 40 µm · G thread | $41.02 | |
| GFR30010C2GK | Differential-pressure drain · Standard | Round gauge, psi (C2) | With bracket · 40 µm · G thread · Check valve (K) | $52.41 | |
| GFR30010C2T | Differential-pressure drain · Standard | Round gauge, psi (C2) | With bracket · 40 µm · NPT thread | $41.19 | |
| GFR30010C2TK | Differential-pressure drain · Standard | Round gauge, psi (C2) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.57 | |
| GFR30010C2W | Differential-pressure drain · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · PT thread | $40.85 | |
| GFR30010C2WK | Differential-pressure drain · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $52.24 | |
| GFR30010C2WG | Differential-pressure drain · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · G thread | $41.03 | |
| GFR30010C2WGK | Differential-pressure drain · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · G thread · Check valve (K) | $52.42 | |
| GFR30010C2WT | Differential-pressure drain · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · NPT thread | $41.20 | |
| GFR30010C2WTK | Differential-pressure drain · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.59 | |
| GFR30010JC2 | Differential-pressure drain · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · PT thread | $39.62 | |
| GFR30010JC2K | Differential-pressure drain · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $51.01 | |
| GFR30010JC2G | Differential-pressure drain · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · G thread | $39.80 | |
| GFR30010JC2GK | Differential-pressure drain · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · G thread · Check valve (K) | $51.19 | |
| GFR30010JC2T | Differential-pressure drain · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · NPT thread | $39.97 | |
| GFR30010JC2TK | Differential-pressure drain · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.35 | |
| GFR30010JC2W | Differential-pressure drain · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · PT thread | $39.63 | |
| GFR30010JC2WK | Differential-pressure drain · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $51.02 | |
| GFR30010JC2WG | Differential-pressure drain · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · G thread | $39.81 | |
| GFR30010JC2WGK | Differential-pressure drain · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · G thread · Check valve (K) | $51.20 | |
| GFR30010JC2WT | Differential-pressure drain · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · NPT thread | $39.98 | |
| GFR30010JC2WTK | Differential-pressure drain · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.36 | |
| GFR30010C3 | Differential-pressure drain · Standard | Round gauge, bar (C3) | With bracket · 40 µm · PT thread | $41.37 | |
| GFR30010C3T | Differential-pressure drain · Standard | Round gauge, bar (C3) | With bracket · 40 µm · NPT thread | $41.46 | |
| GFR30010C3TK | Differential-pressure drain · Standard | Round gauge, bar (C3) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.85 | |
| GFR30010C3WT | Differential-pressure drain · Standard | Round gauge, bar (C3) | With bracket · 5 µm (W) · NPT thread | $41.47 | |
| GFR30010C3WTK | Differential-pressure drain · Standard | Round gauge, bar (C3) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.86 | |
| GFR30010JC3T | Differential-pressure drain · Standard | Round gauge, bar (C3) | No bracket (J) · 40 µm · NPT thread | $40.24 | |
| GFR30010JC3TK | Differential-pressure drain · Standard | Round gauge, bar (C3) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.63 | |
| GFR30010JC3WT | Differential-pressure drain · Standard | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · NPT thread | $40.25 | |
| GFR30010JC3WTK | Differential-pressure drain · Standard | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.64 | |
| GFR30010N | Differential-pressure drain · Standard | No gauge (N) | With bracket · 40 µm · PT thread | $49.44 | |
| GFR30010NT | Differential-pressure drain · Standard | No gauge (N) | With bracket · 40 µm · NPT thread | $35.51 | |
| GFR30010NTK | Differential-pressure drain · Standard | No gauge (N) | With bracket · 40 µm · NPT thread · Check valve (K) | $46.90 | |
| GFR30010NWT | Differential-pressure drain · Standard | No gauge (N) | With bracket · 5 µm (W) · NPT thread | $35.52 | |
| GFR30010NWTK | Differential-pressure drain · Standard | No gauge (N) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $46.92 | |
| GFR30010JNT | Differential-pressure drain · Standard | No gauge (N) | No bracket (J) · 40 µm · NPT thread | $34.29 | |
| GFR30010JNTK | Differential-pressure drain · Standard | No gauge (N) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $45.68 | |
| GFR30010JNWT | Differential-pressure drain · Standard | No gauge (N) | No bracket (J) · 5 µm (W) · NPT thread | $34.31 | |
| GFR30010JNWTK | Differential-pressure drain · Standard | No gauge (N) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $45.69 | |
| GFR30010LF1T | Differential-pressure drain · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 40 µm · NPT thread | $41.11 | |
| GFR30010LF1TK | Differential-pressure drain · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.49 | |
| GFR30010LF1WT | Differential-pressure drain · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 5 µm (W) · NPT thread | $41.12 | |
| GFR30010LF1WTK | Differential-pressure drain · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.51 | |
| GFR30010LJF1T | Differential-pressure drain · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 40 µm · NPT thread | $39.89 | |
| GFR30010LJF1TK | Differential-pressure drain · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.27 | |
| GFR30010LJF1WT | Differential-pressure drain · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · NPT thread | $39.90 | |
| GFR30010LJF1WTK | Differential-pressure drain · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.28 | |
| GFR30010LF2 | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · PT thread | $40.76 | |
| GFR30010LF2K | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · PT thread · Check valve (K) | $52.16 | |
| GFR30010LF2G | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · G thread | $40.94 | |
| GFR30010LF2GK | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · G thread · Check valve (K) | $52.33 | |
| GFR30010LF2T | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · NPT thread | $41.11 | |
| GFR30010LF2TK | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.50 | |
| GFR30010LF2W | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · PT thread | $40.77 | |
| GFR30010LF2WK | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $52.17 | |
| GFR30010LF2WG | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · G thread | $40.95 | |
| GFR30010LF2WGK | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · G thread · Check valve (K) | $52.34 | |
| GFR30010LF2WT | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · NPT thread | $41.12 | |
| GFR30010LF2WTK | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.51 | |
| GFR30010LJF2 | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · PT thread | $39.55 | |
| GFR30010LJF2K | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $50.93 | |
| GFR30010LJF2G | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · G thread | $39.72 | |
| GFR30010LJF2GK | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · G thread · Check valve (K) | $51.11 | |
| GFR30010LJF2T | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · NPT thread | $39.89 | |
| GFR30010LJF2TK | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.28 | |
| GFR30010LJF2W | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · PT thread | $39.56 | |
| GFR30010LJF2WK | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $50.94 | |
| GFR30010LJF2WG | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · G thread | $39.73 | |
| GFR30010LJF2WGK | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · G thread · Check valve (K) | $51.12 | |
| GFR30010LJF2WT | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · NPT thread | $39.90 | |
| GFR30010LJF2WTK | Differential-pressure drain · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.29 | |
| GFR30010LF3T | Differential-pressure drain · Low-pressure (L) | Square gauge, bar (F3) | With bracket · 40 µm · NPT thread | $41.39 | |
| GFR30010LF3TK | Differential-pressure drain · Low-pressure (L) | Square gauge, bar (F3) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.77 | |
| GFR30010LF3WT | Differential-pressure drain · Low-pressure (L) | Square gauge, bar (F3) | With bracket · 5 µm (W) · NPT thread | $41.39 | |
| GFR30010LF3WTK | Differential-pressure drain · Low-pressure (L) | Square gauge, bar (F3) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.78 | |
| GFR30010LJF3T | Differential-pressure drain · Low-pressure (L) | Square gauge, bar (F3) | No bracket (J) · 40 µm · NPT thread | $40.16 | |
| GFR30010LJF3TK | Differential-pressure drain · Low-pressure (L) | Square gauge, bar (F3) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.55 | |
| GFR30010LJF3WT | Differential-pressure drain · Low-pressure (L) | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · NPT thread | $40.17 | |
| GFR30010LJF3WTK | Differential-pressure drain · Low-pressure (L) | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.56 | |
| GFR30010LC1T | Differential-pressure drain · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 40 µm · NPT thread | $41.14 | |
| GFR30010LC1TK | Differential-pressure drain · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.52 | |
| GFR30010LC1WT | Differential-pressure drain · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 5 µm (W) · NPT thread | $41.14 | |
| GFR30010LC1WTK | Differential-pressure drain · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.53 | |
| GFR30010LJC1T | Differential-pressure drain · Low-pressure (L) | Round gauge, MPa (C1) | No bracket (J) · 40 µm · NPT thread | $39.91 | |
| GFR30010LJC1TK | Differential-pressure drain · Low-pressure (L) | Round gauge, MPa (C1) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.30 | |
| GFR30010LJC1WT | Differential-pressure drain · Low-pressure (L) | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · NPT thread | $39.92 | |
| GFR30010LJC1WTK | Differential-pressure drain · Low-pressure (L) | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.31 | |
| GFR30010LC2 | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · PT thread | $40.79 | |
| GFR30010LC2K | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · PT thread · Check valve (K) | $52.18 | |
| GFR30010LC2G | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · G thread | $40.97 | |
| GFR30010LC2GK | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · G thread · Check valve (K) | $52.36 | |
| GFR30010LC2T | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · NPT thread | $41.14 | |
| GFR30010LC2TK | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.52 | |
| GFR30010LC2W | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · PT thread | $40.80 | |
| GFR30010LC2WK | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $52.18 | |
| GFR30010LC2WG | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · G thread | $40.98 | |
| GFR30010LC2WGK | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · G thread · Check valve (K) | $52.37 | |
| GFR30010LC2WT | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · NPT thread | $41.14 | |
| GFR30010LC2WTK | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.53 | |
| GFR30010LJC2 | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · PT thread | $39.57 | |
| GFR30010LJC2K | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $50.96 | |
| GFR30010LJC2G | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · G thread | $39.75 | |
| GFR30010LJC2GK | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · G thread · Check valve (K) | $51.14 | |
| GFR30010LJC2T | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · NPT thread | $39.91 | |
| GFR30010LJC2TK | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.31 | |
| GFR30010LJC2W | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · PT thread | $39.58 | |
| GFR30010LJC2WK | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $50.97 | |
| GFR30010LJC2WG | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · G thread | $39.76 | |
| GFR30010LJC2WGK | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · G thread · Check valve (K) | $51.15 | |
| GFR30010LJC2WT | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · NPT thread | $39.92 | |
| GFR30010LJC2WTK | Differential-pressure drain · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.31 | |
| GFR30010LC3T | Differential-pressure drain · Low-pressure (L) | Round gauge, bar (C3) | With bracket · 40 µm · NPT thread | $41.41 | |
| GFR30010LC3TK | Differential-pressure drain · Low-pressure (L) | Round gauge, bar (C3) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.80 | |
| GFR30010LC3WT | Differential-pressure drain · Low-pressure (L) | Round gauge, bar (C3) | With bracket · 5 µm (W) · NPT thread | $41.42 | |
| GFR30010LC3WTK | Differential-pressure drain · Low-pressure (L) | Round gauge, bar (C3) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.81 | |
| GFR30010LJC3T | Differential-pressure drain · Low-pressure (L) | Round gauge, bar (C3) | No bracket (J) · 40 µm · NPT thread | $40.18 | |
| GFR30010LJC3TK | Differential-pressure drain · Low-pressure (L) | Round gauge, bar (C3) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.58 | |
| GFR30010LJC3WT | Differential-pressure drain · Low-pressure (L) | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · NPT thread | $40.19 | |
| GFR30010LJC3WTK | Differential-pressure drain · Low-pressure (L) | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.59 | |
| GFR30010LNT | Differential-pressure drain · Low-pressure (L) | No gauge (N) | With bracket · 40 µm · NPT thread | $35.46 | |
| GFR30010LNTK | Differential-pressure drain · Low-pressure (L) | No gauge (N) | With bracket · 40 µm · NPT thread · Check valve (K) | $46.85 | |
| GFR30010LNWT | Differential-pressure drain · Low-pressure (L) | No gauge (N) | With bracket · 5 µm (W) · NPT thread | $35.47 | |
| GFR30010LNWTK | Differential-pressure drain · Low-pressure (L) | No gauge (N) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $46.86 | |
| GFR30010LJNT | Differential-pressure drain · Low-pressure (L) | No gauge (N) | No bracket (J) · 40 µm · NPT thread | $34.24 | |
| GFR30010LJNTK | Differential-pressure drain · Low-pressure (L) | No gauge (N) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $45.63 | |
| GFR30010LJNWT | Differential-pressure drain · Low-pressure (L) | No gauge (N) | No bracket (J) · 5 µm (W) · NPT thread | $34.25 | |
| GFR30010LJNWTK | Differential-pressure drain · Low-pressure (L) | No gauge (N) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $45.64 | |
| GFR30010MF1T | Manual drain (M) · Standard | Square gauge, MPa (F1) | With bracket · 40 µm · NPT thread | $41.10 | |
| GFR30010MF1TK | Manual drain (M) · Standard | Square gauge, MPa (F1) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.49 | |
| GFR30010MF1WT | Manual drain (M) · Standard | Square gauge, MPa (F1) | With bracket · 5 µm (W) · NPT thread | $41.11 | |
| GFR30010MF1WTK | Manual drain (M) · Standard | Square gauge, MPa (F1) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.51 | |
| GFR30010MJF1T | Manual drain (M) · Standard | Square gauge, MPa (F1) | No bracket (J) · 40 µm · NPT thread | $39.88 | |
| GFR30010MJF1TK | Manual drain (M) · Standard | Square gauge, MPa (F1) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.27 | |
| GFR30010MJF1WT | Manual drain (M) · Standard | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · NPT thread | $39.89 | |
| GFR30010MJF1WTK | Manual drain (M) · Standard | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.28 | |
| GFR30010MF2 | Manual drain (M) · Standard | Square gauge, psi (F2) | With bracket · 40 µm · PT thread | $40.76 | |
| GFR30010MF2K | Manual drain (M) · Standard | Square gauge, psi (F2) | With bracket · 40 µm · PT thread · Check valve (K) | $52.15 | |
| GFR30010MF2G | Manual drain (M) · Standard | Square gauge, psi (F2) | With bracket · 40 µm · G thread | $40.94 | |
| GFR30010MF2GK | Manual drain (M) · Standard | Square gauge, psi (F2) | With bracket · 40 µm · G thread · Check valve (K) | $52.33 | |
| GFR30010MF2T | Manual drain (M) · Standard | Square gauge, psi (F2) | With bracket · 40 µm · NPT thread | $41.11 | |
| GFR30010MF2TK | Manual drain (M) · Standard | Square gauge, psi (F2) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.50 | |
| GFR30010MF2W | Manual drain (M) · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · PT thread | $40.77 | |
| GFR30010MF2WK | Manual drain (M) · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $52.16 | |
| GFR30010MF2WG | Manual drain (M) · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · G thread | $40.95 | |
| GFR30010MF2WGK | Manual drain (M) · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · G thread · Check valve (K) | $52.34 | |
| GFR30010MF2WT | Manual drain (M) · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · NPT thread | $41.12 | |
| GFR30010MF2WTK | Manual drain (M) · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.51 | |
| GFR30010MJF2 | Manual drain (M) · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · PT thread | $39.55 | |
| GFR30010MJF2K | Manual drain (M) · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $50.93 | |
| GFR30010MJF2G | Manual drain (M) · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · G thread | $39.72 | |
| GFR30010MJF2GK | Manual drain (M) · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · G thread · Check valve (K) | $51.11 | |
| GFR30010MJF2T | Manual drain (M) · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · NPT thread | $39.89 | |
| GFR30010MJF2TK | Manual drain (M) · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.28 | |
| GFR30010MJF2W | Manual drain (M) · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · PT thread | $39.56 | |
| GFR30010MJF2WK | Manual drain (M) · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $50.94 | |
| GFR30010MJF2WG | Manual drain (M) · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · G thread | $39.73 | |
| GFR30010MJF2WGK | Manual drain (M) · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · G thread · Check valve (K) | $51.12 | |
| GFR30010MJF2WT | Manual drain (M) · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · NPT thread | $39.90 | |
| GFR30010MJF2WTK | Manual drain (M) · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.29 | |
| GFR30010MF3T | Manual drain (M) · Standard | Square gauge, bar (F3) | With bracket · 40 µm · NPT thread | $41.38 | |
| GFR30010MF3TK | Manual drain (M) · Standard | Square gauge, bar (F3) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.77 | |
| GFR30010MF3WT | Manual drain (M) · Standard | Square gauge, bar (F3) | With bracket · 5 µm (W) · NPT thread | $41.39 | |
| GFR30010MF3WTK | Manual drain (M) · Standard | Square gauge, bar (F3) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.78 | |
| GFR30010MJF3T | Manual drain (M) · Standard | Square gauge, bar (F3) | No bracket (J) · 40 µm · NPT thread | $40.16 | |
| GFR30010MJF3TK | Manual drain (M) · Standard | Square gauge, bar (F3) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.55 | |
| GFR30010MJF3WT | Manual drain (M) · Standard | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · NPT thread | $40.17 | |
| GFR30010MJF3WTK | Manual drain (M) · Standard | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.56 | |
| GFR30010MC1T | Manual drain (M) · Standard | Round gauge, MPa (C1) | With bracket · 40 µm · NPT thread | $41.13 | |
| GFR30010MC1TK | Manual drain (M) · Standard | Round gauge, MPa (C1) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.52 | |
| GFR30010MC1WT | Manual drain (M) · Standard | Round gauge, MPa (C1) | With bracket · 5 µm (W) · NPT thread | $41.14 | |
| GFR30010MC1WTK | Manual drain (M) · Standard | Round gauge, MPa (C1) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.53 | |
| GFR30010MJC1T | Manual drain (M) · Standard | Round gauge, MPa (C1) | No bracket (J) · 40 µm · NPT thread | $39.91 | |
| GFR30010MJC1TK | Manual drain (M) · Standard | Round gauge, MPa (C1) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.30 | |
| GFR30010MJC1WT | Manual drain (M) · Standard | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · NPT thread | $39.92 | |
| GFR30010MJC1WTK | Manual drain (M) · Standard | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.31 | |
| GFR30010MC2 | Manual drain (M) · Standard | Round gauge, psi (C2) | With bracket · 40 µm · PT thread | $40.79 | |
| GFR30010MC2K | Manual drain (M) · Standard | Round gauge, psi (C2) | With bracket · 40 µm · PT thread · Check valve (K) | $52.18 | |
| GFR30010MC2G | Manual drain (M) · Standard | Round gauge, psi (C2) | With bracket · 40 µm · G thread | $40.97 | |
| GFR30010MC2GK | Manual drain (M) · Standard | Round gauge, psi (C2) | With bracket · 40 µm · G thread · Check valve (K) | $52.35 | |
| GFR30010MC2T | Manual drain (M) · Standard | Round gauge, psi (C2) | With bracket · 40 µm · NPT thread | $41.14 | |
| GFR30010MC2TK | Manual drain (M) · Standard | Round gauge, psi (C2) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.52 | |
| GFR30010MC2W | Manual drain (M) · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · PT thread | $40.80 | |
| GFR30010MC2WK | Manual drain (M) · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $52.18 | |
| GFR30010MC2WG | Manual drain (M) · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · G thread | $40.98 | |
| GFR30010MC2WGK | Manual drain (M) · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · G thread · Check valve (K) | $52.36 | |
| GFR30010MC2WT | Manual drain (M) · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · NPT thread | $41.14 | |
| GFR30010MC2WTK | Manual drain (M) · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.53 | |
| GFR30010MJC2 | Manual drain (M) · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · PT thread | $39.57 | |
| GFR30010MJC2K | Manual drain (M) · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $50.96 | |
| GFR30010MJC2G | Manual drain (M) · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · G thread | $39.75 | |
| GFR30010MJC2GK | Manual drain (M) · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · G thread · Check valve (K) | $51.13 | |
| GFR30010MJC2T | Manual drain (M) · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · NPT thread | $39.91 | |
| GFR30010MJC2TK | Manual drain (M) · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.31 | |
| GFR30010MJC2W | Manual drain (M) · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · PT thread | $39.58 | |
| GFR30010MJC2WK | Manual drain (M) · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $50.97 | |
| GFR30010MJC2WG | Manual drain (M) · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · G thread | $39.76 | |
| GFR30010MJC2WGK | Manual drain (M) · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · G thread · Check valve (K) | $51.14 | |
| GFR30010MJC2WT | Manual drain (M) · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · NPT thread | $39.92 | |
| GFR30010MJC2WTK | Manual drain (M) · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.31 | |
| GFR30010MC3T | Manual drain (M) · Standard | Round gauge, bar (C3) | With bracket · 40 µm · NPT thread | $41.41 | |
| GFR30010MC3TK | Manual drain (M) · Standard | Round gauge, bar (C3) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.80 | |
| GFR30010MC3WT | Manual drain (M) · Standard | Round gauge, bar (C3) | With bracket · 5 µm (W) · NPT thread | $41.42 | |
| GFR30010MC3WTK | Manual drain (M) · Standard | Round gauge, bar (C3) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.81 | |
| GFR30010MJC3T | Manual drain (M) · Standard | Round gauge, bar (C3) | No bracket (J) · 40 µm · NPT thread | $40.18 | |
| GFR30010MJC3TK | Manual drain (M) · Standard | Round gauge, bar (C3) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.58 | |
| GFR30010MJC3WT | Manual drain (M) · Standard | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · NPT thread | $40.19 | |
| GFR30010MJC3WTK | Manual drain (M) · Standard | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.59 | |
| GFR30010MNT | Manual drain (M) · Standard | No gauge (N) | With bracket · 40 µm · NPT thread | $35.46 | |
| GFR30010MNTK | Manual drain (M) · Standard | No gauge (N) | With bracket · 40 µm · NPT thread · Check valve (K) | $46.85 | |
| GFR30010MNWT | Manual drain (M) · Standard | No gauge (N) | With bracket · 5 µm (W) · NPT thread | $35.47 | |
| GFR30010MNWTK | Manual drain (M) · Standard | No gauge (N) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $46.86 | |
| GFR30010MJNT | Manual drain (M) · Standard | No gauge (N) | No bracket (J) · 40 µm · NPT thread | $34.24 | |
| GFR30010MJNTK | Manual drain (M) · Standard | No gauge (N) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $45.63 | |
| GFR30010MJNWT | Manual drain (M) · Standard | No gauge (N) | No bracket (J) · 5 µm (W) · NPT thread | $34.25 | |
| GFR30010MJNWTK | Manual drain (M) · Standard | No gauge (N) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $45.64 | |
| GFR30010MLF1T | Manual drain (M) · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 40 µm · NPT thread | $41.06 | |
| GFR30010MLF1TK | Manual drain (M) · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.44 | |
| GFR30010MLF1WT | Manual drain (M) · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 5 µm (W) · NPT thread | $41.06 | |
| GFR30010MLF1WTK | Manual drain (M) · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.45 | |
| GFR30010MLJF1T | Manual drain (M) · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 40 µm · NPT thread | $39.83 | |
| GFR30010MLJF1TK | Manual drain (M) · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.22 | |
| GFR30010MLJF1WT | Manual drain (M) · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · NPT thread | $39.84 | |
| GFR30010MLJF1WTK | Manual drain (M) · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.23 | |
| GFR30010MLF2 | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · PT thread | $40.71 | |
| GFR30010MLF2K | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · PT thread · Check valve (K) | $52.10 | |
| GFR30010MLF2G | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · G thread | $40.89 | |
| GFR30010MLF2GK | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · G thread · Check valve (K) | $52.28 | |
| GFR30010MLF2T | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · NPT thread | $41.06 | |
| GFR30010MLF2TK | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.44 | |
| GFR30010MLF2W | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · PT thread | $40.72 | |
| GFR30010MLF2WK | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $52.11 | |
| GFR30010MLF2WG | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · G thread | $40.90 | |
| GFR30010MLF2WGK | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · G thread · Check valve (K) | $52.29 | |
| GFR30010MLF2WT | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · NPT thread | $41.07 | |
| GFR30010MLF2WTK | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.45 | |
| GFR30010MLJF2 | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · PT thread | $39.49 | |
| GFR30010MLJF2K | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $50.88 | |
| GFR30010MLJF2G | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · G thread | $39.67 | |
| GFR30010MLJF2GK | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · G thread · Check valve (K) | $51.06 | |
| GFR30010MLJF2T | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · NPT thread | $39.84 | |
| GFR30010MLJF2TK | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.22 | |
| GFR30010MLJF2W | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · PT thread | $39.50 | |
| GFR30010MLJF2WK | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $50.89 | |
| GFR30010MLJF2WG | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · G thread | $39.68 | |
| GFR30010MLJF2WGK | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · G thread · Check valve (K) | $51.07 | |
| GFR30010MLJF2WT | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · NPT thread | $39.84 | |
| GFR30010MLJF2WTK | Manual drain (M) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.23 | |
| GFR30010MLF3T | Manual drain (M) · Low-pressure (L) | Square gauge, bar (F3) | With bracket · 40 µm · NPT thread | $41.33 | |
| GFR30010MLF3TK | Manual drain (M) · Low-pressure (L) | Square gauge, bar (F3) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.72 | |
| GFR30010MLF3WT | Manual drain (M) · Low-pressure (L) | Square gauge, bar (F3) | With bracket · 5 µm (W) · NPT thread | $41.34 | |
| GFR30010MLF3WTK | Manual drain (M) · Low-pressure (L) | Square gauge, bar (F3) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.72 | |
| GFR30010MLJF3T | Manual drain (M) · Low-pressure (L) | Square gauge, bar (F3) | No bracket (J) · 40 µm · NPT thread | $40.11 | |
| GFR30010MLJF3TK | Manual drain (M) · Low-pressure (L) | Square gauge, bar (F3) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.50 | |
| GFR30010MLJF3WT | Manual drain (M) · Low-pressure (L) | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · NPT thread | $40.12 | |
| GFR30010MLJF3WTK | Manual drain (M) · Low-pressure (L) | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.51 | |
| GFR30010MLC1T | Manual drain (M) · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 40 µm · NPT thread | $41.08 | |
| GFR30010MLC1TK | Manual drain (M) · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.47 | |
| GFR30010MLC1WT | Manual drain (M) · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 5 µm (W) · NPT thread | $41.09 | |
| GFR30010MLC1WTK | Manual drain (M) · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.47 | |
| GFR30010MLJC1T | Manual drain (M) · Low-pressure (L) | Round gauge, MPa (C1) | No bracket (J) · 40 µm · NPT thread | $39.86 | |
| GFR30010MLJC1TK | Manual drain (M) · Low-pressure (L) | Round gauge, MPa (C1) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.24 | |
| GFR30010MLJC1WT | Manual drain (M) · Low-pressure (L) | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · NPT thread | $39.87 | |
| GFR30010MLJC1WTK | Manual drain (M) · Low-pressure (L) | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.25 | |
| GFR30010MLC2 | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · PT thread | $40.73 | |
| GFR30010MLC2K | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · PT thread · Check valve (K) | $52.13 | |
| GFR30010MLC2G | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · G thread | $40.91 | |
| GFR30010MLC2GK | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · G thread · Check valve (K) | $52.30 | |
| GFR30010MLC2T | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · NPT thread | $41.08 | |
| GFR30010MLC2TK | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.47 | |
| GFR30010MLC2W | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · PT thread | $40.75 | |
| GFR30010MLC2WK | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $52.14 | |
| GFR30010MLC2WG | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · G thread | $40.92 | |
| GFR30010MLC2WGK | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · G thread · Check valve (K) | $52.31 | |
| GFR30010MLC2WT | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · NPT thread | $41.09 | |
| GFR30010MLC2WTK | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.48 | |
| GFR30010MLJC2 | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · PT thread | $39.51 | |
| GFR30010MLJC2K | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $50.90 | |
| GFR30010MLJC2G | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · G thread | $39.69 | |
| GFR30010MLJC2GK | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · G thread · Check valve (K) | $51.08 | |
| GFR30010MLJC2T | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · NPT thread | $39.86 | |
| GFR30010MLJC2TK | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.25 | |
| GFR30010MLJC2W | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · PT thread | $39.52 | |
| GFR30010MLJC2WK | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $50.92 | |
| GFR30010MLJC2WG | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · G thread | $39.70 | |
| GFR30010MLJC2WGK | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · G thread · Check valve (K) | $51.09 | |
| GFR30010MLJC2WT | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · NPT thread | $39.87 | |
| GFR30010MLJC2WTK | Manual drain (M) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.26 | |
| GFR30010MLC3T | Manual drain (M) · Low-pressure (L) | Round gauge, bar (C3) | With bracket · 40 µm · NPT thread | $41.35 | |
| GFR30010MLC3TK | Manual drain (M) · Low-pressure (L) | Round gauge, bar (C3) | With bracket · 40 µm · NPT thread · Check valve (K) | $52.74 | |
| GFR30010MLC3WT | Manual drain (M) · Low-pressure (L) | Round gauge, bar (C3) | With bracket · 5 µm (W) · NPT thread | $41.37 | |
| GFR30010MLC3WTK | Manual drain (M) · Low-pressure (L) | Round gauge, bar (C3) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $52.75 | |
| GFR30010MLJC3T | Manual drain (M) · Low-pressure (L) | Round gauge, bar (C3) | No bracket (J) · 40 µm · NPT thread | $40.14 | |
| GFR30010MLJC3TK | Manual drain (M) · Low-pressure (L) | Round gauge, bar (C3) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $51.52 | |
| GFR30010MLJC3WT | Manual drain (M) · Low-pressure (L) | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · NPT thread | $40.14 | |
| GFR30010MLJC3WTK | Manual drain (M) · Low-pressure (L) | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $51.53 | |
| GFR30010MLNT | Manual drain (M) · Low-pressure (L) | No gauge (N) | With bracket · 40 µm · NPT thread | $35.41 | |
| GFR30010MLNTK | Manual drain (M) · Low-pressure (L) | No gauge (N) | With bracket · 40 µm · NPT thread · Check valve (K) | $46.80 | |
| GFR30010MLNWT | Manual drain (M) · Low-pressure (L) | No gauge (N) | With bracket · 5 µm (W) · NPT thread | $35.42 | |
| GFR30010MLNWTK | Manual drain (M) · Low-pressure (L) | No gauge (N) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $46.81 | |
| GFR30010MLJNT | Manual drain (M) · Low-pressure (L) | No gauge (N) | No bracket (J) · 40 µm · NPT thread | $34.19 | |
| GFR30010MLJNTK | Manual drain (M) · Low-pressure (L) | No gauge (N) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $45.58 | |
| GFR30010MLJNWT | Manual drain (M) · Low-pressure (L) | No gauge (N) | No bracket (J) · 5 µm (W) · NPT thread | $34.20 | |
| GFR30010MLJNWTK | Manual drain (M) · Low-pressure (L) | No gauge (N) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $45.58 | |
| GFR30010AF1T | Automatic drain (A) · Standard | Square gauge, MPa (F1) | With bracket · 40 µm · NPT thread | $51.63 | |
| GFR30010AF1TK | Automatic drain (A) · Standard | Square gauge, MPa (F1) | With bracket · 40 µm · NPT thread · Check valve (K) | $63.02 | |
| GFR30010AF1WT | Automatic drain (A) · Standard | Square gauge, MPa (F1) | With bracket · 5 µm (W) · NPT thread | $51.64 | |
| GFR30010AF1WTK | Automatic drain (A) · Standard | Square gauge, MPa (F1) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $63.03 | |
| GFR30010AJF1 | Automatic drain (A) · Standard | Square gauge, MPa (F1) | No bracket (J) · 40 µm · PT thread | $50.70 | |
| GFR30010AJF1K | Automatic drain (A) · Standard | Square gauge, MPa (F1) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $62.05 | |
| GFR30010AJF1T | Automatic drain (A) · Standard | Square gauge, MPa (F1) | No bracket (J) · 40 µm · NPT thread | $50.41 | |
| GFR30010AJF1TK | Automatic drain (A) · Standard | Square gauge, MPa (F1) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $61.80 | |
| GFR30010AJF1W | Automatic drain (A) · Standard | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · PT thread | $50.70 | |
| GFR30010AJF1WK | Automatic drain (A) · Standard | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $62.05 | |
| GFR30010AJF1WT | Automatic drain (A) · Standard | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · NPT thread | $50.42 | |
| GFR30010AJF1WTK | Automatic drain (A) · Standard | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $61.81 | |
| GFR30010AF2 | Automatic drain (A) · Standard | Square gauge, psi (F2) | With bracket · 40 µm · PT thread | $51.29 | |
| GFR30010AF2K | Automatic drain (A) · Standard | Square gauge, psi (F2) | With bracket · 40 µm · PT thread · Check valve (K) | $62.68 | |
| GFR30010AF2G | Automatic drain (A) · Standard | Square gauge, psi (F2) | With bracket · 40 µm · G thread | $51.47 | |
| GFR30010AF2GK | Automatic drain (A) · Standard | Square gauge, psi (F2) | With bracket · 40 µm · G thread · Check valve (K) | $62.85 | |
| GFR30010AF2T | Automatic drain (A) · Standard | Square gauge, psi (F2) | With bracket · 40 µm · NPT thread | $51.63 | |
| GFR30010AF2TK | Automatic drain (A) · Standard | Square gauge, psi (F2) | With bracket · 40 µm · NPT thread · Check valve (K) | $63.02 | |
| GFR30010AF2W | Automatic drain (A) · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · PT thread | $51.30 | |
| GFR30010AF2WK | Automatic drain (A) · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $62.68 | |
| GFR30010AF2WG | Automatic drain (A) · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · G thread | $51.47 | |
| GFR30010AF2WGK | Automatic drain (A) · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · G thread · Check valve (K) | $62.86 | |
| GFR30010AF2WT | Automatic drain (A) · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · NPT thread | $51.64 | |
| GFR30010AF2WTK | Automatic drain (A) · Standard | Square gauge, psi (F2) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $63.03 | |
| GFR30010AJF2 | Automatic drain (A) · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · PT thread | $50.07 | |
| GFR30010AJF2K | Automatic drain (A) · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $61.45 | |
| GFR30010AJF2G | Automatic drain (A) · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · G thread | $50.24 | |
| GFR30010AJF2GK | Automatic drain (A) · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · G thread · Check valve (K) | $61.63 | |
| GFR30010AJF2T | Automatic drain (A) · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · NPT thread | $50.41 | |
| GFR30010AJF2TK | Automatic drain (A) · Standard | Square gauge, psi (F2) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $61.80 | |
| GFR30010AJF2W | Automatic drain (A) · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · PT thread | $50.07 | |
| GFR30010AJF2WK | Automatic drain (A) · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $61.47 | |
| GFR30010AJF2WG | Automatic drain (A) · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · G thread | $50.26 | |
| GFR30010AJF2WGK | Automatic drain (A) · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · G thread · Check valve (K) | $61.64 | |
| GFR30010AJF2WT | Automatic drain (A) · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · NPT thread | $50.42 | |
| GFR30010AJF2WTK | Automatic drain (A) · Standard | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $61.81 | |
| GFR30010AF3T | Automatic drain (A) · Standard | Square gauge, bar (F3) | With bracket · 40 µm · NPT thread | $51.90 | |
| GFR30010AF3TK | Automatic drain (A) · Standard | Square gauge, bar (F3) | With bracket · 40 µm · NPT thread · Check valve (K) | $63.30 | |
| GFR30010AF3WT | Automatic drain (A) · Standard | Square gauge, bar (F3) | With bracket · 5 µm (W) · NPT thread | $51.91 | |
| GFR30010AF3WTK | Automatic drain (A) · Standard | Square gauge, bar (F3) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $63.31 | |
| GFR30010AJF3 | Automatic drain (A) · Standard | Square gauge, bar (F3) | No bracket (J) · 40 µm · PT thread | $50.70 | |
| GFR30010AJF3T | Automatic drain (A) · Standard | Square gauge, bar (F3) | No bracket (J) · 40 µm · NPT thread | $50.68 | |
| GFR30010AJF3TK | Automatic drain (A) · Standard | Square gauge, bar (F3) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $62.07 | |
| GFR30010AJF3W | Automatic drain (A) · Standard | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · PT thread | $50.70 | |
| GFR30010AJF3WT | Automatic drain (A) · Standard | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · NPT thread | $50.69 | |
| GFR30010AJF3WTK | Automatic drain (A) · Standard | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $62.08 | |
| GFR30010AC1T | Automatic drain (A) · Standard | Round gauge, MPa (C1) | With bracket · 40 µm · NPT thread | $51.65 | |
| GFR30010AC1TK | Automatic drain (A) · Standard | Round gauge, MPa (C1) | With bracket · 40 µm · NPT thread · Check valve (K) | $63.04 | |
| GFR30010AC1WT | Automatic drain (A) · Standard | Round gauge, MPa (C1) | With bracket · 5 µm (W) · NPT thread | $51.66 | |
| GFR30010AC1WTK | Automatic drain (A) · Standard | Round gauge, MPa (C1) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $63.05 | |
| GFR30010AJC1K | Automatic drain (A) · Standard | Round gauge, MPa (C1) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $62.05 | |
| GFR30010AJC1T | Automatic drain (A) · Standard | Round gauge, MPa (C1) | No bracket (J) · 40 µm · NPT thread | $50.43 | |
| GFR30010AJC1TK | Automatic drain (A) · Standard | Round gauge, MPa (C1) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $61.82 | |
| GFR30010AJC1W | Automatic drain (A) · Standard | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · PT thread | $50.70 | |
| GFR30010AJC1WK | Automatic drain (A) · Standard | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $62.05 | |
| GFR30010AJC1WT | Automatic drain (A) · Standard | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · NPT thread | $50.44 | |
| GFR30010AJC1WTK | Automatic drain (A) · Standard | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $61.83 | |
| GFR30010AC2 | Automatic drain (A) · Standard | Round gauge, psi (C2) | With bracket · 40 µm · PT thread | $51.31 | |
| GFR30010AC2K | Automatic drain (A) · Standard | Round gauge, psi (C2) | With bracket · 40 µm · PT thread · Check valve (K) | $62.70 | |
| GFR30010AC2G | Automatic drain (A) · Standard | Round gauge, psi (C2) | With bracket · 40 µm · G thread | $51.49 | |
| GFR30010AC2GK | Automatic drain (A) · Standard | Round gauge, psi (C2) | With bracket · 40 µm · G thread · Check valve (K) | $62.88 | |
| GFR30010AC2T | Automatic drain (A) · Standard | Round gauge, psi (C2) | With bracket · 40 µm · NPT thread | $51.66 | |
| GFR30010AC2TK | Automatic drain (A) · Standard | Round gauge, psi (C2) | With bracket · 40 µm · NPT thread · Check valve (K) | $63.04 | |
| GFR30010AC2W | Automatic drain (A) · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · PT thread | $51.32 | |
| GFR30010AC2WK | Automatic drain (A) · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $62.71 | |
| GFR30010AC2WG | Automatic drain (A) · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · G thread | $51.50 | |
| GFR30010AC2WGK | Automatic drain (A) · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · G thread · Check valve (K) | $62.89 | |
| GFR30010AC2WT | Automatic drain (A) · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · NPT thread | $51.67 | |
| GFR30010AC2WTK | Automatic drain (A) · Standard | Round gauge, psi (C2) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $63.05 | |
| GFR30010AJC2 | Automatic drain (A) · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · PT thread | $50.09 | |
| GFR30010AJC2K | Automatic drain (A) · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $61.48 | |
| GFR30010AJC2G | Automatic drain (A) · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · G thread | $50.27 | |
| GFR30010AJC2GK | Automatic drain (A) · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · G thread · Check valve (K) | $61.65 | |
| GFR30010AJC2T | Automatic drain (A) · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · NPT thread | $50.43 | |
| GFR30010AJC2TK | Automatic drain (A) · Standard | Round gauge, psi (C2) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $61.82 | |
| GFR30010AJC2W | Automatic drain (A) · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · PT thread | $50.10 | |
| GFR30010AJC2WK | Automatic drain (A) · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $61.49 | |
| GFR30010AJC2WG | Automatic drain (A) · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · G thread | $50.28 | |
| GFR30010AJC2WGK | Automatic drain (A) · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · G thread · Check valve (K) | $61.67 | |
| GFR30010AJC2WT | Automatic drain (A) · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · NPT thread | $50.45 | |
| GFR30010AJC2WTK | Automatic drain (A) · Standard | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $61.83 | |
| GFR30010AC3T | Automatic drain (A) · Standard | Round gauge, bar (C3) | With bracket · 40 µm · NPT thread | $51.93 | |
| GFR30010AC3TK | Automatic drain (A) · Standard | Round gauge, bar (C3) | With bracket · 40 µm · NPT thread · Check valve (K) | $63.32 | |
| GFR30010AC3WT | Automatic drain (A) · Standard | Round gauge, bar (C3) | With bracket · 5 µm (W) · NPT thread | $51.94 | |
| GFR30010AC3WTK | Automatic drain (A) · Standard | Round gauge, bar (C3) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $63.32 | |
| GFR30010AJC3 | Automatic drain (A) · Standard | Round gauge, bar (C3) | No bracket (J) · 40 µm · PT thread | $50.70 | |
| GFR30010AJC3T | Automatic drain (A) · Standard | Round gauge, bar (C3) | No bracket (J) · 40 µm · NPT thread | $50.71 | |
| GFR30010AJC3TK | Automatic drain (A) · Standard | Round gauge, bar (C3) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $62.10 | |
| GFR30010AJC3W | Automatic drain (A) · Standard | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · PT thread | $50.70 | |
| GFR30010AJC3WT | Automatic drain (A) · Standard | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · NPT thread | $50.72 | |
| GFR30010AJC3WTK | Automatic drain (A) · Standard | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $62.10 | |
| GFR30010AN | Automatic drain (A) · Standard | No gauge (N) | With bracket · 40 µm · PT thread | $46.16 | |
| GFR30010ANK | Automatic drain (A) · Standard | No gauge (N) | With bracket · 40 µm · PT thread · Check valve (K) | $57.51 | |
| GFR30010ANT | Automatic drain (A) · Standard | No gauge (N) | With bracket · 40 µm · NPT thread | $45.98 | |
| GFR30010ANTK | Automatic drain (A) · Standard | No gauge (N) | With bracket · 40 µm · NPT thread · Check valve (K) | $57.37 | |
| GFR30010ANW | Automatic drain (A) · Standard | No gauge (N) | With bracket · 5 µm (W) · PT thread | $46.16 | |
| GFR30010ANWK | Automatic drain (A) · Standard | No gauge (N) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $57.51 | |
| GFR30010ANWT | Automatic drain (A) · Standard | No gauge (N) | With bracket · 5 µm (W) · NPT thread | $45.99 | |
| GFR30010ANWTK | Automatic drain (A) · Standard | No gauge (N) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $57.38 | |
| GFR30010AJN | Automatic drain (A) · Standard | No gauge (N) | No bracket (J) · 40 µm · PT thread | $45.25 | |
| GFR30010AJNK | Automatic drain (A) · Standard | No gauge (N) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $56.60 | |
| GFR30010AJNT | Automatic drain (A) · Standard | No gauge (N) | No bracket (J) · 40 µm · NPT thread | $44.76 | |
| GFR30010AJNTK | Automatic drain (A) · Standard | No gauge (N) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $56.15 | |
| GFR30010AJNW | Automatic drain (A) · Standard | No gauge (N) | No bracket (J) · 5 µm (W) · PT thread | $45.25 | |
| GFR30010AJNWK | Automatic drain (A) · Standard | No gauge (N) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $56.60 | |
| GFR30010AJNWT | Automatic drain (A) · Standard | No gauge (N) | No bracket (J) · 5 µm (W) · NPT thread | $44.77 | |
| GFR30010AJNWTK | Automatic drain (A) · Standard | No gauge (N) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $56.16 | |
| GFR30010ALF1 | Automatic drain (A) · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 40 µm · PT thread | $51.81 | |
| GFR30010ALF1T | Automatic drain (A) · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 40 µm · NPT thread | $51.58 | |
| GFR30010ALF1TK | Automatic drain (A) · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 40 µm · NPT thread · Check valve (K) | $62.96 | |
| GFR30010ALF1W | Automatic drain (A) · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 5 µm (W) · PT thread | $51.81 | |
| GFR30010ALF1WT | Automatic drain (A) · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 5 µm (W) · NPT thread | $51.59 | |
| GFR30010ALF1WTK | Automatic drain (A) · Low-pressure (L) | Square gauge, MPa (F1) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $62.97 | |
| GFR30010ALJF1 | Automatic drain (A) · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 40 µm · PT thread | $50.70 | |
| GFR30010ALJF1T | Automatic drain (A) · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 40 µm · NPT thread | $50.35 | |
| GFR30010ALJF1TK | Automatic drain (A) · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $61.74 | |
| GFR30010ALJF1W | Automatic drain (A) · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · PT thread | $50.70 | |
| GFR30010ALJF1WT | Automatic drain (A) · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · NPT thread | $50.37 | |
| GFR30010ALJF1WTK | Automatic drain (A) · Low-pressure (L) | Square gauge, MPa (F1) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $61.75 | |
| GFR30010ALF2 | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · PT thread | $51.23 | |
| GFR30010ALF2K | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · PT thread · Check valve (K) | $62.62 | |
| GFR30010ALF2G | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · G thread | $51.41 | |
| GFR30010ALF2GK | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · G thread · Check valve (K) | $62.80 | |
| GFR30010ALF2T | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · NPT thread | $51.58 | |
| GFR30010ALF2TK | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 40 µm · NPT thread · Check valve (K) | $62.97 | |
| GFR30010ALF2W | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · PT thread | $51.24 | |
| GFR30010ALF2WK | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $62.64 | |
| GFR30010ALF2WG | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · G thread | $51.42 | |
| GFR30010ALF2WGK | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · G thread · Check valve (K) | $62.81 | |
| GFR30010ALF2WT | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · NPT thread | $51.59 | |
| GFR30010ALF2WTK | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $62.98 | |
| GFR30010ALJF2 | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · PT thread | $50.01 | |
| GFR30010ALJF2K | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $61.40 | |
| GFR30010ALJF2G | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · G thread | $50.19 | |
| GFR30010ALJF2GK | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · G thread · Check valve (K) | $61.58 | |
| GFR30010ALJF2T | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · NPT thread | $50.35 | |
| GFR30010ALJF2TK | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $61.75 | |
| GFR30010ALJF2W | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · PT thread | $50.02 | |
| GFR30010ALJF2WK | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $61.41 | |
| GFR30010ALJF2WG | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · G thread | $50.20 | |
| GFR30010ALJF2WGK | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · G thread · Check valve (K) | $61.59 | |
| GFR30010ALJF2WT | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · NPT thread | $50.37 | |
| GFR30010ALJF2WTK | Automatic drain (A) · Low-pressure (L) | Square gauge, psi (F2) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $61.76 | |
| GFR30010ALF3T | Automatic drain (A) · Low-pressure (L) | Square gauge, bar (F3) | With bracket · 40 µm · NPT thread | $51.85 | |
| GFR30010ALF3TK | Automatic drain (A) · Low-pressure (L) | Square gauge, bar (F3) | With bracket · 40 µm · NPT thread · Check valve (K) | $63.24 | |
| GFR30010ALF3WT | Automatic drain (A) · Low-pressure (L) | Square gauge, bar (F3) | With bracket · 5 µm (W) · NPT thread | $51.86 | |
| GFR30010ALF3WTK | Automatic drain (A) · Low-pressure (L) | Square gauge, bar (F3) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $63.25 | |
| GFR30010ALJF3T | Automatic drain (A) · Low-pressure (L) | Square gauge, bar (F3) | No bracket (J) · 40 µm · NPT thread | $50.63 | |
| GFR30010ALJF3TK | Automatic drain (A) · Low-pressure (L) | Square gauge, bar (F3) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $62.02 | |
| GFR30010ALJF3WT | Automatic drain (A) · Low-pressure (L) | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · NPT thread | $50.64 | |
| GFR30010ALJF3WTK | Automatic drain (A) · Low-pressure (L) | Square gauge, bar (F3) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $62.03 | |
| GFR30010ALC1 | Automatic drain (A) · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 40 µm · PT thread | $51.81 | |
| GFR30010ALC1K | Automatic drain (A) · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 40 µm · PT thread · Check valve (K) | $63.16 | |
| GFR30010ALC1T | Automatic drain (A) · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 40 µm · NPT thread | $51.60 | |
| GFR30010ALC1TK | Automatic drain (A) · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 40 µm · NPT thread · Check valve (K) | $62.99 | |
| GFR30010ALC1W | Automatic drain (A) · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 5 µm (W) · PT thread | $51.81 | |
| GFR30010ALC1WT | Automatic drain (A) · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 5 µm (W) · NPT thread | $51.61 | |
| GFR30010ALC1WTK | Automatic drain (A) · Low-pressure (L) | Round gauge, MPa (C1) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $63.00 | |
| GFR30010ALJC1T | Automatic drain (A) · Low-pressure (L) | Round gauge, MPa (C1) | No bracket (J) · 40 µm · NPT thread | $50.38 | |
| GFR30010ALJC1TK | Automatic drain (A) · Low-pressure (L) | Round gauge, MPa (C1) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $61.76 | |
| GFR30010ALJC1WT | Automatic drain (A) · Low-pressure (L) | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · NPT thread | $50.39 | |
| GFR30010ALJC1WTK | Automatic drain (A) · Low-pressure (L) | Round gauge, MPa (C1) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $61.78 | |
| GFR30010ALC2 | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · PT thread | $51.26 | |
| GFR30010ALC2K | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · PT thread · Check valve (K) | $62.65 | |
| GFR30010ALC2G | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · G thread | $51.43 | |
| GFR30010ALC2GK | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · G thread · Check valve (K) | $62.83 | |
| GFR30010ALC2T | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · NPT thread | $51.60 | |
| GFR30010ALC2TK | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 40 µm · NPT thread · Check valve (K) | $62.99 | |
| GFR30010ALC2W | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · PT thread | $51.27 | |
| GFR30010ALC2WK | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · PT thread · Check valve (K) | $62.66 | |
| GFR30010ALC2WG | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · G thread | $51.44 | |
| GFR30010ALC2WGK | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · G thread · Check valve (K) | $62.84 | |
| GFR30010ALC2WT | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · NPT thread | $51.61 | |
| GFR30010ALC2WTK | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $63.00 | |
| GFR30010ALJC2 | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · PT thread | $50.04 | |
| GFR30010ALJC2K | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · PT thread · Check valve (K) | $61.43 | |
| GFR30010ALJC2G | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · G thread | $50.22 | |
| GFR30010ALJC2GK | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · G thread · Check valve (K) | $61.60 | |
| GFR30010ALJC2T | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · NPT thread | $50.38 | |
| GFR30010ALJC2TK | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $61.77 | |
| GFR30010ALJC2W | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · PT thread | $50.05 | |
| GFR30010ALJC2WK | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · PT thread · Check valve (K) | $61.43 | |
| GFR30010ALJC2WG | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · G thread | $50.22 | |
| GFR30010ALJC2WGK | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · G thread · Check valve (K) | $61.61 | |
| GFR30010ALJC2WT | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · NPT thread | $50.39 | |
| GFR30010ALJC2WTK | Automatic drain (A) · Low-pressure (L) | Round gauge, psi (C2) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $61.78 | |
| GFR30010ALC3T | Automatic drain (A) · Low-pressure (L) | Round gauge, bar (C3) | With bracket · 40 µm · NPT thread | $51.87 | |
| GFR30010ALC3TK | Automatic drain (A) · Low-pressure (L) | Round gauge, bar (C3) | With bracket · 40 µm · NPT thread · Check valve (K) | $63.26 | |
| GFR30010ALC3WT | Automatic drain (A) · Low-pressure (L) | Round gauge, bar (C3) | With bracket · 5 µm (W) · NPT thread | $51.89 | |
| GFR30010ALC3WTK | Automatic drain (A) · Low-pressure (L) | Round gauge, bar (C3) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $63.27 | |
| GFR30010ALJC3T | Automatic drain (A) · Low-pressure (L) | Round gauge, bar (C3) | No bracket (J) · 40 µm · NPT thread | $50.65 | |
| GFR30010ALJC3TK | Automatic drain (A) · Low-pressure (L) | Round gauge, bar (C3) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $62.04 | |
| GFR30010ALJC3WT | Automatic drain (A) · Low-pressure (L) | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · NPT thread | $50.66 | |
| GFR30010ALJC3WTK | Automatic drain (A) · Low-pressure (L) | Round gauge, bar (C3) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $62.06 | |
| GFR30010ALNT | Automatic drain (A) · Low-pressure (L) | No gauge (N) | With bracket · 40 µm · NPT thread | $45.93 | |
| GFR30010ALNTK | Automatic drain (A) · Low-pressure (L) | No gauge (N) | With bracket · 40 µm · NPT thread · Check valve (K) | $57.32 | |
| GFR30010ALNWT | Automatic drain (A) · Low-pressure (L) | No gauge (N) | With bracket · 5 µm (W) · NPT thread | $45.94 | |
| GFR30010ALNWTK | Automatic drain (A) · Low-pressure (L) | No gauge (N) | With bracket · 5 µm (W) · NPT thread · Check valve (K) | $57.33 | |
| GFR30010ALJNT | Automatic drain (A) · Low-pressure (L) | No gauge (N) | No bracket (J) · 40 µm · NPT thread | $44.71 | |
| GFR30010ALJNTK | Automatic drain (A) · Low-pressure (L) | No gauge (N) | No bracket (J) · 40 µm · NPT thread · Check valve (K) | $56.10 | |
| GFR30010ALJNWT | Automatic drain (A) · Low-pressure (L) | No gauge (N) | No bracket (J) · 5 µm (W) · NPT thread | $44.72 | |
| GFR30010ALJNWTK | Automatic drain (A) · Low-pressure (L) | No gauge (N) | No bracket (J) · 5 µm (W) · NPT thread · Check valve (K) | $56.10 |
Need a combination that is not listed? Request a quote.
Where the GFR300-10 Is Used
Machine air inlet
Fit the GFR300-10 where compressed air enters a machine.
Stable working pressure
Set and hold the pressure your valves and cylinders need.
Pneumatic stations
Feeds cylinders, valves and tools on one air line.
Choosing the Right GFR300-10 Configuration
Start with the drain and type. Automatic drain (A) empties the bowl on its own, for lines with a lot of condensate. Manual drain (M) is opened by hand and also works at low pressure. The standard differential-pressure drain releases water when line pressure drops. Low-pressure (L) versions regulate up to 0.4 MPa (58 psi).
Then the pressure gauge: square (F) or round (C), reading in MPa (1), psi (2) or bar (3), or no gauge (N) if you read pressure elsewhere.
Finally the configuration. A mounting bracket is included unless the code carries J. The 40 µm element is standard; W gives a 5 µm element for cleaner air. Thread is PT unless the code ends in G (G thread) or T (NPT), before any K. K adds a check valve.
AirTAC GFR300-10 FAQ
It regulates from 0.15 to 0.9 MPa (20-130 psi) with automatic or differential-pressure drain, and from 0.05 to 0.9 MPa (7-130 psi) with manual drain. Low-pressure (L) versions go up to 0.4 MPa (58 psi).
3/8" (10), PT thread as standard; G = G, T = NPT at the end of the code.
F = square gauge, C = round gauge, followed by the scale: 1 = MPa, 2 = psi, 3 = bar. N means no gauge.
No. You can order a single GFR300-10. Orders are processed and handed to the carrier within 3-5 business days.
Buying the GFR300-10 from AirtacDistr
Genuine AirTAC parts
Every order code on this page is the AirTAC factory part number. Specifications follow the AirTAC Products Catalog 2026A. About us
Ready in 3-5 business days
That is our time to process the order and hand it to the carrier. No minimum order: a single piece can be ordered.
14-day returns, 1-year warranty
Return within 14 days of delivery; the buyer pays return shipping. The warranty covers defects not caused by misuse. Return policy
Engineering help
Send your application details and we will confirm the right order code, usually within 7-8 hours. Ask us
Page data checked against the live catalog on 2026-10-30.
Request a Quote for the GFR300-10
Send the order code, quantity and destination. We confirm price, stock and lead time, usually within 7-8 hours.
Thank you. We received your request for GFR30010C1 and will confirm price, stock and lead time — usually within 7-8 hours.
