AirTAC MIJ Series Adjustable Mini Cylinders
The AirTAC MIJ series is a stainless-steel adjustable-stroke mini air cylinder spanning 8-40 mm bores, letting you fine-tune the forward end position on site without external stops.
inventory_2958 models availableSeries Overview

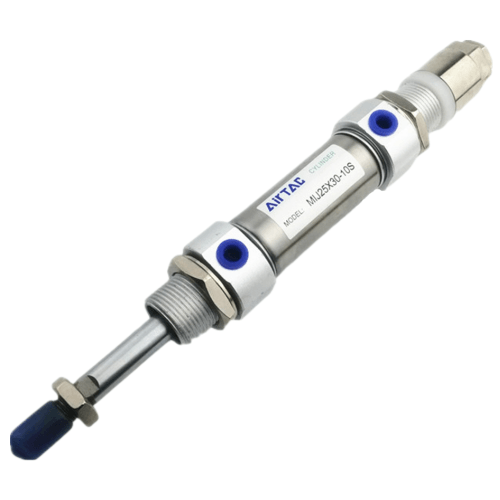

The AirTAC MIJ series is the adjustable-stroke version of the MI round-body mini cylinder. It features a stainless-steel riveted barrel and rod for corrosion resistance. An external adjusting screw and stop nut let you shorten the extend stroke on site within a per-model window. This allows you to fine-tune the forward end position during commissioning without changing the cylinder.
The range spans 8 to 40 mm across eight bores: 8 10 12 16 20 25 32 and 40. Rod diameter scales from 4 mm on the bore 8 up to 16 mm on the bore 40. Ports are M5x0.8 on bores 8-12 1/8 inch on bores 16-25 and 1/4 inch on bores 32-40. The standard max stroke reaches 500 mm for bores 16-40. Theoretical force at 1.0 MPa spans about 5 kgf on the bore 8 up to 128 kgf on the bore 40.
All models are double acting with fixed TPU bumper pads that decelerate the piston near stroke end. They operate on 40 um filtered air at 0.15-1.0 MPa with proof pressure of 1.5 MPa. Operating temperature is -20 to +70 C and speed ranges 30-800 mm/s. The series conforms to ISO 6432 for bores 8-25 only. Bores 32 and 40 are larger non-ISO-6432 round-body sizes. An -S magnet option supports CMSG DMSG and EMSG sensors.
Browse Models
Airtac MIJ Adjustable Cylinder MIJ8X40-10STC
SKU: MIJ8X40-10STC
$30.93$38.43
schedule Confirm lead time
Typical Applications
Pick-and-place end-position tuning
Small-bore MIJ cylinders let technicians dial in the exact extend stop on packaging pick-and-place heads without machining external spacers.
Variable-depth sealing presses
The adjustable forward stroke accommodates different carton or package heights on a single sealing station using the 16-25 mm ISO 6432 bores.
Washdown clamping actuators
Stainless-steel barrels and rods suit food and medical washdown environments where the external screw sets the precise clamp depth.
How to Choose the Right Model
Choose the bore based on your force requirement: push force at 0.5 MPa spans about 25 N on the bore 8 to 628 N on the bore 40. Select the MIJ when you need to trim the forward end position at commissioning without adding external physical stops. Confirm these five points before ordering: bore size required stroke or adjustment window port thread type PT or G mounting style and the -S magnet option if position sensing is needed.
If your application needs adjustable air cushioning rather than fixed TPU bumpers step out to the MIC series. If you need both adjustable stroke and adjustable cushioning choose the MICJ series. For standard fixed-stroke applications without on-site stroke adjustment use the base MI series. A double-acting air cylinder does not hold position when pressure is lost. If load holding is needed a mechanical lock rod brake or pilot check valve is required.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Stroke and available mounting space
- ✓ Port / thread type (PT / NPT / G)
- ✓ Sensor / magnet option (-S)?
- ✓ Side load — consider a guided model
Frequently Asked Questions
The bore range spans 8 to 40 mm across eight sizes. At 0.5 MPa the push force spans about 25 N on the bore 8 up to 628 N on the bore 40. The theoretical maximum force at 1.0 MPa spans about 5 kgf to 128 kgf. Standard max stroke is 500 mm for bores 16-40.
The MIJ has an external adjusting screw to shorten the extend stroke on site with fixed TPU bumper pads. The MI is the fixed-stroke base model. The MIC provides adjustable air cushioning. The MICJ combines both adjustable stroke and adjustable cushioning.
The MIJ series conforms to ISO 6432 for bores 8 10 12 16 20 and 25 only. The 32 mm and 40 mm bore sizes are larger non-ISO-6432 round-body mini cylinders.
No. The MIJ is a double-acting air cylinder with fixed TPU bumper pads that only decelerate the piston near stroke end. It does not function as a lock or brake. If load holding is required upon pressure loss you must use a mechanical lock rod brake or pilot check valve.
