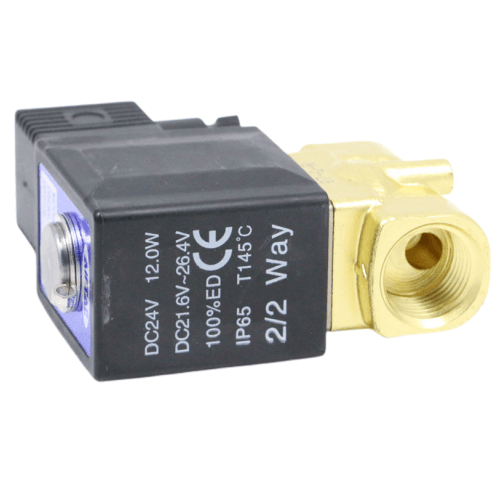

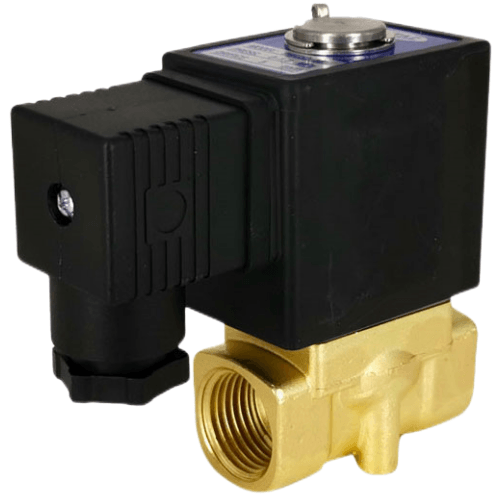

Airtac 2WH High-Pressure Solenoid Valve 2WH05015F
2、Wide pressure range applicability - available in Ultra-high pressure (X), High pressure (H), Standard, Large flow (L), and Super-large flow (T) variants;
3、Compact structure with minimized dimensions, lightweight design, and tool-free installation;
4、Brass valve body construction with Class B thermal-rated coil. Standard FPMF (Fluoroelastomer Viton®) seals compatible with multiple media. Custom seal materials available upon request (consult technical department);
5、IP65-rated coil protection. Wiring options: Direct lead wire or DIN connector configuration.
Category: High Pressure Solenoid Valves | Brand: AIRTAC | Series: 2WH
AirTAC 2WH05015F High Pressure Solenoid Valve Specifications
- Model: 2WH05015F
- Type: 2-position, 3-way normally closed (direct-acting)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.5–21 MPa
- Max working pressure: 25 MPa (intermittent)
- Voltage options: DC24V (±10%), AC220V (±10% 50/60Hz)
- Power consumption: DC: 8.5W / AC: 12VA
- Response time: ≤15ms (at 21MPa)
- Flow coefficient (Cv): 1.8
- Seal material: FKM (Fluorocarbon Rubber)
- Temperature range: -10℃ to 80℃ (with silicone grease below 0℃)
- Protection rating: IP67 (with DIN connector)
- Weight: 1.2kg ±5%
- Dimensions: 98mm(L) × 50mm(W) × 55mm(H)
- Port thread depth: 12mm (double O-ring seal)
- Hysteresis: ≤0.5% F.S.
High-pressure solenoid valve engineered for extreme hydraulic/pneumatic systems, featuring hardened stainless steel spool and anti-vibration coil design. The multi-stage sealing system ensures zero leakage under 21MPa continuous operation. Requires ISO 4401 mounting interface and compatible with HFD fluids.
- Hydraulic pressurization systems in oil/gas equipment
- High-pressure water jet cutting machines
- CNC hydraulic clamping devices
- Test bench pressure regulation (air/water/oil)
- Mining machinery emergency shut-off systems
Installation criticals:
Must be mounted horizontally with fluid flow direction matching body arrow.
Use torque wrench for port connections (35-40N·m max).
Requires 10μm filtration and monthly drain valve maintenance in high-humidity environments.
| Property | Property Value |
|---|---|
| sku | 2WH05015F |
| Port Size | PT 1/2 |
| Flow Aperture | <4mm> |
| Coil Voltage | DC12V |
