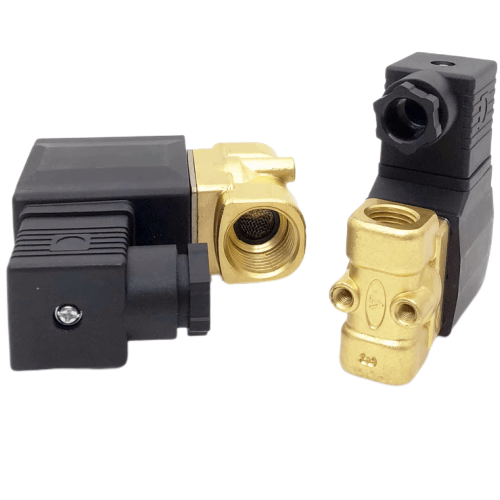

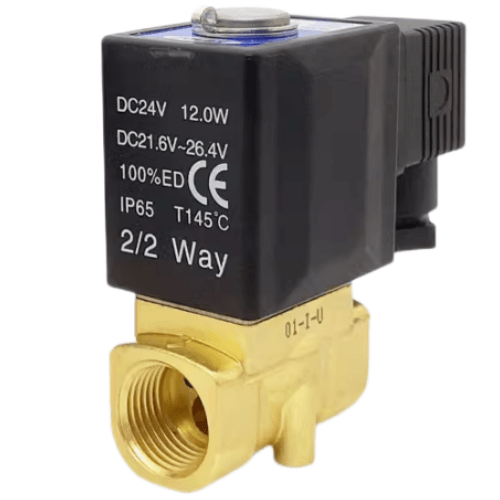

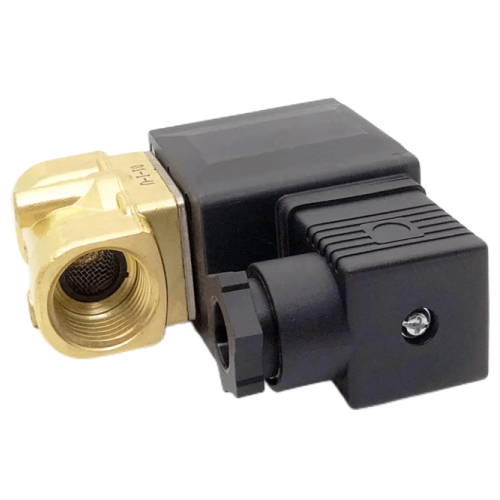

Airtac 2WL High Pressure Solenoid Valve 2WL05015F
2. Wide pressure range adaptability: Available in Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T) configurations;
3. Compact design with reduced dimensions and lightweight construction for easy installation/maintenance;
4. Brass valve body with Class B thermal-rated coil. Standard FPMF (Fluorocarbon Rubber) seals compatible with multiple media. Custom seal materials available upon consultation with technical department;
5. IP65-rated coil protection. Wiring options: Direct lead wire or DIN connector.
Category: High Pressure Solenoid Valves | Brand: Airtac | Series: 2WL
AirTAC 2WL05015F High-Pressure Solenoid Valve Technical Details
- Model: 2WL05015F
- Type: 5/2-way monostable (pilot-operated)
- Port size: PT1/2 (G1/2 optional)
- Operating pressure: 0.5–25 MPa (7.25–3625 PSI)
- Max pressure: 35 MPa (5076 PSI burst pressure)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (±15%), AC220V (±15%)
- Weight: 450g ±5% (with accessories)
- Dimensions: 98mm(L) × 52mm(W) × 52mm(H)
- Seal material: Fluorocarbon rubber (FKM)
- Temperature range: -10℃ to 120℃ (with dry air)
- Power consumption: 3.5W (DC), 5VA (AC)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Flow coefficient (Cv): 3.2
- Protection rating: IP67 (dust/immersion proof)
- Port thread depth: 13mm (ISO 1179 standard)
Heavy-duty solenoid valve engineered for ultra-high pressure pneumatic systems. Features triple-layered epoxy-coated aluminum body with stainless steel core components. The balanced spool design ensures stable switching under extreme pressures. Requires 10μm filtration and oil-mist lubrication (ISO 8573-1 class 3). Compatible with inert gases when using optional PTFE seals.
- Hydraulic system pilot controls
- CNC machine tool clamping mechanisms
- High-pressure gas chromatography equipment
- Industrial boiler safety venting systems
- Plastic injection molding machines
- Pressure testing rigs (up to 250 bar)
Installation requirements:
Mount horizontally with arrow aligned to flow direction.
Use torque-controlled wrench (35-40 N·m for PT ports).
Requires surge protector for AC models.
Annual maintenance recommended for >15 MPa applications.
- DIN43650 Form C connector (included)
- Lead wire option: 300mm shielded cable (IP68)
- Polarity protection: Built-in diode for DC models
| Property | Property Value |
|---|---|
| sku | 2WL05015F |
| Port Size | PT 1/2 |
| Flow Aperture | 7mm |
| Coil Voltage | DC12V |
