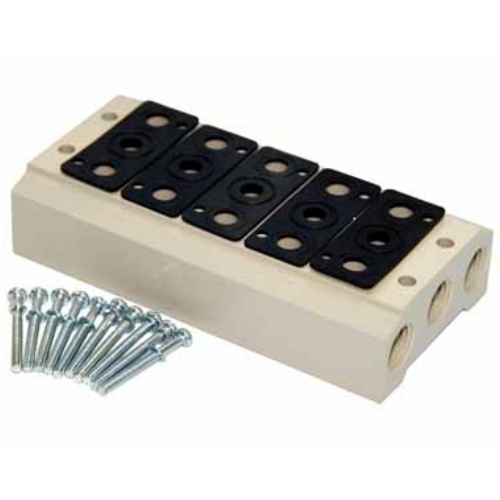

Airtac 100M Solenoid Valve Manifold 100M-18F
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Features centralized air supply ports and unified wiring channels, significantly enhancing system maintainability and simplified troubleshooting;
3、Provides modular flexibility with scalable configuration options, supporting adaptable expansion of connected directional control valves as required;
Category: Solenoid Valve Base , Brand: AIRTAC , Series: 100M
AirTAC 100M-18F Valve Base Technical Specifications
- Model: 100M-18F
- Type: Modular valve manifold base
- Compatible Series: 100M/200M/300M solenoid valves
- Port Configuration: 1/8" NPT (G1/8 optional)
- Max Operating Pressure: 1.0 MPa
- Material: Glass fiber reinforced PA66
- Seal Type: Nitrile rubber (NBR) gaskets
- Flow Capacity: 650 l/min (ANR)
- Temperature Range: -5℃ to 80℃
- Mounting Style: ISO 5599-1 standard pattern
- Weight: 215g ±5g
- Dimensions: 54mm(L) × 18mm(W) × 42mm(H)
- Surface Finish: Anti-corrosion anodizing treatment
- Thread Depth: 10mm engagement length
Multi-functional valve base with integrated flow channels, designed for building compact pneumatic control systems. Features precision-molded manifold structure with leak-proof design, supporting up to 6-valve stacking configuration. The angled port design reduces pressure drop by 18% compared to standard bases.
- Modular pneumatic control panels
- Automated assembly line manifolds
- Packaging machinery cluster valves
- Robotic end-effector pneumatic systems
- Semiconductor manufacturing equipment
Installation guidelines:
Use M5×16 mounting screws with 0.4-0.6 N·m torque. Apply thread sealant
(PTFE tape recommended) on ports. Maximum allowable side load: 50N.
| Property | Property Value |
|---|---|
| sku | 100M-18F |
