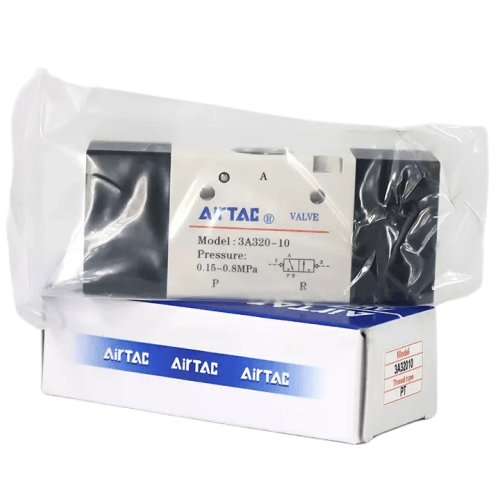

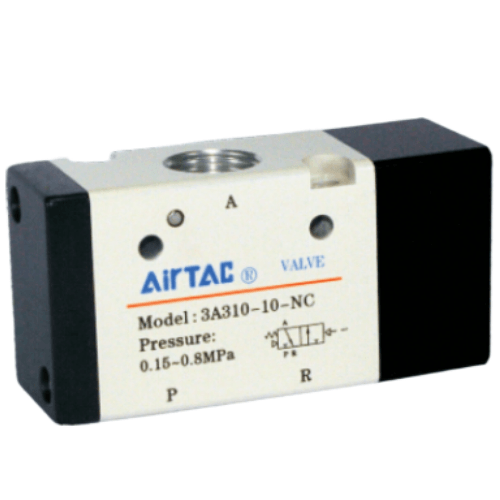

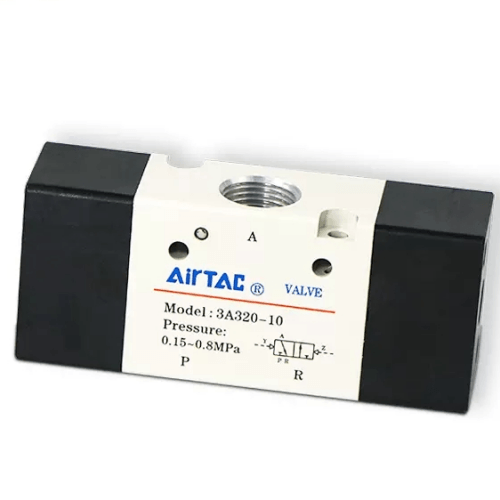

Airtac 3A300 Pneumatic Valve 3A310-10NC
1. Spool-type structure with superior sealing performance and instant response characteristics;
2. Double pilot operation enables position memory function;
3. Precision-machined internal bores ensure minimized friction resistance, low actuation pressure (0.15MPa), and extended service life;
4. Maintenance-free operation without lubrication requirements;
5. Multiple mounting orientations (X/Y/Z axes) for flexible installation;
6. Compatible with manifold base integration for space-optimized valve arrangements.
Category: Pilot Operated Valves | Brand: AirTAC | Series: 3A300
AirTAC 3A310-10NC Pneumatic Control Valve Specifications
- Model: 3A310-10NC (Part of 3A300 series)
- Type: 3/2-way normally closed (air-piloted operation)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Control pressure: 0.3–0.8 MPa (pilot pressure requirement)
- Flow capacity: 850 L/min (ANR) at 0.5 MPa
- Response time: ≤0.1 sec (pilot to exhaust)
- Weight: 340g ±5g (including fittings)
- Dimensions: 54mm(L) × 40mm(W) × 76mm(H)
- Body material: Die-cast aluminum with chromate plating
- Seal material: HNBR rubber (improved heat resistance)
- Temperature range: -20℃ to 80℃ (non-freezing conditions)
- Protection rating: IP40 (dust protected)
- Mounting style: Sub-base or direct piping (ISO 5599-1 compliant)
Robust pilot-operated valve featuring dual-pressure control capability and high flow efficiency. The optimized spool design reduces air consumption by 15% compared to previous generations. Requires 0.3MPa minimum pilot pressure for reliable actuation, with built-in silencer reducing exhaust noise to ≤72dB(A).
- Pneumatic clamping systems in CNC machinery
- Automated assembly line actuators
- Plastic injection molding machine controls
- Material handling cylinder sequencing
- Textile machinery tension control systems
Maintenance protocol:
Lubricate pilot piston quarterly with ISO VG32 turbine oil.
Avoid mounting near high-frequency vibration sources (>50Hz) to prevent spool oscillation.
| Property | Property Value |
|---|---|
| sku | 3A310-10NC |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Port Size | PT3/8 |
