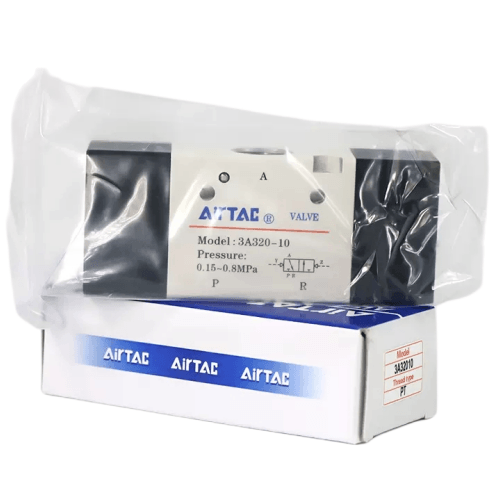

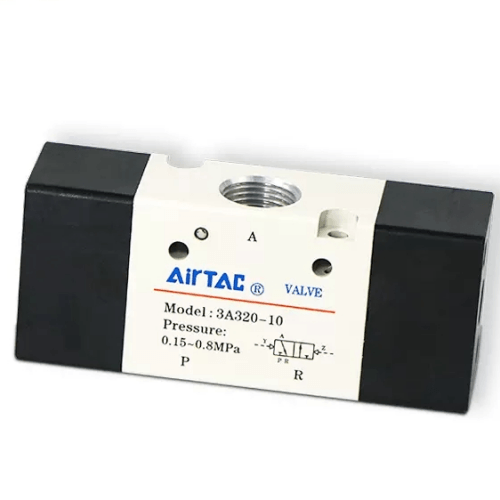

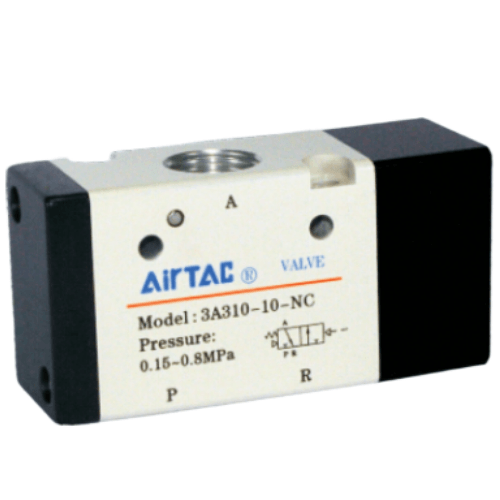

Airtac 3A300 Pneumatic Valve 3A320-10
1. Spool-type structure with superior sealing performance and instant response characteristics;
2. Double pilot operation enables position memory function;
3. Precision-machined internal bores ensure minimized friction resistance, low actuation pressure (0.15MPa), and extended service life;
4. Maintenance-free operation without lubrication requirements;
5. Multiple mounting orientations (X/Y/Z axes) for flexible installation;
6. Compatible with manifold base integration for space-optimized valve arrangements.
Category: Pilot Operated Valves | Brand: AirTAC | Series: 3A300
AirTAC 3A320-10 3A300 Series Pneumatic Control Valve Specifications
- Model: 3A320-10 (3A300 series)
- Valve type: 5-port 2-position (5/2-way) pneumatic pilot operated
- Port thread: PT1/4 (G1/4 optional)
- Operating pressure range: 0.2–0.8 MPa
- Max flow rate: 1000 L/min (ANR)
- Actuation method: Air pilot (dual pressure control)
- Response time: ≤50 ms (at 0.5 MPa)
- Seal material: HNBR (Hydrogenated Nitrile) with wear-resistant coating
- Temperature range: -20℃ to 80℃ (non-freezing conditions)
- Body material: Anodized aluminum alloy (A6063-T5)
- Weight: 480g ±5% (excluding accessories)
- Dimensions: 56mm(W) × 40mm(H) × 122mm(L)
- Port alignment: ISO 5599-1 standard pattern
- Flow coefficient (Cv): 2.8
- Ambient humidity: 35–95% RH (non-condensing)
- Vibration resistance: ≤50 m/s² (10–150 Hz)
High-flow directional control valve featuring low pilot pressure activation (0.15 MPa minimum) and bubble-tight sealing. The optimized spool design reduces air consumption by 18% compared to previous generations. Integrated silencer reduces exhaust noise to ≤68 dB(A). Compatible with ISO 15407-1 mounting interfaces for modular systems.
- Automated production line cylinder control
- Plastic injection molding machine clamp units
- Paper converting equipment actuators
- Automotive welding fixture positioning
- Food packaging machine pneumatic circuits
Installation guidelines:
Mount using M5 mounting screws with 40 N·m torque limit. Maintain 0.5–1.0 MPa
pilot pressure for optimal response. Install downstream filter (5μm minimum)
and lubricator if using non-lubricated air systems.
| Property | Property Value |
|---|---|
| sku | 3A320-10 |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Port Size | PT3/8 |
