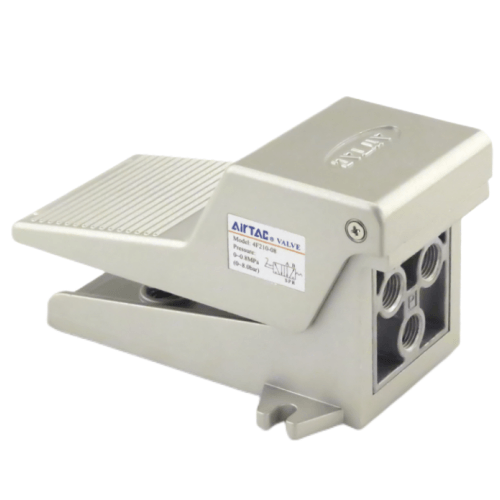

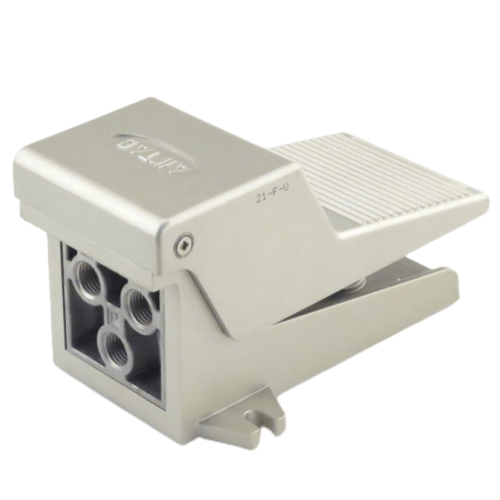

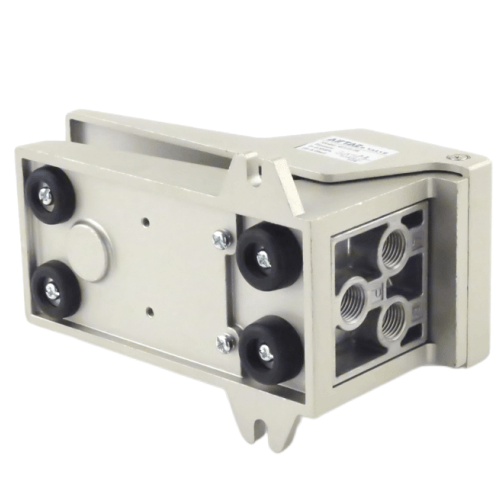

Airtac 4F Foot Pedal Valve 4F210-08
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Lockable variant available for applications requiring extended directional holding;
3. Robust locking mechanism ensures secure engagement with smooth quick-release action. Note: Structural constraints limit suitability for frequent high-impact scenarios;
4. Optional high-strength plastic protective cover enhances durability.
Category: Foot Valve , Brand: Airtac , Series: 4F
AirTAC 4F210-08 Foot Pedal Valve Technical Details
- Model: 4F210-08
- Type: 2-position foot-operated directional valve
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Valve body material: Aluminum alloy with electroplated finish
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Mounting type: Base plate mounting (ISO 6432 compatible)
- Operating force: ~30N (6.7 lbf) pedal pressure
- Repeat accuracy: ±0.5mm pedal stroke consistency
- Durability: 1,000,000+ cycles (EN 15714-2 certified)
- Weight: 520g (1.15 lbs)
- Dimensions: 120mm(L) × 80mm(W) × 40mm(H)
- Surface roughness: Ra ≤3.2μm (pedal contact area)
- Protection rating: IP54 (dust protected & water splashed)
Ergonomic foot-operated valve with dual-stage pedal action, featuring a progressive engagement mechanism for precise airflow control. The anti-slip diamond pattern pedal surface ensures operator safety in oily environments. Includes built-in muffler (25dB noise reduction) and maintenance-free pivot bearings.
- Press machine emergency stop systems
- Assembly line fixture clamping control
- Medical bed height adjustment mechanisms
- Packaging machine intermittent feed operations
- Woodworking CNC hold-down actuators
Maintenance tip:
Lubricate pivot points with ISO VG32 hydraulic oil every 50,000 cycles.
Use only dry compressed air (dew point -25℃ below ambient temperature).
| Property | Property Value |
|---|---|
| sku | 4F210-08 |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
