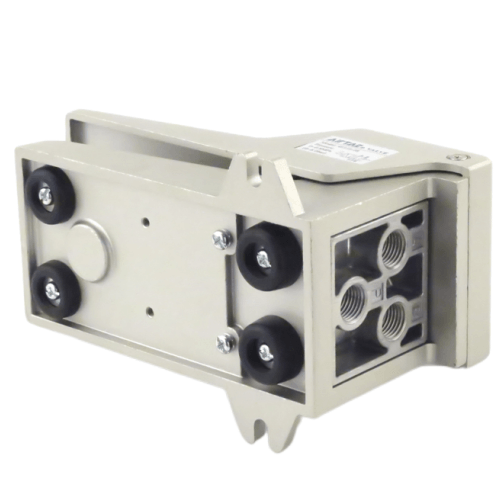

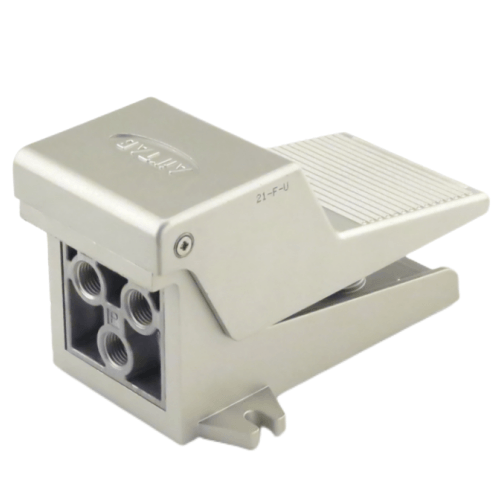

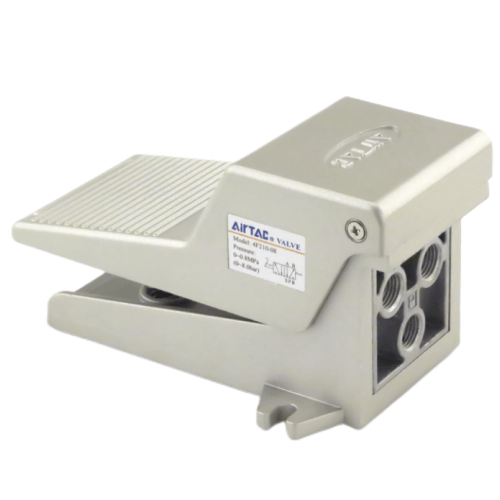

Airtac 4F Foot Pedal Valve 4F210-08F
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Lockable variant available for applications requiring extended directional holding;
3. Robust locking mechanism ensures secure engagement with smooth quick-release action. Note: Structural constraints limit suitability for frequent high-impact scenarios;
4. Optional high-strength plastic protective cover enhances durability.
Category: Foot Valve , Brand: Airtac , Series: 4F
AirTAC 4F210-08F Foot Pedal Valve Technical Details
- Model: 4F210-08F
- Type: 2-position manual foot-operated valve (spring return)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Max flow rate: 750 L/min (Cv=1.3)
- Actuation force: 30-50N pedal pressure
- Body material: Anodized aluminum alloy
- Seal material: Oil-resistant NBR
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 520g ±5% (1.15 lbs)
- Dimensions: 60mm(W) × 50mm(D) × 120mm(H)
- Mounting: Base plate installation with 4×M5 threaded holes
- Port thread depth: 12mm engagement length
- Hose connection: Accepts 8mm OD pneumatic tubing
Ergonomic foot-operated valve designed for hands-free pneumatic control, featuring a non-slip textured pedal surface and heavy-duty steel spring mechanism. The dual exhaust ports enable rapid cylinder retraction, while the chrome-plated shaft ensures smooth operation even under continuous cycling. Requires lubricated air (ISO VG32 or equivalent).
- Press machine emergency stop systems
- Medical bed height adjustment controls
- Automotive assembly line fixture activation
- Packaging machine temporary hold positions
- Laboratory equipment safety override
Maintenance tip: Lubricate pivot points every 50,000 cycles using silicone-based grease.
Ensure floor mounting surface has ≤2° inclination for optimal pedal feedback.
Critical note: Do NOT use with aggressive chemicals or phosphate ester fluids.
Always install downstream filter (5μm minimum) to prevent seal degradation.
| Property | Property Value |
|---|---|
| sku | 4F210-08F |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
