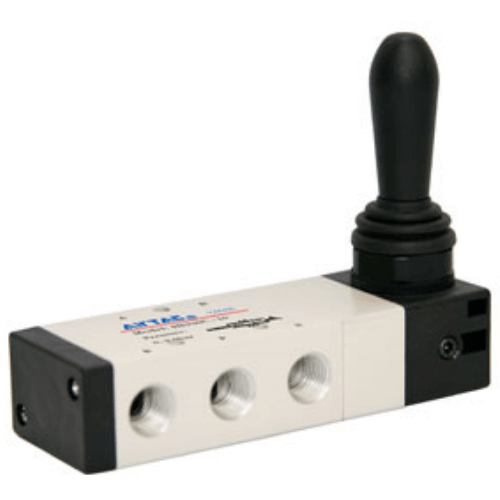

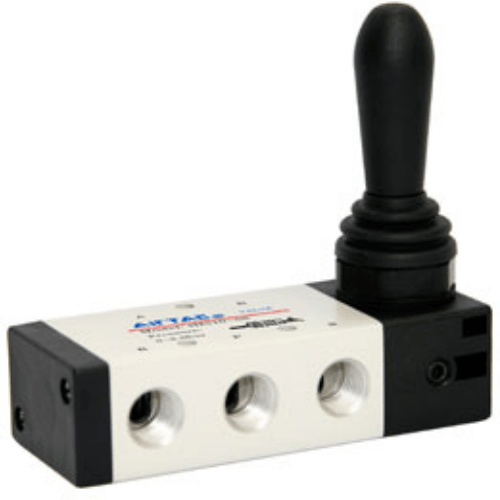

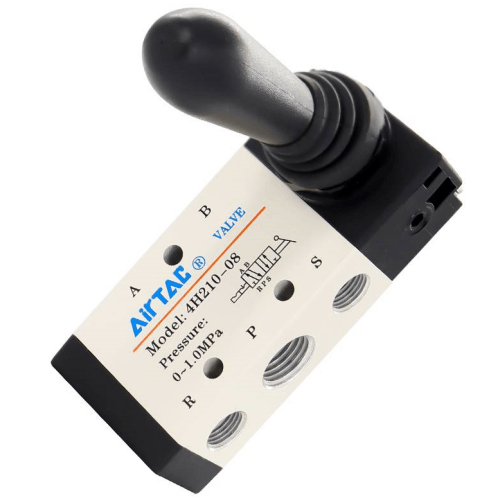

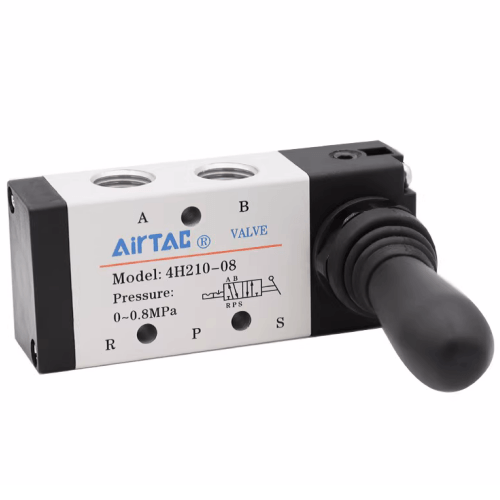

Airtac 4H Manual Valve 4H330C-08
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H
AirTAC 4H330C-08 Manual Valve Technical Specifications
- Model: 4H330C-08
- Type: 3-position, 4-way manual directional valve
- Operation method: Mechanical lever actuation
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhausts)
- Port size: PT1/8 (G1/8 optional)
- Max operating pressure: 1.0 MPa
- Proof pressure: 1.5 MPa
- Flow capacity: 750 L/min (ANR)
- Ambient temperature range: -5℃ to 60℃
- Seal material: NBR (Nitrile), optional Viton available
- Body material: Aluminum alloy (anodized surface)
- Manual force: ≤35N
- Weight: 340g ±5%
- Dimensions: 78mm(L) × 32mm(W) × 42mm(H)
- Mounting style: Sub-base or direct piping
- Protection rating: IP40 (dust protected)
Industrial-grade manual override valve with positive center position detent, designed for precise pneumatic circuit control in environments requiring manual intervention. Features double-sealing structure with wear compensation and anti-vibration lever lock mechanism. Compatible with ISO 15407-1 standards.
- Emergency override in automated production lines
- Maintenance bypass in plastic injection molding machines
- Manual mode operation for pneumatic press safety systems
- Educational/training equipment for pneumatics labs
- Mobile hydraulic/pneumatic hybrid systems
Installation notes:
Lubricate pivot points with ISO VG32 hydraulic oil before initial use.
Ensure exhaust ports face downward when mounted vertically.
Use PTFE tape on pipe threads with ≤0.7Nm tightening torque.
| Property | Property Value |
|---|---|
| sku | 4H330C-08 |
| Position | 5-port 3-position |
| Port Size | PT1/4 |
