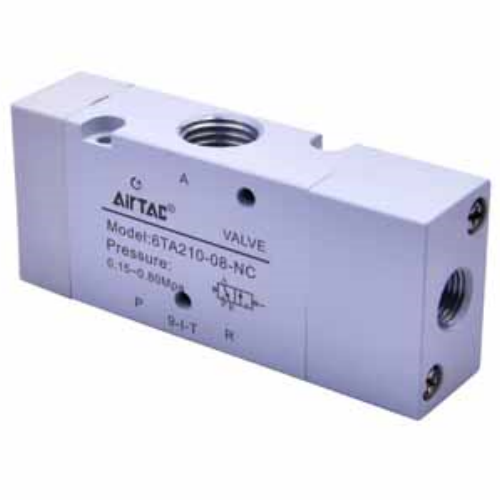

Airtac 6TA Pneumatic Control Valve 6TA22008
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Compatible with base-mounted integrated valve manifolds, optimizing spatial efficiency in system layouts.
Classification: Air Control Valve | Brand: Airtac | Series: 6TA
AirTAC 6TA22008 Pneumatic Control Valve Technical Details
- Model: 6TA22008 (Manual Reset Type)
- Valve type: 2-position 3-way, normally closed
- Port configuration: 1/4" BSPP (G1/4)
- Operating pressure range: 0.05–1.0 MPa
- Maximum flow rate: 850 L/min (Cv=1.2)
- Actuation method: Mechanical lever with lockable position
- Body material: Die-cast aluminum alloy (anodized finish)
- Seal material: HNBR (Hydrogenated Nitrile) for high temp resistance
- Ambient temperature range: -10℃ to 80℃ (with dry air)
- Weight: 320g ±5%
- Dimensions: 78mm(L) × 42mm(W) × 68mm(H)
- Port thread depth: 12mm (minimum engagement)
- Hysteresis: ≤0.02 MPa
- Response time: ≤0.3s (at 0.5 MPa)
Robust manual override valve designed for emergency shutdown and maintenance operations. Features double-seal structure with dust-proof mechanism and visual position indicator. The ergonomic lever allows single-finger operation with positive tactile feedback, meeting ISO 13849 safety requirements for machinery.
- Emergency stop circuits in press machinery
- Manual bypass control in automated production lines
- Safety interlocks for robotic work cells
- Pneumatic system maintenance isolation
- Washdown environments in food processing equipment
Installation requirements:
Must be mounted with actuation lever facing accessible direction.
Apply thread sealant (PTFE tape recommended) on male threads only.
Maximum torque for port connections: 12 N·m.
Requires monthly lubrication of pivot point with ISO VG32 pneumatic oil.
| Property | Property Value |
|---|---|
| sku | 6TA22008 |
| Initial Position | Normally Closed |
| Port Size | PT1/4 |
