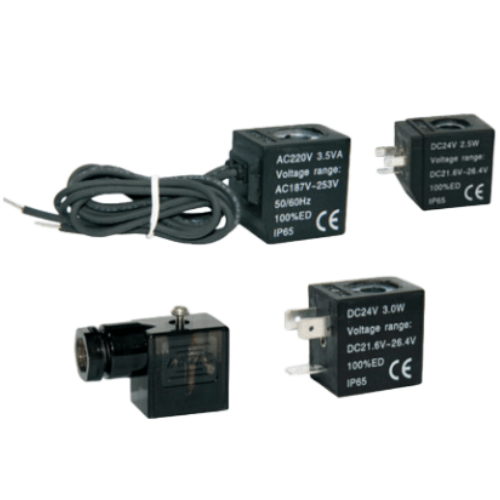

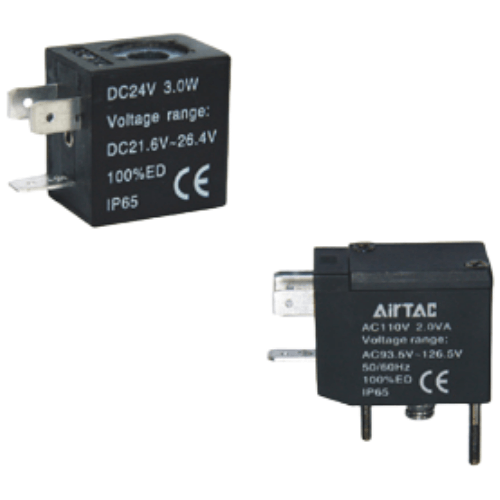

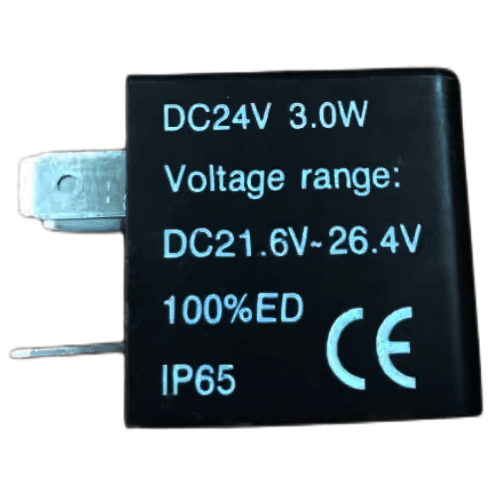

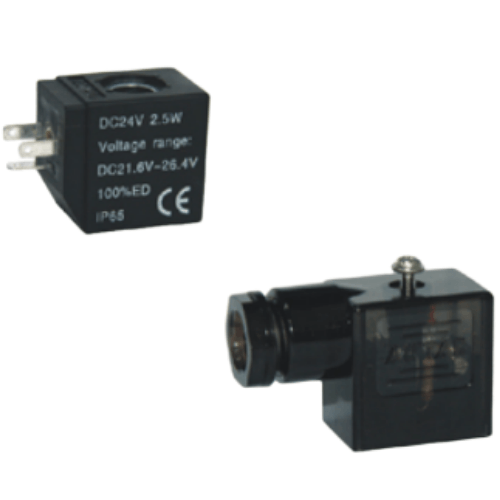

Airtac CDA Standard Solenoid Coil CDA092A
Category: Solenoid Valve Coils , Brand: AirTAC , Series: CDA
AirTAC CDA092A Standard Coil Technical Details
- Model: CDA092A
- Type: DIN-standard solenoid coil (Class F insulation)
- Compatible valve series: AC/AD/AP series solenoid valves
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 2.5W (DC), 3.5VA (AC)
- Insulation resistance: ≥100MΩ (500VDC megger test)
- Temperature range: -20℃ to +120℃ (ambient)
- Protection rating: IP65 (coil housing)
- Lead wire length: 300mm standard (PVC insulated)
- Connector type: DIN43650 Form A compatible
- Housing material: Glass-filled PBT (UL94 V-0 rated)
- Weight: 185g ±5g
- Dimensions: 38mm(W) × 42mm(H) × 27mm(D)
High-performance electromagnetic coil designed for continuous duty cycles, featuring overcurrent protection and vibration-resistant construction. The epoxy-encapsulated winding ensures moisture resistance, while the integrated thermal fuse prevents burnout during voltage spikes. Compatible with multiple valve configurations through standardized mounting interfaces.
- Industrial automation control panels
- Plastic injection molding machines
- Textile machinery pneumatic systems
- Semiconductor manufacturing equipment
- Automated packaging line actuators
Installation guidelines:
Ensure proper alignment with valve stem (max 0.5mm offset tolerance).
Maintain minimum 15mm clearance from adjacent components for heat dissipation.
Use M4 mounting screws with 0.4-0.6Nm torque.
Avoid bending lead wires within 10mm of housing entry point.
| Property | Property Value |
|---|---|
| sku | CDA092A |
| Standard Voltage | AC220V |
| Coil Inner Diameter | 9.0mm |
