Airtac CDA Standard Solenoid Coil CDA092F
$9.27
Regular price
$16.77
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CDA092F
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Solenoid coils are constructed based on the principle of electromagnetic fields generated through conductive current. By arranging the conductor in a helical winding configuration, the magnetic field intensity is amplified, achieving maximum magnetic field intensity within minimal spatial requirements. The implementation of enamel-insulated winding wire instead of conventional conductors further optimizes spatial efficiency.
Category: Solenoid Valve Coils , Brand: AirTAC , Series: CDA
Installation guidelines:
Ensure coil lead wires maintain minimum 50mm clearance from moving parts.
For parallel mounting, maintain 15mm minimum spacing between adjacent coils
to prevent magnetic interference. Use M4 mounting screws with 0.4-0.5Nm torque.
Category: Solenoid Valve Coils , Brand: AirTAC , Series: CDA

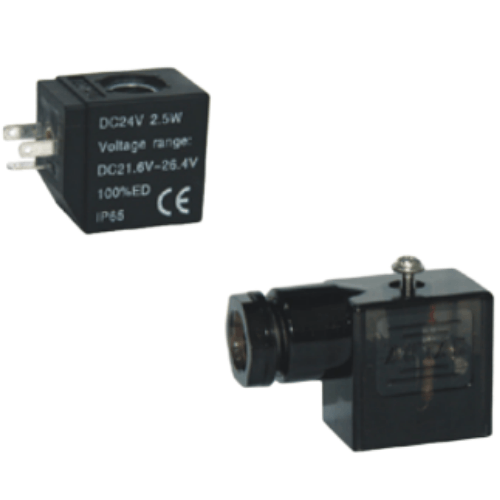

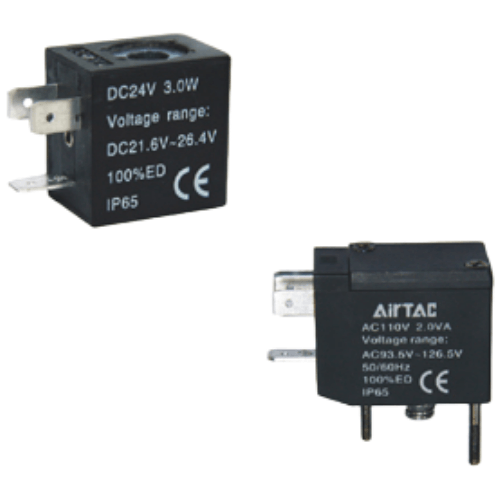

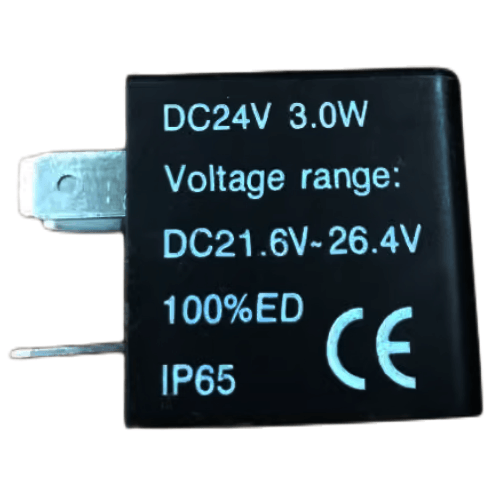

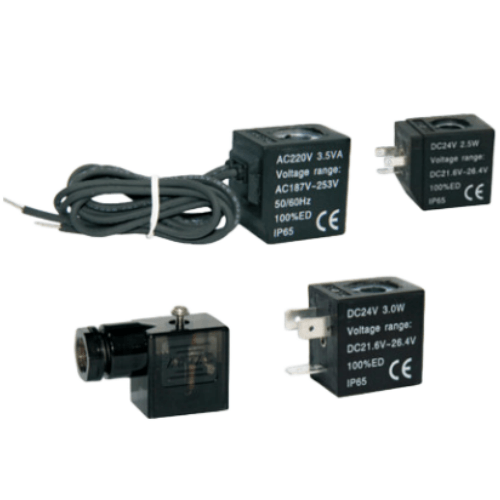

AirTAC CDA092F Standard Coil Technical Details
- Model: CDA092F
- Type: DIN-standard solenoid coil (24VDC/AC versions)
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 2.2W (DC) / 3.5VA (AC)
- Insulation class: Class F (155℃)
- Protection rating: IP65 (dustproof & water jet resistant)
- Housing material: UL94 V-0 flame-retardant PBT
- Coil wire: High-temperature resistant enameled copper
- Terminal type: DIN43650 Form A (standard lead wire length 200mm)
- Compatible valves: Fits AirTAC 4V/5V series valves with 9mm spool diameter
- Temperature range: -20℃ to +120℃ (ambient)
- Duty cycle: 100% ED (continuous operation capable)
- Weight: 112g ±3g
- Dimensions: 32mm(W) × 40mm(H) × 28mm(D)
Industrial-grade solenoid coil featuring anti-vibration structure with epoxy resin encapsulation. The optimized magnetic circuit design ensures stable actuation force even under voltage fluctuations (±10% tolerance). Includes built-in surge protection diode for DC models.
Typical Applications:
- Automated assembly line valve clusters
- Plastic injection molding machine hydraulics
- CNC machine tool pneumatic systems
- Food processing equipment (oil & moisture resistant version available)
- Elevator brake control systems
Installation guidelines:
Ensure coil lead wires maintain minimum 50mm clearance from moving parts.
For parallel mounting, maintain 15mm minimum spacing between adjacent coils
to prevent magnetic interference. Use M4 mounting screws with 0.4-0.5Nm torque.
| Property | Property Value |
|---|---|
| sku | CDA092F |
| Standard Voltage | DC12V |
| Coil Inner Diameter | 9.0mm |
