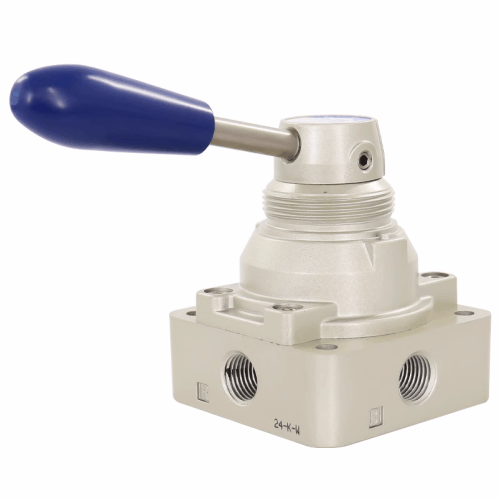

Airtac 4HV Manual Rotary Valve 4HV21008L
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV21008L Manual Rotary Valve Technical Details
- Model: 4HV21008L
- Type: 4-port 3-position manual rotary valve (L-type flow path)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 1,200 L/min (ANR)
- Rotation torque: ≤1.5 N·m
- Body material: Die-cast aluminum alloy (anodized finish)
- Seal material: HNBR rubber (high oil resistance)
- Temperature range: -10℃ to 80℃
- Weight: 480g ±5%
- Dimensions: 72mm(L) × 52mm(W) × 84mm(H)
- Mounting pattern: ISO 5599/1 standard
- Position indication: Mechanical detent with visual arrow marker
Heavy-duty manual override valve with 90° rotation mechanism, featuring positive center position locking and smooth operation. Designed for emergency bypass control or maintenance override in automated systems. Includes dust-resistant shaft seals and corrosion-resistant plating for harsh environments.
- Production line emergency stop systems
- Hydraulic press safety override control
- Plastic injection molding machine maintenance
- Pneumatic conveyor system manual diversion
- Test bench pressure regulation
Operation guidance:
Apply firm rotational force until audible click confirms position engagement.
Lubricate shaft quarterly with ISO VG32 hydraulic oil. Avoid side-loading
during operation to prevent seal deformation.
| Property | Property Value |
|---|---|
| sku | 4HV21008L |
| Position | 4-way 2-position |
| Port Size | PT1/4 |
