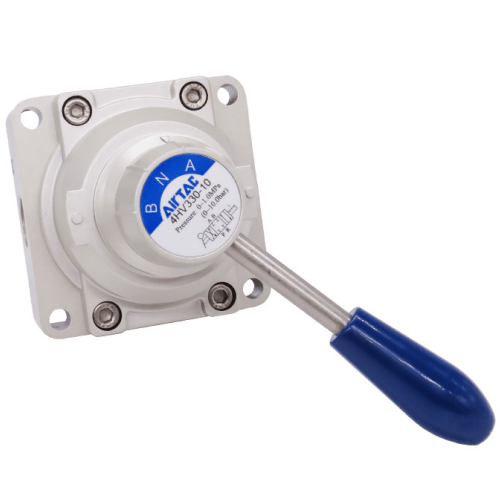

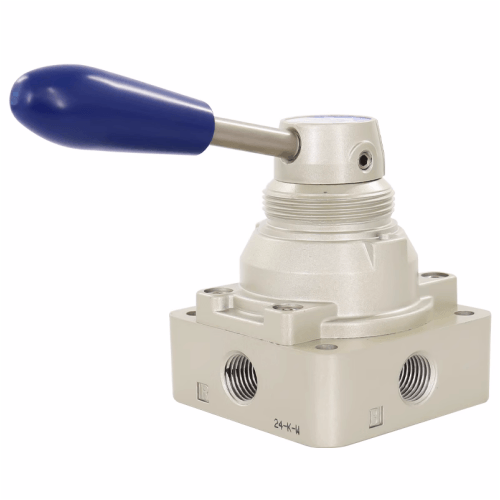

Airtac 4HV Manual Rotary Valve 4HV23006L
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV23006L Manual Rotary Valve Technical Details
- Model: 4HV23006L
- Type: 4-way/3-position manual rotary valve (closed center)
- Port size: PT1/4 (G1/4 equivalent)
- Thread standard: ISO 228 (BSPP)
- Operating pressure: 0.2–1.0 MPa
- Max flow rate: 850 L/min (ANR)
- Valve body material: Reinforced nylon (PA66+GF)
- Seal material: NBR (nitrile rubber)
- Operating temperature: -10℃ to 80℃ (with silicone seals optional for -20℃)
- Actuation torque: ≤1.2 N·m
- Weight: 385g ±5g
- Dimensions: 72mm(L) × 45mm(W) × 85mm(H) (excluding handle)
- Port configuration: 4 ports (P: pressure, A/B: actuators, R: exhaust)
- Mounting: Direct pipe mounting with 35mm panel cutout option
- Position indicator: Mechanical click stops with position markings
Manual override valve with positive center shut-off, featuring tactile position feedback and corrosion-resistant construction. The 45° rotary handle provides precise directional control in pneumatic systems. Integrated O-ring groove design prevents seal extrusion under high cyclic loads.
- Emergency override in automated production lines
- Manual mode switching for clamping fixtures
- Pneumatic training equipment controls
- Mobile machinery requiring manual air flow diversion
- Safety lockout systems in press machines
Operation guidance:
Rotate handle through 3 distinct positions (0°-45°-90°) with audible click confirmation.
Lubricate spindle quarterly using ISO VG32 hydraulic oil. Avoid side-loading the actuator shaft.
| Property | Property Value |
|---|---|
| sku | 4HV23006L |
| Position | 4-way, 3-position |
| Port Size | PT1/8 |
