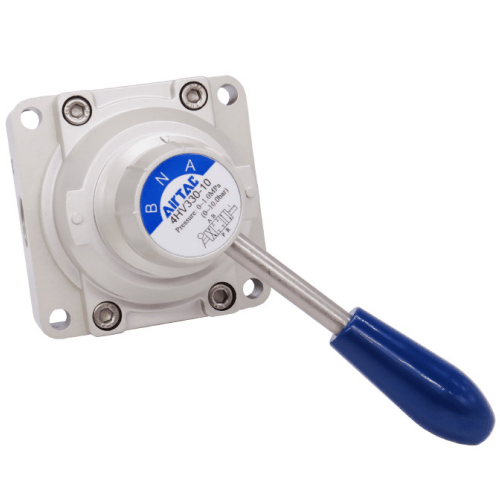

Airtac 4HV Manual Rotary Valve 4HV23008L
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV23008L Manual Rotary Valve Technical Details
- Model: 4HV23008L
- Type: 3-position manual rotary valve (Lever operated)
- Port configuration: 4 ports (P, A, B, R)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.2–1.0 MPa
- Max flow rate: 850 L/min (ANR)
- Body material: Die-cast aluminum alloy (anodized finish)
- Seal material: HNBR rubber (heat/oil resistant)
- Operating temperature: -10℃ to 80℃
- Weight: 1.2 kg ±5%
- Dimensions: 96mm(L) × 72mm(W) × 84mm(H)
- Mounting style: Panel mount (with M5 mounting holes)
- Position indicator: Dual-color rotary knob (green/red)
- Protection rating: IP54 (dust/water splashes)
Industrial-grade manual directional control valve with positive detent mechanism for precise position locking. Features 135° rotation angle with tactile feedback, designed for high-flow pneumatic systems requiring manual override capability. Maintenance-free design with double-sealing structure prevents internal leakage.
- Production line emergency stop systems
- Hydraulic press mode selection
- Material handling equipment bypass control
- Test bench pneumatic circuit configuration
- Agricultural machinery manual override systems
Installation guidelines:
Apply thread sealant (PTFE tape recommended) on port connections.
Ensure lever rotates freely with ≥50mm clearance. Lubricate pivot point
with ISO VG32 hydraulic oil annually.
| Property | Property Value |
|---|---|
| sku | 4HV23008L |
| Position | 4-way, 3-position |
| Port Size | PT1/4 |
